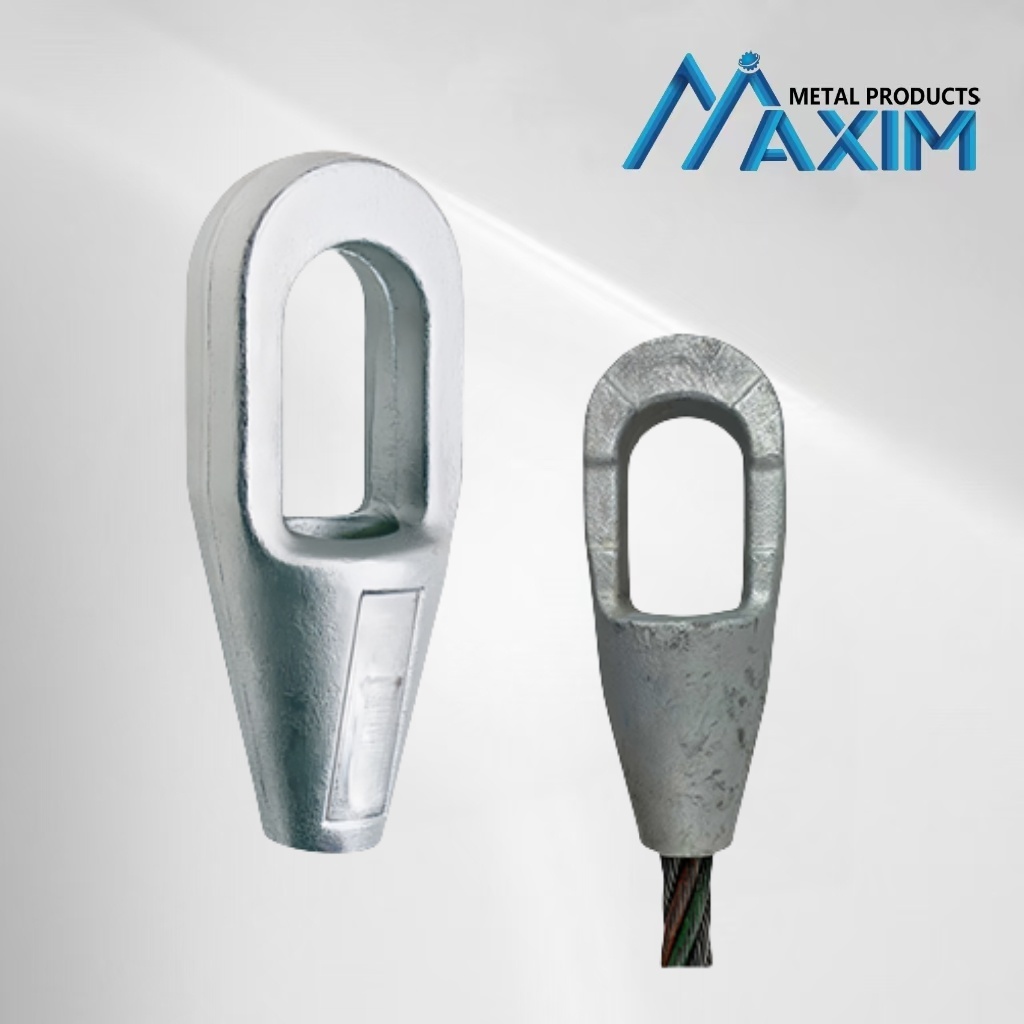

Name: Closed Type Wire Rope Spelter Socket
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

Description

Alloy Steel 100% Breaking Load Closed Spelter Socket For Wire Ropes End

Closed type spelter socket steel wire rope sling for marine towing with customized services.Galvanized us type G416 grooved open type socket.

Product detail：
Surface:Hot Dip Galvanized,Zinc Plated,Painted Coating
Material: Carbon Steel/Alloy Steel
Process: Drop forged
Packing: Carton, Pallet,Bag or according to customers’requirements

Feature：

Forged steel sockets thru 1-1/2", cast alloy steel 1-5/8" and up
All sockets 1-5/8" and larger are magnetic particle inspected and ultrasonic inspected
Can be furnished proof-tested with certificates (additional charges apply, inquire at time of order)
Spelter socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope--ratings are based on recommended use with 6x7, 6x19 or 6x37 IPS, XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope
Cable constructed with minimal number of strands (e.g., 1x7 Strand) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is greater

Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope. Ratings are based on the recommended use with 6 x 7, 6 x 19 or 6 x 37, IPS or XIP (EIP) , XXIP (EEIP), RRL, FC or IWRC wire rope. Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is the greater.
NOTICE: All cast steel sockets 1-5/8″ and larger are magnetic particle inspected and ultrasonicinspected. Proof testing available on special order.

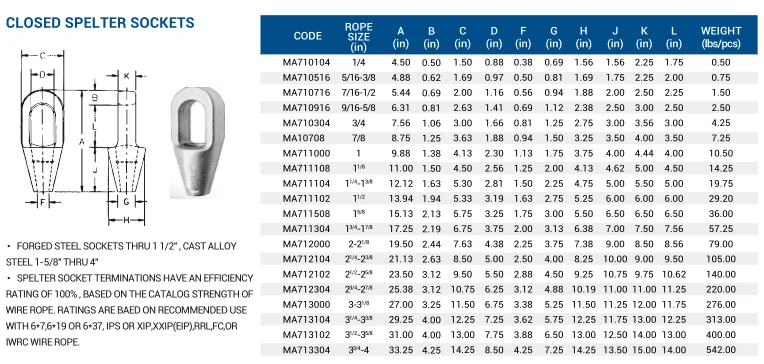

Drawing illustrates one groove used on sockets 1/4″ through 3/4″. Sizes 7/8″ through 1-1/2″ use 2 grooves. Sizes 1-5/8″ and larger use 3 grooves.

CODE	SIZE(in)	WEIGHT(lbs/pcs)
MA710104	1/4	0.50
MA710516	5/16-3/8	0.75
MA710716	7/16-1/2	1.50
