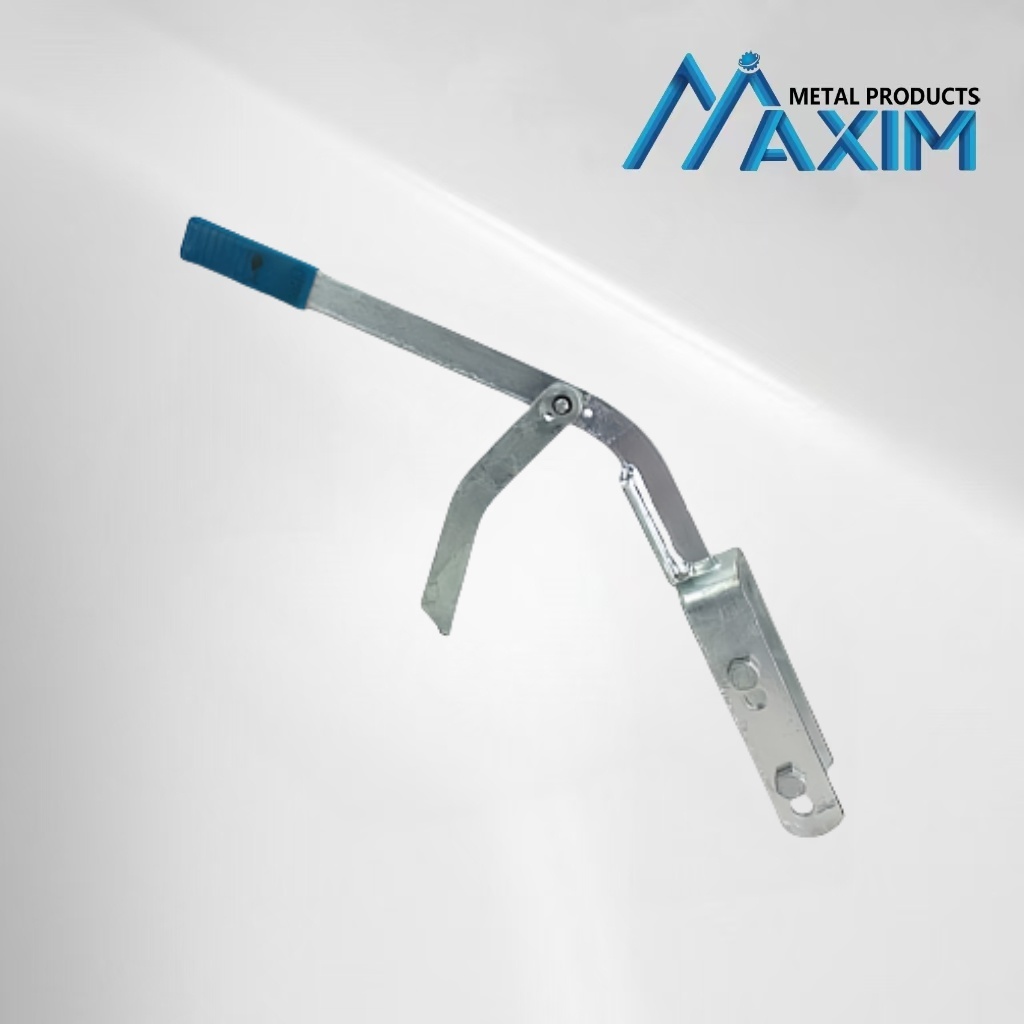

Parking Stop Coupling Anti-slip Mechanical Hand Brake with Chassis
The Trailer Hand Brake cable kit, galvanized body. Used to tension the cable for a mechanical brake system.On trailers between 750 kg and 2000 kg total laden mass, this braking systems that use an override principal are acceptable, as long as they provide adequate braking for the trailer and tow vehicle combination.
The principal of this type of coupling is a sliding shaft attached to the towing hitch ball housing of the coupling, and as the tow vehicle slows down the force of deceleration is passed through the coupling shaft and pushed either on a mechanical linkage for mechanical brakes or acts on a linkage connected to a hydraulic cylinder providing hydraulic pressure to a braking system ,like hydraulic brakes.
This type of coupling is efficient if the ball load is not excessive and when load levelling devices are not used, as these devices impede the smooth operation of the coupling, impeding the braking performance.
A frame sleeve lock trailer coupler installs easily and supports up from 2000 lbs-5000lbs(heavy duty type can be 15000lbs). (5 tons) of cargo with a tongue weight of 700 lbs. The Class trailer coupler fits our 50 in. A frame trailers and couples with a 2 in. diameter ball hitch. Features include a spring loaded collar with lock and pin.
On trailers between 750 kg and 2000 kg total mass, braking systems that use an override principal are acceptable, as long as they provide adequate braking for the trailer and tow vehicle combination. The principal of this type of coupling is a sliding shaft attached to the tow ball housing of the coupling, and as the tow vehicle slows down the force of deceleration is passed through the coupling shaft and pushed either on a mechanical linkage (for mechanical brakes) or acts on a linkage connected to a hydraulic cylinder providing hydraulic pressure to a braking system (hydraulic brakes). This type of coupling is efficient if the ball load is not excessive and when load levelling devices are not used, as these devices impede the smooth operation of the coupling, impeding the braking performance.
Max. load capacity of 5000 lbs. and tongue weight of 700 lbs.
Fits 50 in. A-Frame trailers
Couples with 2 in. diameter ball hitch
Spring loaded collar with lock and pin
Features:
Widely used in trailer conditions and towing conditions
Easier to be connected with trailer chains, pins, trailer locks, A trailer frame, hitch balls, coupling connectors, trailers,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Zinc plating and black or colorful painting can be available.
