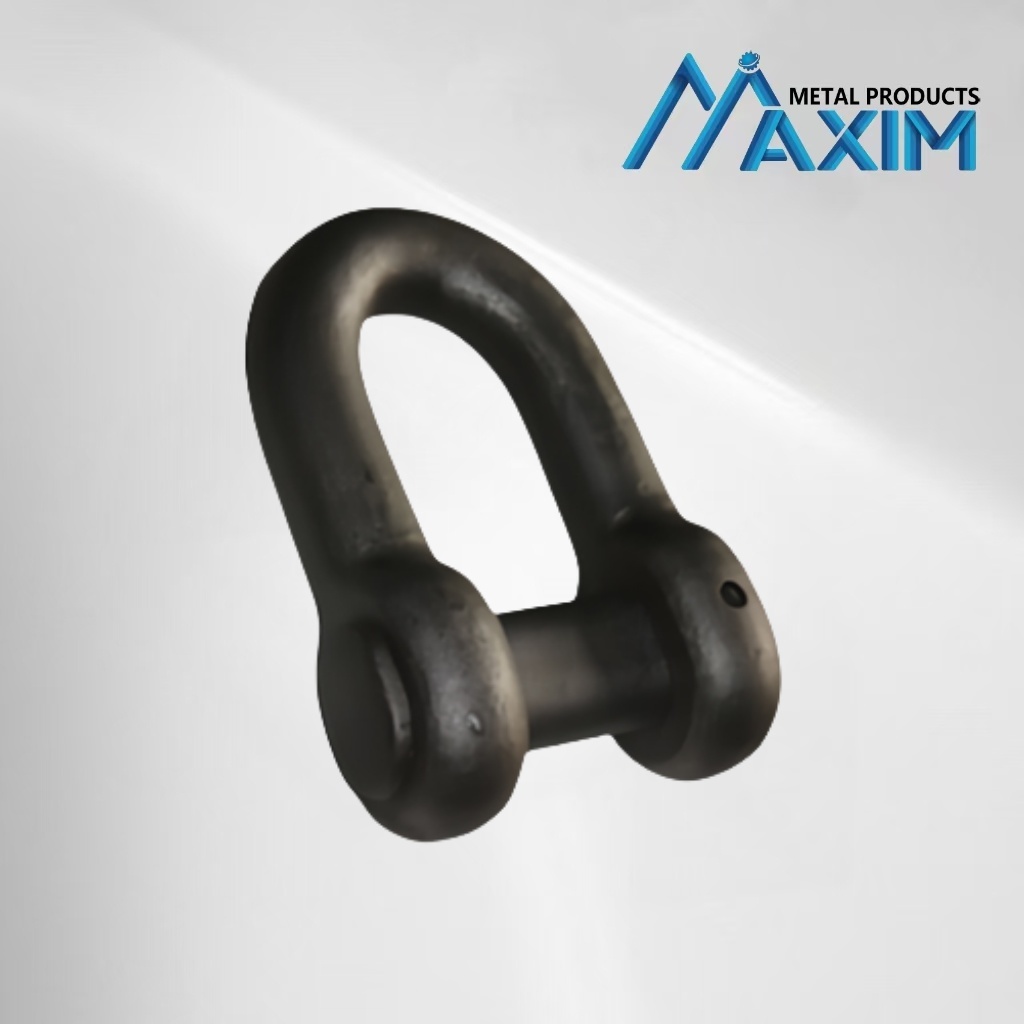

Lugged End Joining Anchor Forelock End Shackle Type D For Mooring ChainForelock shackles are associated fittings for use within stud link anchor chain as a means for connecting the stud link anchor chain to an associated fitting, termination point or in a navigation buoy mooring bridle system. These are index sized to be compatible with each size of stud link anchor chain. The material and heat treatment should be the same as that of the stud link anchor chain that they are fitted to. Classification: L.R.S; B.V; A.B.S. (other classification available upon request).
The shake proof shackle has both heads threaded. The pin will not fall out, but may still be unscrewed from the partially threaded second head. The shake proof shackle pin incorporates an innovative polyurathane ring which enhances the fit of the shackle pin. Once in position the shackle pin will not vibrate loose. The shake proof shackle incorporates the Smart-Lock pin. This pin benefits from a unique locking mechanism. When the ring is threaded into the shackle body the ring acts like a viscous liquid and binds itself to the internal threads in the shackle head.
Specifications:
Type: Forelock End Shackle;
Material: Forged Steel;
Surface: Galvanized or Black Bituminous Paint;
Grade: Grade 2 & Grade 3; Nominal Chain Diameter: 22mm to 40mm;
Proof Load: 200kN to 640kN;
Size: Can be customized;
Packing: Carton or Wooden Case;
Features
1.Grade 1, 2 or Grade 3
2.Material: carbon steel; alloy steel
3.Size: 16mm-122mm
4.Finish:Self-color or Black tarred
5.Treatment: drop forged, cast
6.Certificate.:LR,BV,CCS,GL,RINA,NK,KR and DNV
7. Special specifications and marks can be made according to customers requirments
8. Packing details: Export Standard Packing or As Customer's Required.
