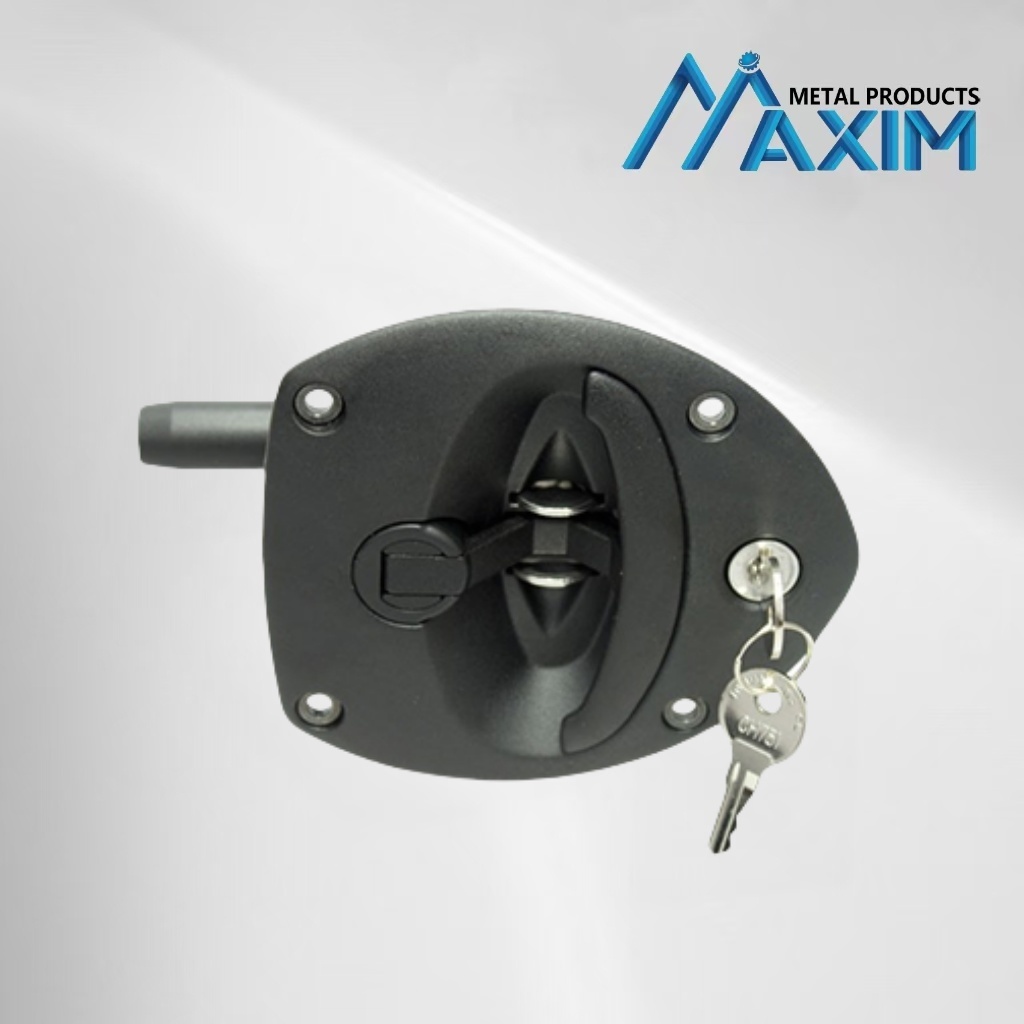

Name: Black T Handle Latch
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

Description

Vector Locking Drop T-Handle Compression Latch Black T Handle Latch

This flush T-handle is available in zinc or stainless steel and has a 4 mm compression stroke. It features two locking systems: a key-locked cylinder and a retractable padlock loop that prevents the handle from being lifted. The handle can be ordered in three turn to open versions: 90° right, 90° left or 180°. Mounted with screws or rivets. Five cam versions are available. To improve sealing against door, add the optional handle-shaped flat gasket. To adapt to other key combinations, choose delivery with unassembled cylinder.

Feature:

Locking compression latch Adjustable cam mechanism Glass fibre reinforced plastic body Zinc handle Additional stainless steel padlock option Supplied with rivets Blanking plate can be supplied on request if you need to cover hole from an existing lock Commonly found on HGV vehicles, horse boxes, trailer, vehicle tool boxes, chassis tool boxes Basic specifications: Dimensions: 130mmx130mmx90mm Weight:0.48kgs Material: GRP reinforced polyamide Cam adjustment Grip range: 15-60mm Supplied with 2 keys

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

Hot Sale Boat Trailer Door Lock Handle Latch Accessories Recessed Plane Lock
size	weight
130mmx130mmx90mm	0.48kg
