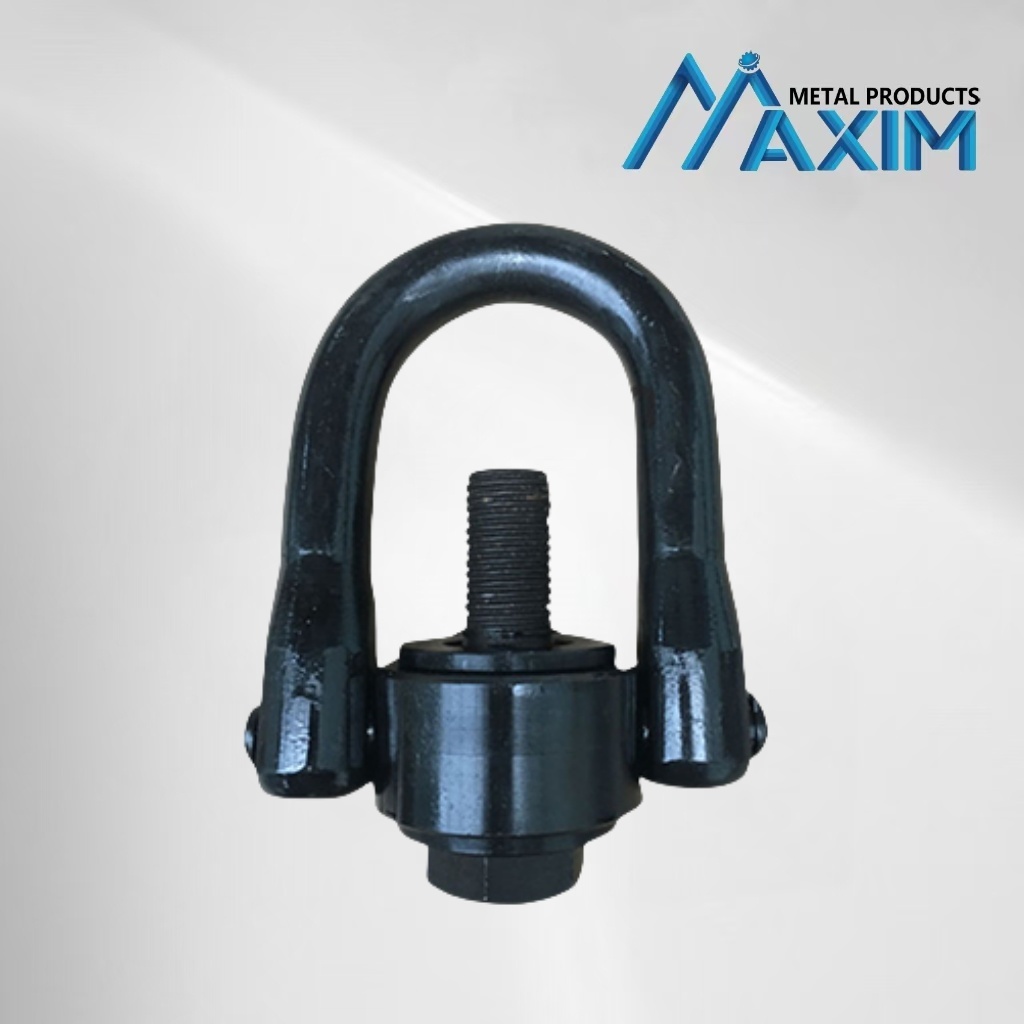

Grade80 Machinery Eye Bolt Black Swivel Hoist Ring
Grade 80 black swivel hoist ring is regular used for lifting ,sling ,trailer ,lashing and load restraint applications. There are different options with different sizes and capacities from M8-M90. Adjustable in optional direction of pull. A plane bolting surface guaranteed. The material to which the lifting point is attached should be adequate strength to withstand forces during lifting without deformation. With captive screw, the thread can be customized to different size, both inch and metric, also short or long.
Not intended to rotate under load Equipped with ball bearing,360°rotation.
Can be loaded in all directions with a safety factor of 4 times;
Tap work piece for hoist ring screw with axis vertical to mounting surface. Work surface should be flat and smooth to provide full 360° flush seating for the bushing flange. (SAFETY NOTE: Some loosening may develop after prolonged service in a permanent installation. It is advisable to periodically re-tighten the mounting screw to maintain the specified torque value.) The use of free fit spacers between the bushing flange and mounting surface is not recommended as this will reduce the safe load rating on angularly applied loads. Hoist Ring must be free to swivel 360° and pivot 180° at all times.Specifications:
1. grade:G80
2.Material:high tensile alloy steel
3.Process:drop forged
4.Surface:powder coated/Electric black
5.Usage:lifting
6.Size:8mm-90mm
Features:
- Also available in Nickel or Cad Plated (Price per Factory Quotation)
- All dimensions approximate —
- Variations do not affect use or safety factor
- 150,000, 200,000, and 250,000 lbs. sizes available
- Long Bar Model
- Recommended Torque Load
- Supplied with socket head cap screw
Highly efficient operation
Excellent tensile strength
Good protection against breakage in all directions
