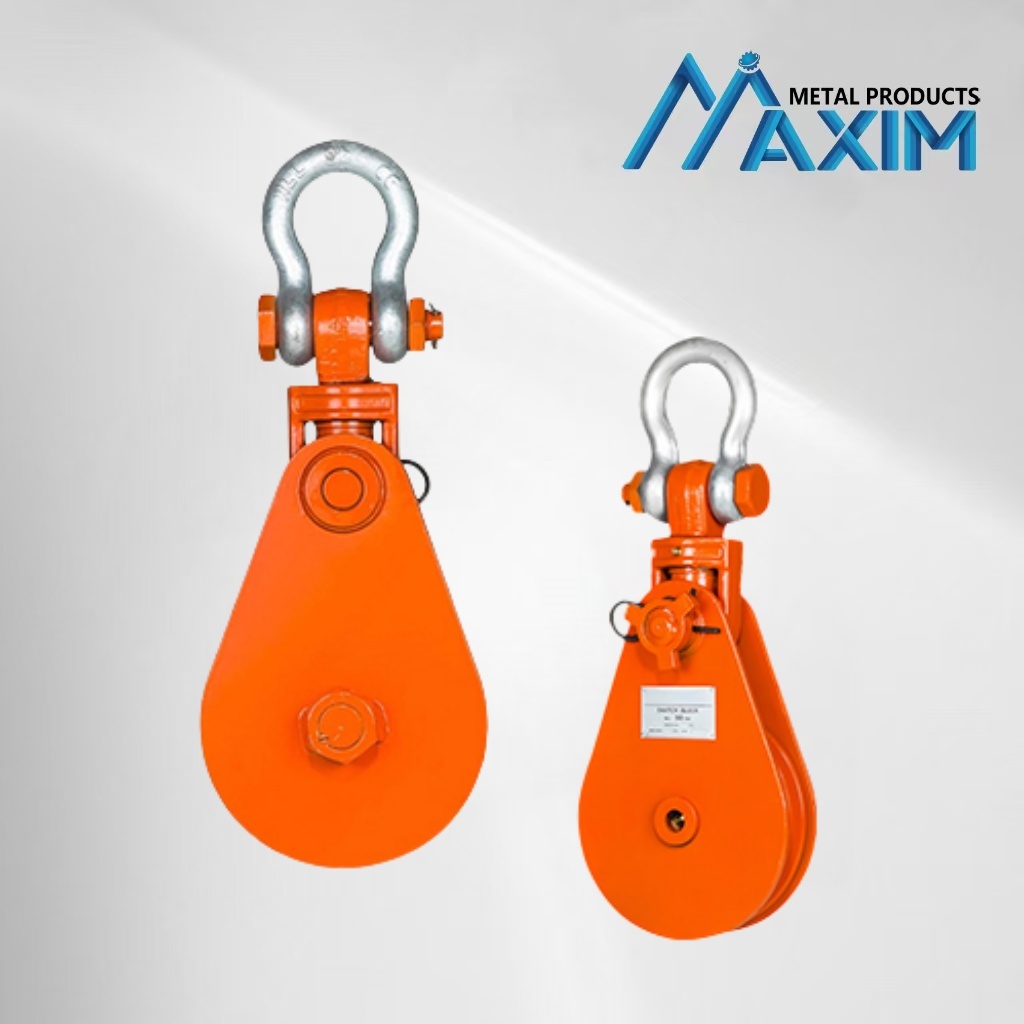

Lifting Snatch Pulley Block With Shackle

Heavy Duty Forged Lifting Snatch Pulley Block With Shackle

This pulley block is forged , with high tensile strength.Plate sided, powder coated,swivel shackle snatch block with chain, 3" diameter sheave grooved for 3/8" wire rope. Sheave is equipped with bronze bushing and grease fitting. Working Load Limit: 2 -15tons. wire rope diameter is 3/8inch to 1 inch, Ultimate block strength is 4 times the working load limit.

Specifications:

Swivel Eye with Screw Pin Shackle/hook
Steel shells with steel sheaves
Drop-forged fittings
Powder coated finish
For wire rope

Advantage:
.Capacity:2T-50T
.Durable powder coated finish
.Shackle type and hook type are available
.Heavy duty permits to perform under extreme condition
.Forged spare parts enhance the quality
.Safety factor:4:1
.CE approved

The capacity at which our products can be safely used has been established through an accredited testing laboratory. This may be defined as the safe working load limit, or cable rope pulley block load calculation, or a force calculator. The safe working load limit (mechanical advantage) is the maximum load in pounds which should ever be applied, and when the load is applied uniformly and in direct tension to a straight segment of wire rope. By changing the degree of angle between lead and load angle, this also affects the stress on the block. The stress on the eye may be decreased by increasing the angle between the load and the lead angle. See chart and illustration below.

Stress Formula: (L x A = S)
Load in pounds (L) multiplied by the Angle of pull (A) equals the stress generated in lbs on the Block (S).
Safe Work Load Limit: This is the maximum load (in lbs.) which can be applied to the Block and which has been established (Load Capacity).
