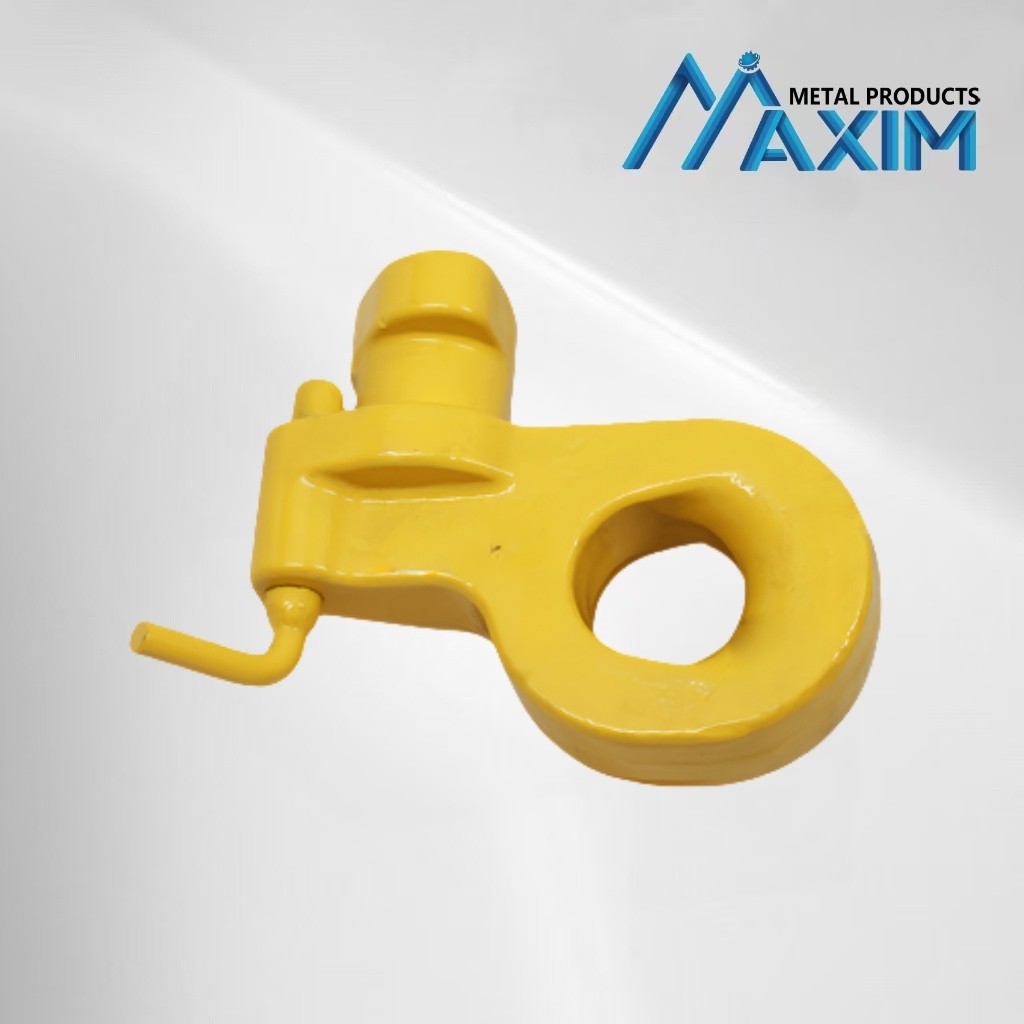

Heavy Duty Forged G80 Eye Type CLB Container Bottom Side Lifting Lug
These CLB bottom&side container lifting lugs are supplied in sets of 4 and are available in with a total lifting capacity of up to 50 tonnes. The CLT lugs serve as flexible lashing points container corners for the transportation of containers.
The CLB model is mounted horizontally to the side of the container at either the top or the bottom fixing holes. This model has a spring loaded bolt to prevent accidental release
- Mounted at the side of the container, upper or lower
- ISO Containers casting corners
- Spring-loaded bolt prevents accidental release.
- Designed for use with a lifting beam, spreader frame or alike. Not suitable for use with a 4 leg chain sling.
- Lugs are left and right handed (2 x left, 2 x right per set of 4).
container side bottom lifting is especially made for lifting containers from the lower fitting points.
Large eye for easy connection to wire rope or chain legs.
Full traceability
Proof tested and certified
Instructions
- Lug is offered up to slot.
- Lug is entered into slot.
- Lug is turned to position.
- Spring bolt is turned until fully engaged.
- Lug is now in lifting position.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
