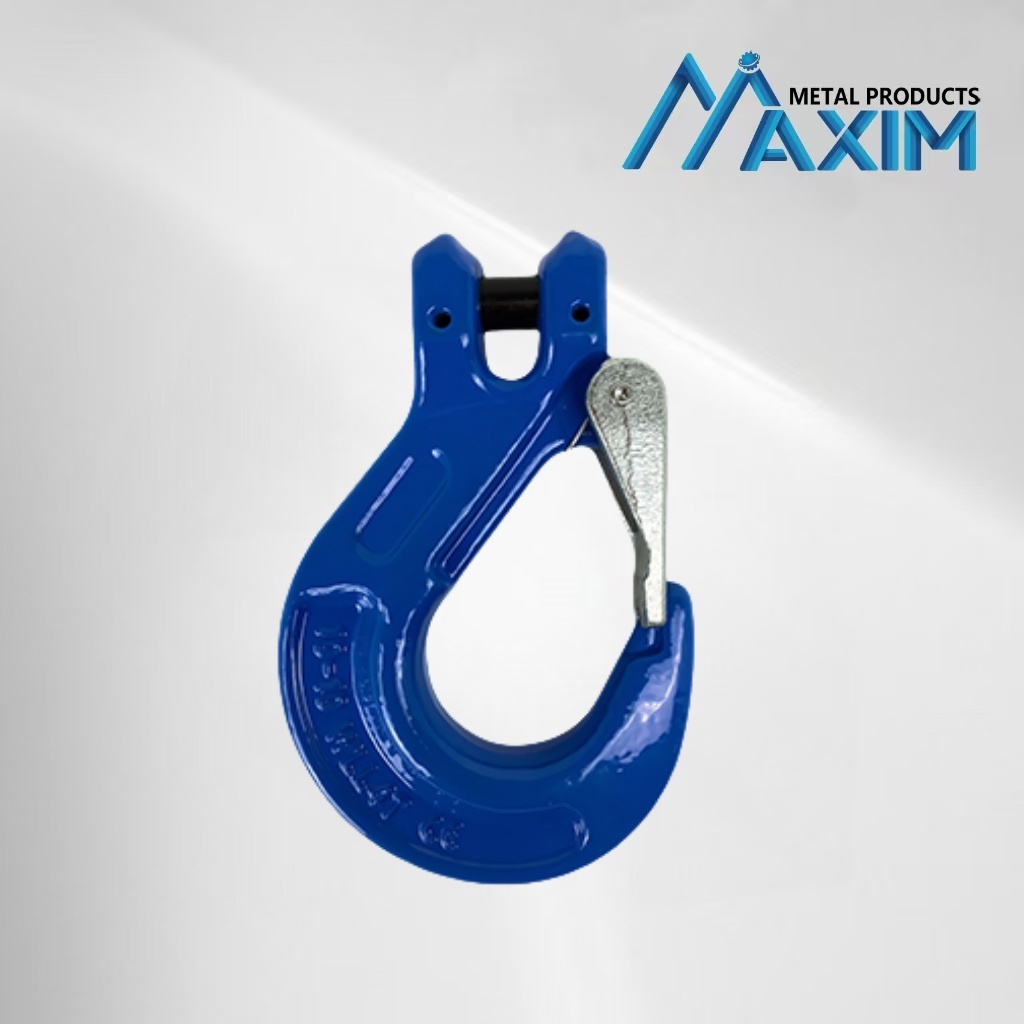

Heavy Duty Grade 100 Forged Alloy Steel Clevis Sling Hook with Latch
Grade 100 Forged Alloy Steel Clevis Sling Hook with Latch Sourced from the highest quality material and rigorously tested, the Grade 100 Forged Alloy Steel Clevis Sling Hook with Latch eliminates the need for a connecting link as it connects directly to the chain.
It is manufactured with a spring safety catch that locks into the tip of the hook, providing increased protection against lateral shifts.
This product has a rated W.L.L but is subject to the correct welding procedure being carried out by a suitably qualified welder.
This Lifting Point is ideally suitable for lifting and lashing applications such as excavators, low loaders, lifting beams, etc.....Widely used on farm machinery, trucks, steel hulled marine vessels material handling equipment.
Feasure:
- Quenched and Tempered Alloy Steel.
- At least 25% greater WLL than traditional G80 products.
- Manufactured in accordance with EN 1677
- Proof Load tested at 2.5 times the WLL with
- Design Factor 4:1.
- Fatigue rated to 20,000 cycles at 1.5 times the WLL.
- Tempering temperature 400°C
- Magnaflux crack detection is performed 100% on each batch.
- Heat treated and painted blue.
Pls Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead, and check the working condition at times.
