lugs are mounted horizontally to the sides of the container and are spring loaded to prevent accidental release.

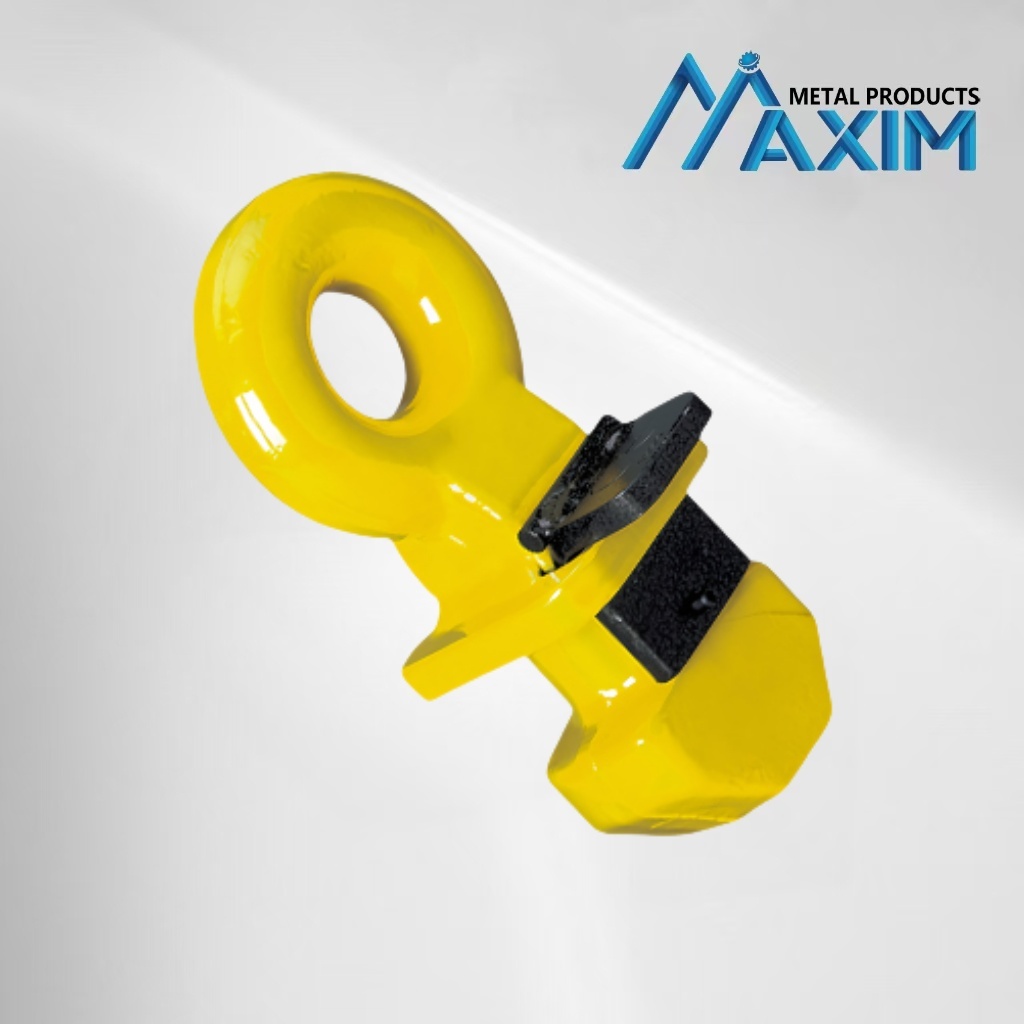

There are a few different varieties of container lugs for lifting and moving containers. CLT container lifting lugs attach to the corners of shipping containers from the top, while CLB container lifting lugs attach to the corners of shipping containers from the side. Both CLT and CLB container lifting lugs are sold in sets of 4 and have a total lifting capacity of up to 61 tons.
Features:
Easy Installation and removal, simply insert and turn.
Equipped with a locking pin to prevent slipping
Easy to place at the top of the Corner Castings
How to use a Container Lifting Lug? Insert each lifting lug from above into the four openings of the Top Camlock of the shipping container, press the safety angle upward, and then rotate the lifting lug 90° in any direction. Ensure the correct positioning of the load-lifting attachment by fully pressing down the safety pin until it reaches the container's opening to prevent the lug from turning and unlatching. Conduct your transport operation. Once transport is complete, remove the lifting lugs by lifting the safety pin on the load lifting attachment to unlatch the lug, rotate it 90° in any direction, and then pull it out of the corner opening of the container.
Specifications:
Weight: 8kg
Color: Yellow
Material: Steel
Eye Diameter: 1-3/4”
1 Piece Working Load Limit: 30,864 lbs
4 Piece Set Working Load Limit: 123,459 lbs
Finish: polished
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
