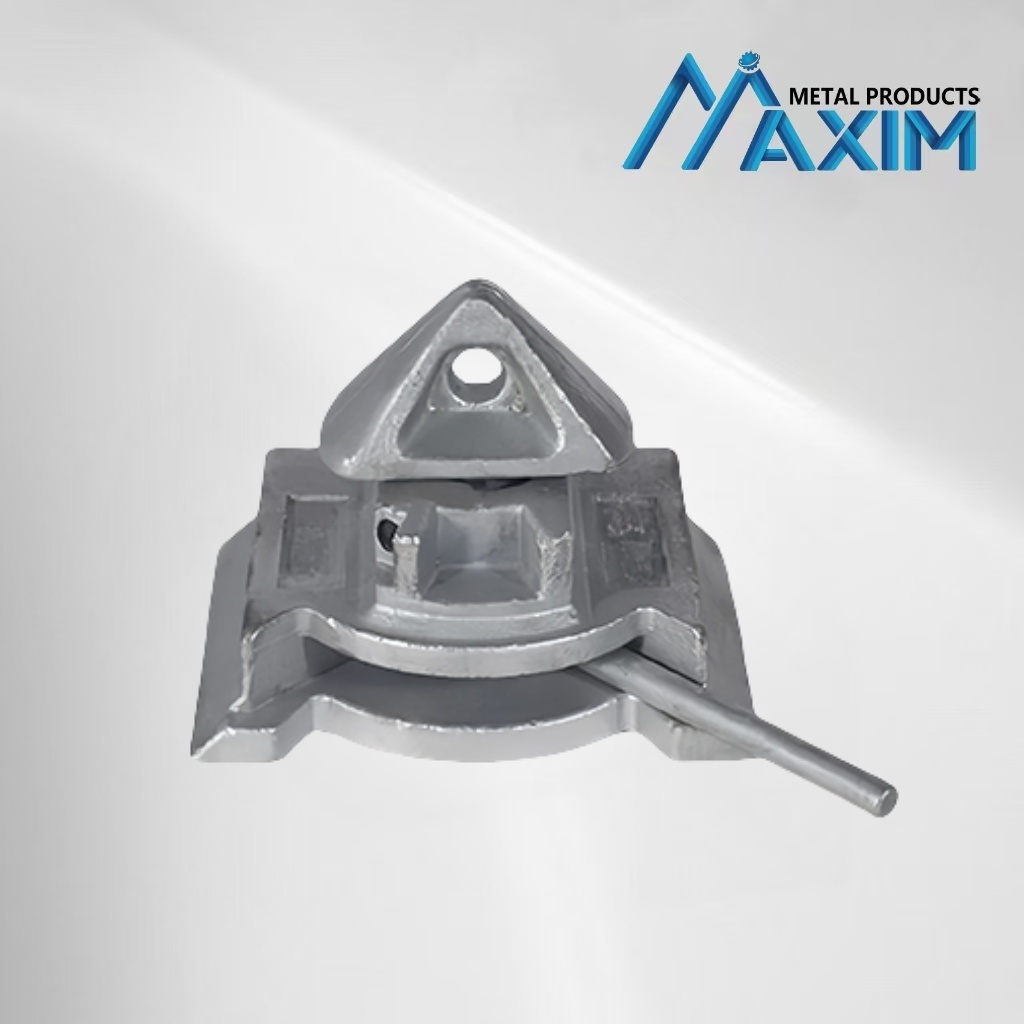

Handlocking Sea Rail Shipping Container Manual Dovetail Base twistlock
Dovetail Shipping Container Twist Lock – when used with the Base Plate, they anchor a container to a footing or foundation, giving added stability.
Application Scenarios: A boltable dovetail twist lock is used to securely join stacked shipping containers or secure containers to cargo ships, trucks, or railway cars, preventing them from shifting during transport.
Operation: Left hand to lock, Right hand to unlock. Easy to operate with a manual locking handle.
Design Principle: The Dovetail Design term refers to the shape of the locking mechanism, which resembles the dovetail joint used in woodworking. The Dovetail Twistlock is designed to lock a container from the bottom. The twist lock mechanism involves rotating one component relative to the other to engage or disengage the locking mechanism. To make this twistlock removable, it can be combined with the matching deck socket.
Surface Treatment: The product is made of high-quality galvanized steel and is therefore protected against weather influences and seawater.
|
SPECIFICATION FOR container bottom dovetail twistlock
|
|
MATERIAL
|
HIGH QUALITY STEEL
|
|
WEIGHT
|
9.9LBS
|
|
MAIN BREAKING LOAD
|
500kn
|
|
FINISH
|
HOT DIP GALVANIZED
|
