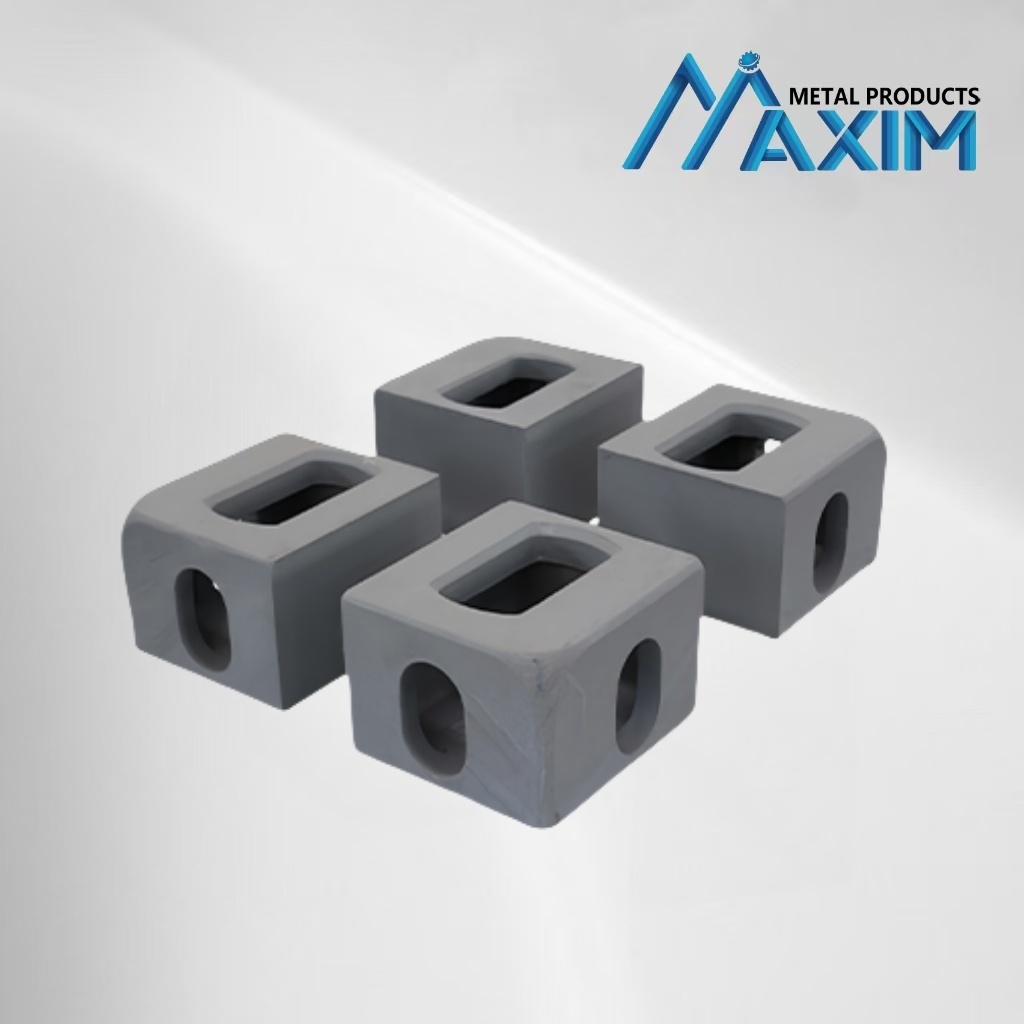

High Quality ISO1161 Steel Casting Fitting Shipping Container Corner
Container casting fittings comes in this complete set of 8 pieces.
200 lbs per set or 25 lbs. each
Castings are stamped Bottom Left ~BL, Bottom Right ~BR, Top Left ~TL, Top Right ~ TR
It is especially made for lifting containers from the lower fitting points.
Large eye for easy connection to lifting lugs, container twistlocks,container eyes, container lashing bars,bridge , etc.
Full traceability
Proof tested and certified
it should always be used with, either a 2 or 4 point spreader beam / spreader bar.It is available as a straight and turned 45 degrees. To avoid the risk of disengagement during use, a tolerance of +- 15 degrees from nominal should be adhered to.We recommend that you use a spreader and lift from the bottom when the container is loaded as this is where the container is strongest.
If a two point connection spreader is used the WLL is to be reduced due to the angles.
A 4-leg sling is also possible to use but then you need to:
Make sure the hooks and chains can move free to the intended load angles without obstruction.
Only lift in the bottom corners.
Features:
Widely used in container lifting conditions
Easier to be connected with container twistlock, container hooks, container lugs,etc
Stronger performance during working
Specifications:
Process: casting
Material: steel
Finish: hot dip galv
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
