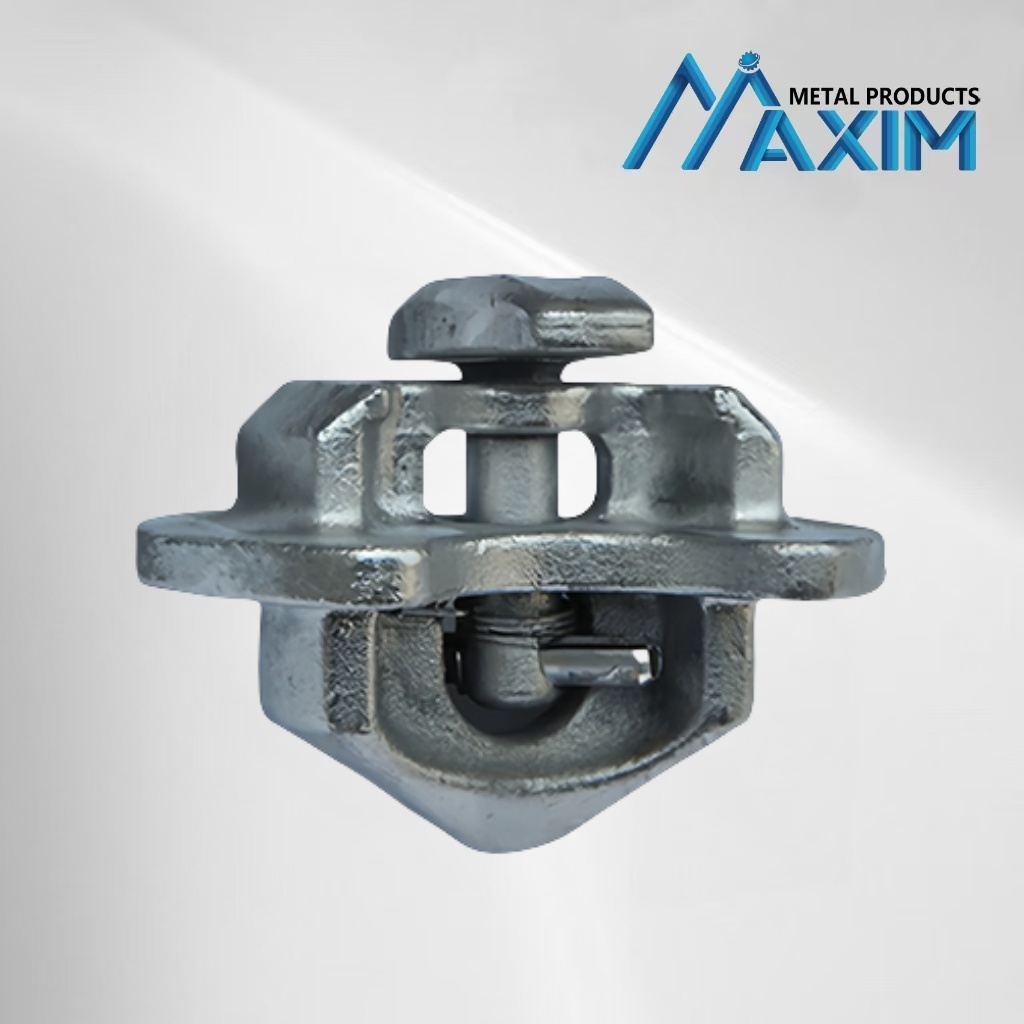

Container Bottom Single Stacking Cone For Marine Shipment
The self-hanging stacker is used to intercept the shearing forces of containers and are mostly placed in between 20ft containers in cell guides. Due to the absence of the wings the two containers rest flush on the corner casting.
Feature：
- Our Container Hanging Stacker is constructed using durable casting steel material, ensuring strength and resilience.
- It is finished with a hot dip galvanized coating, providing excellent protection against corrosion.
- With a weight of 1.5kg, it offers a lightweight solution for hanging applications.
- The Container Hanging Stacker has a maximum breaking load of 420KN in shear and 800KN in compression, making it capable of withstanding substantial forces.
Specification:
Container Hanging Stacker
Material: Casting steel
Finish: Hot dip galvanised
Weight: 1.5kg
M.B.L. Shear: 420KN
M.B.L. Compression: 800KN
