Container Side Tie Down Twist Lock

Storage container tie-down brackets allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position. Made from powder-coated steel. Available in sets of 2.
  • Container Side Tie Down Twist Lock

Description

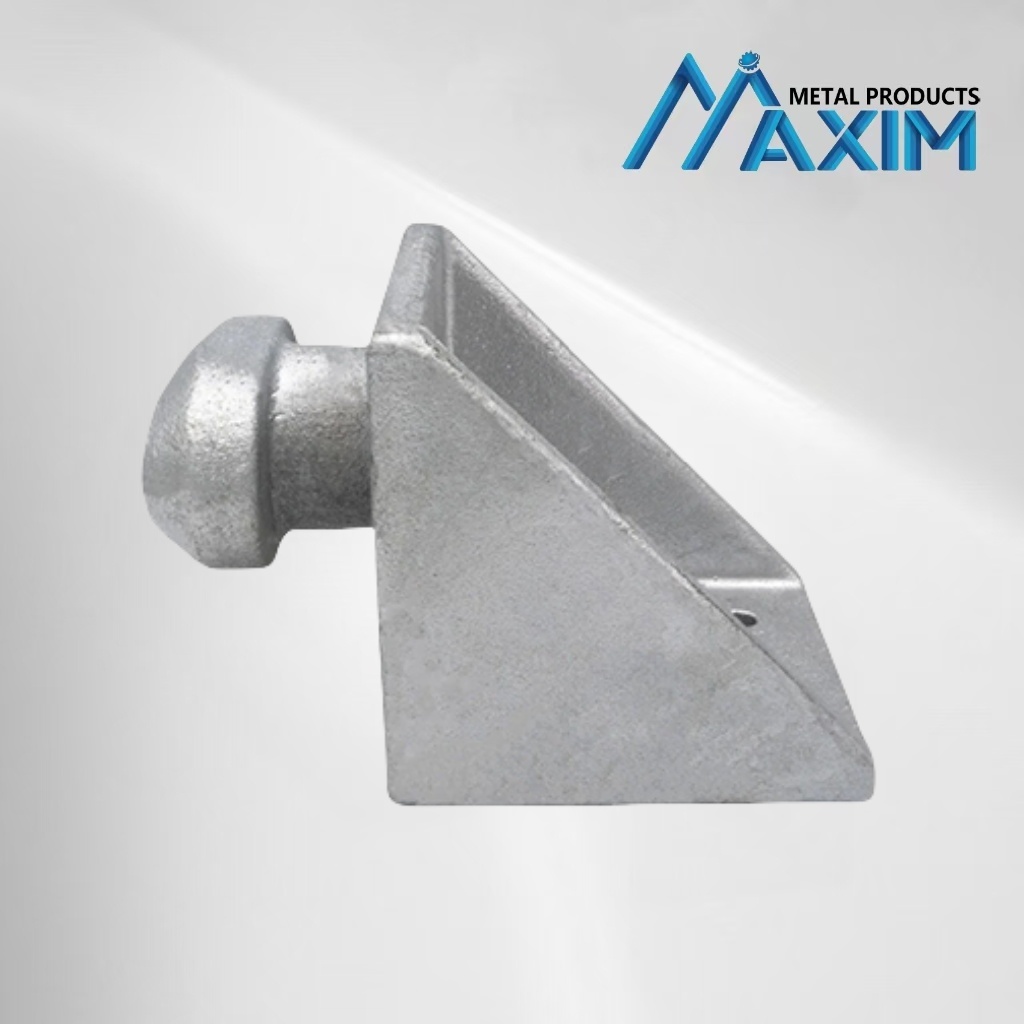

Galvanized Steel Shipping Container Side Tie Down Twist Lock

Storage container tie-down brackets allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position. With your container already in place, insert the container tie down into side of the ISO container corner casting then rotate so the bolt hole is toward the ground.
Specification:
MBL Tension: 45000 LBF
Container Side Twist Lock
Material: Galvanized Steel Structural
Notes: Weight: 6.17 LBS SWL
Tension: 9000 LBF SWL
Shear: 4500 LBF MBL
Tension: 45000 LBF
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
Galvanized Steel Shipping Container Side Tie Down Twist Lock
M.B.L Tension
weight
45000 LBF
6.17LBS
