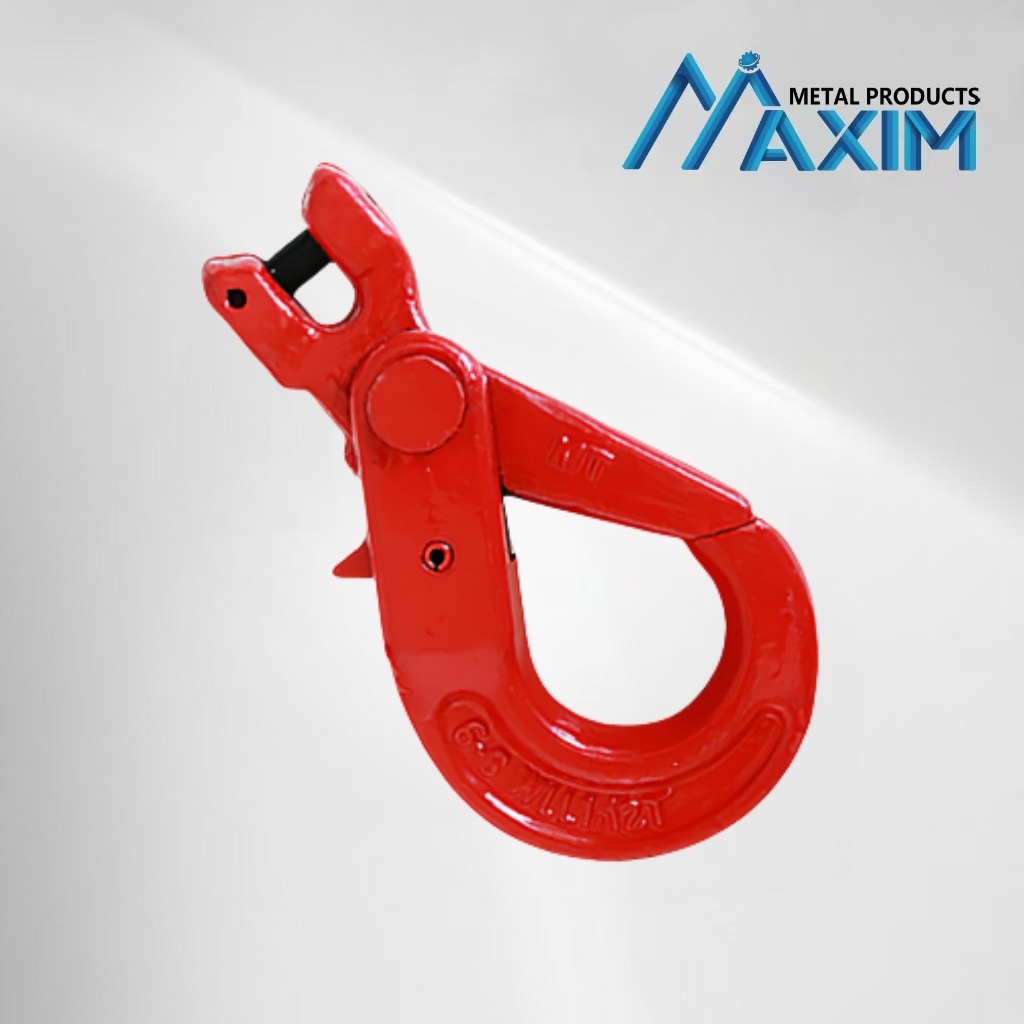

Self-Locking Clevis Type Safety Hook

No.G80
The Automatic Clevis Hook provides a robust and safe assembly directly on the chain, eliminating the need for a connector, in addition to preventing assembly errors between components with different loads. It has a “trigger” mechanism to open the lock.
  • Self-Locking Clevis Type Safety Hook

Description

Heavy Duty Grade 80 Forged Alloy Steel Red Clevis Safety Lock Hook
The Eye Hook is used for general cargo handling applications. Forged in grade 8 Alloy Steel, it has an AUTOMATIC safety lock and the workload is marked in relief on the piece. EPOXY paint finish, EN 1677-1 SAFETY FACTOR 4:1. The Automatic Clevis Hook provides a robust and safe assembly directly on the chain, eliminating the need for a connector, in addition to preventing assembly errors between components with different loads. It has a “trigger” mechanism to open the lock.
  • Comes with a Side-Triggering mechanism for easy access
  • Forged super alloy steel; Quenched & Tempered
  • Suitable for EN812-2 G80 Chain
  • 100% Magnaflux Crack Detection
  • Individually proof-tested at 2.5X Working Load Limit
  • Fatigue tested at 1.5X Working Load Limit for 20,000 cycles
  • Surface Finish: Powder Plastified
  • Positive lock latch is self-locked when hook is loaded
