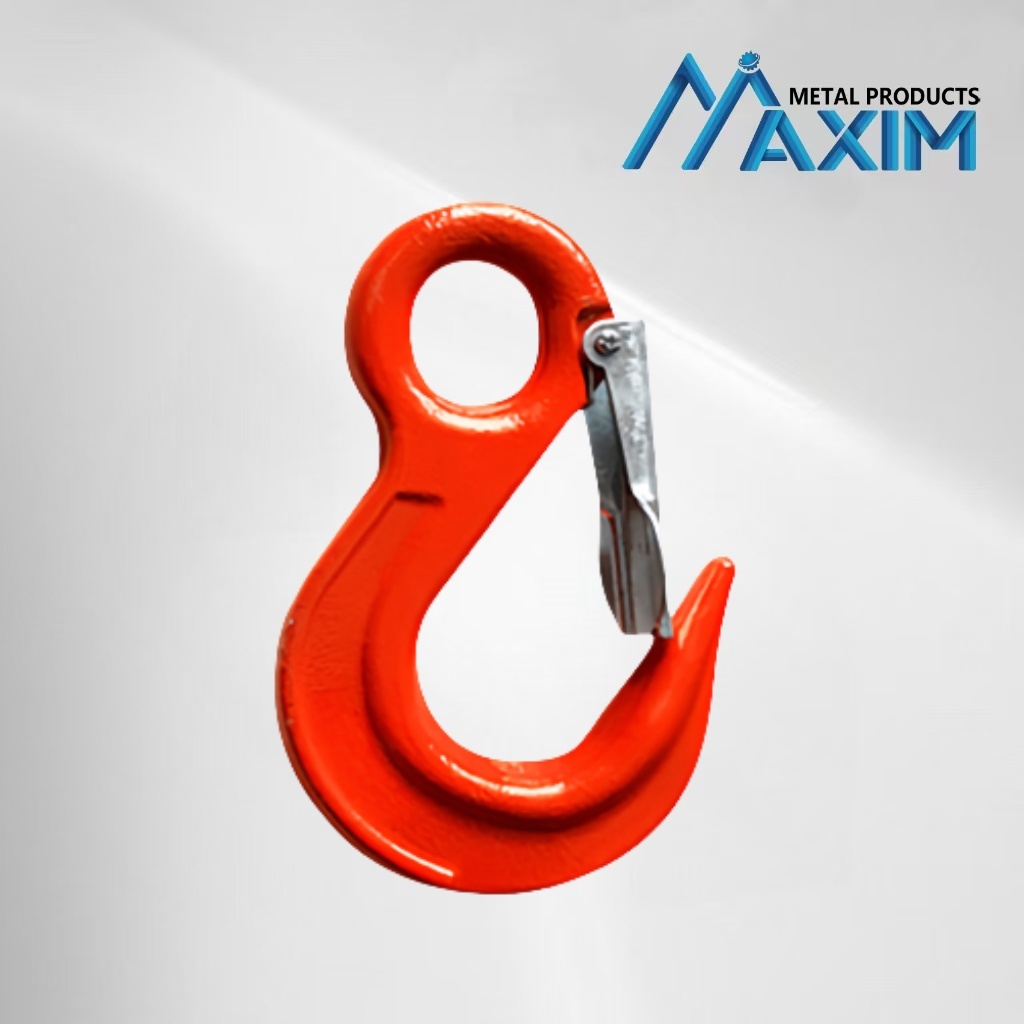

Name: Grade80 Eye Sling Hook With Latch
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G80
Availability: InStock
Rating: 5 (1 reviews)

Grade80 Eye Sling Hook With Latch

No.G80

Our Grade 80 Eye Sling Hooks stainless steel spring release trigger offer optimal performance. Ideal for rigging, these hooks will not open when under load as the latch closes automatically.

Description

Hardware Rigging Alloy Chain Fittings Grade 80 Eye Sling Hook

Our Grade 80 Eye Sling Hooks stainless steel spring release trigger offer optimal performance. Ideal for rigging, these hooks will not open when under load as the latch closes automatically. The large eye of these self-locking hooks permit the effortless use of both wire rope and chain slings. The most popular hooks we sell are sling hook, slip hooks,grab hooks,Swivel hook,self-locking hook.Self-Locking Hooks are the most common style of bottom hook used on chain slings,it allows the hook to remain open until the load is engaged. Several types of self-locking hook are available,eye self-locking hooks or clevis self locking safety hooks with grib latch for option.The swivel style allows easy connection to Chain Connectors, Shackles and Wire Rope Slings.

Feature:

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and Grade 80 chains.
● Each workpiece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.

● We should carry out strict sampling and breakage testing for each batch of products.

● We should carry out 100% magnetic powder flaw detection.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

Specifications:

Material: alloy steel
Finish: powder coating

Safety Factor: 4:1

Size:6 mm-32 mm

Color: red,green,yellow, as your request
Other size can be available.

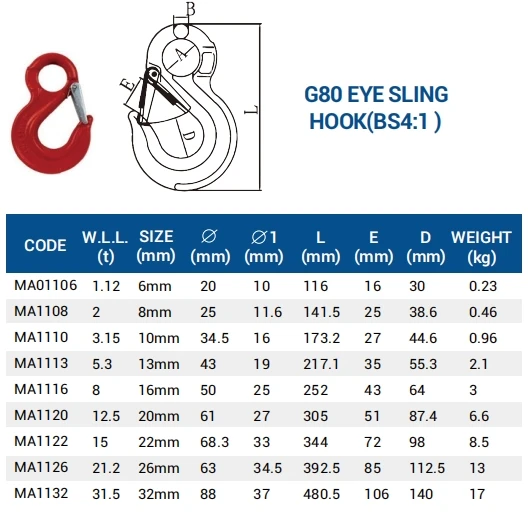

Hardware Rigging Grade 80 Alloy Chain Fittings Grade 80 Eye Sling Hook
CODE	W.L.L (t)	SIZE (mm)	WEIGHT (kg)
MA1106	1.12	6	0.23
MA1116	8	16	3
MA1132	31.5	32	17
