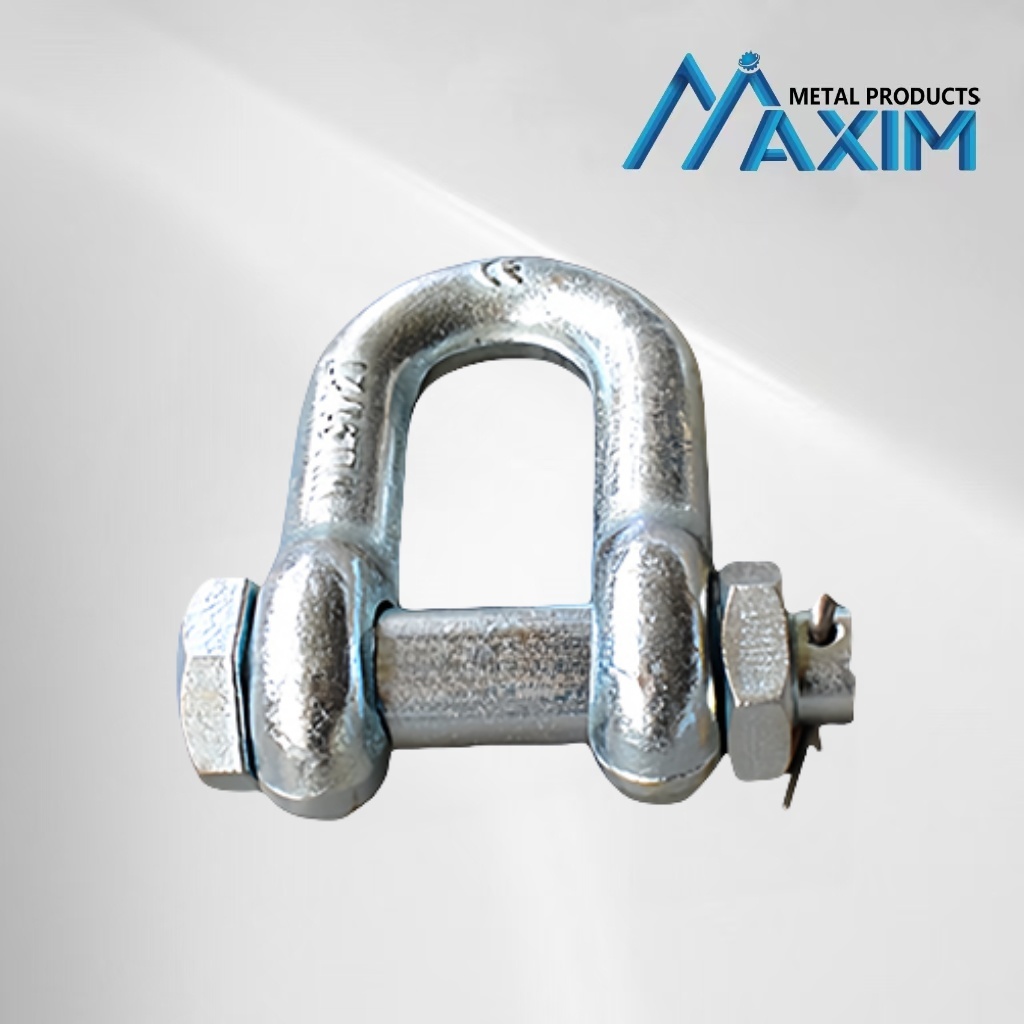

Heavy Duty Electric Galvanized Alloy G2150 Bolt Type Dee Shackles
Safety Type bolt type forged steel chain shackle is closed die forged. Closed die forging produces consistent dimensions. A closed die forged bow allows for an increased cross section that, when coupled with quench and tempering, enhances strength and ductility. Close tolerance holes and concentric pins with good surface finishes are provided and are proven to provide improved fatigue life in actual use. shackles are fatigue rated as well as load rated. Close pin to hole tolerance has been proven to be critical for good fatigue life, particularly with screw pin shackles.
Features:
Widely used in any lifting conditions, trailer conditions
Easier to be connected with chains, wire ropes,strap and webbings, hooks,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Specifications:
Process: Forging, quenched&tempered
Material: carbon steel/alloy steel
Safety factor: 4:1 & 6:1
W.L.L: 2TON-85TON (we have some type shackles can be made to 400t or more)
Size:3/16-4 inch (we have some type shackles can be made to 7inch or more
Finish: powder coated/galv/hot dip galv/grey and white zinc
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
