Name: G70 Transport Chain
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G70
Availability: InStock
Rating: 5 (1 reviews)

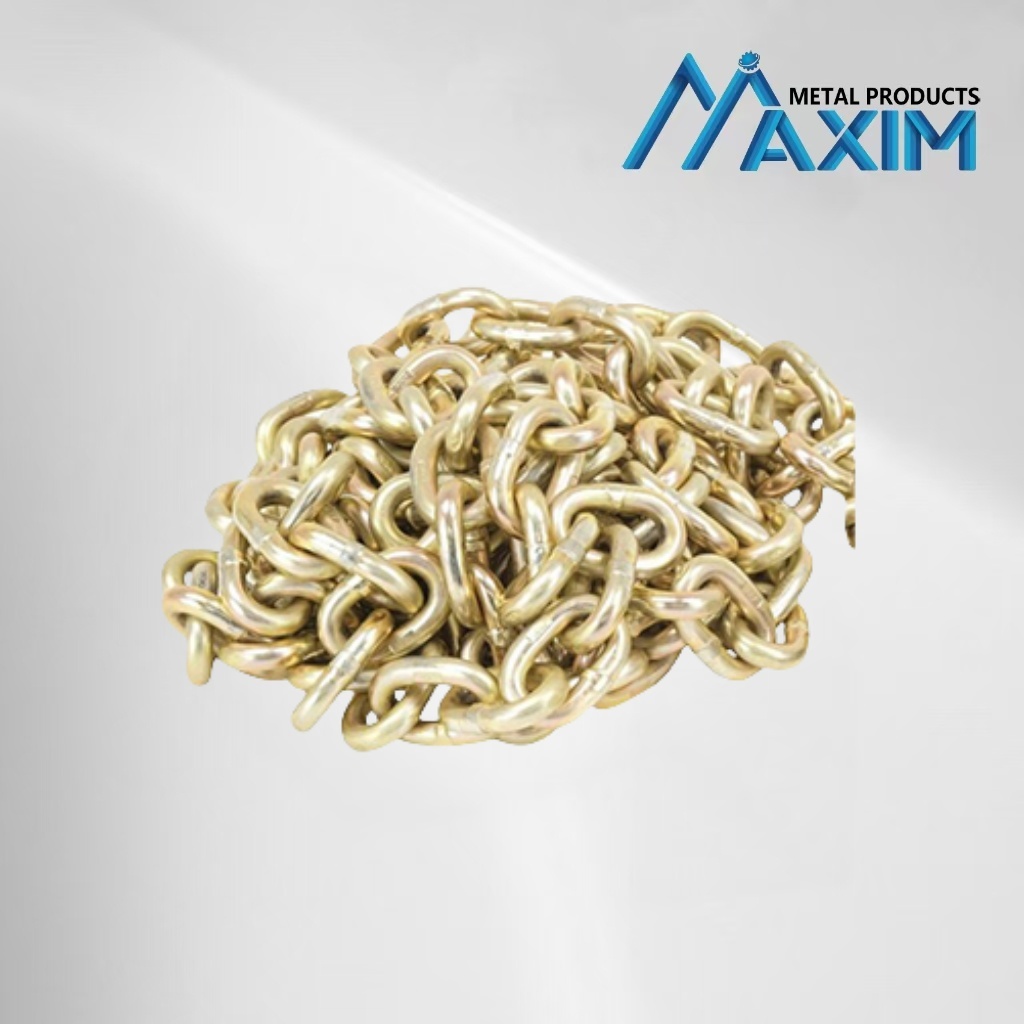

G70 Transport Chain

No.G70

G70 transportation chains are the choice of truck, trailer, and flatbed operators. The heat-treated Grade 70 chain and hooks are intended to stand up to rigorous use and harsh weather conditions.

Description

High Tensile Alloy Steel Drop Forged Grade 70 Transport Chain

* Grade 70 Transportation Chain w/ Grab Hooks
* Size: 1/2"
* Length: 20'
* Working Load Limit: 11,300 lbs
* Breaking Strength: 45,200 lbs
* Weight: 51 lbs

G70 transportation chains are the choice of truck, trailer, and flatbed operators. We have designed them for safety and
comfort to provide a safer working environment. Rated and certified for transporting loads on flat beds as well as hauling
vehicles, these chains are strong, durable, easy to tension and easy to store.
The heat-treated Grade 70 chain and hooks are intended to stand up to rigorous use and harsh weather conditions.

Chrome plating provides corrosion resistance. The forged grab hooks feature a heat-treated load pin with a retaining cotter pin so they stay attached to the ends of your chain. The grab hooks are universal so they can be used with 1/2" - 5/8" binders.

This chain has a 11,300-pound Safe Working Load and is intended for use with a load binder that has at least the same load rating.
The rating is based on a 4:1 safety factor. 4:1 is the correct safety factor, recommended by the NACM, and our chains are always
rated properly.

This product has a rated W.L.L but is subject to the correct welding procedure being carried out by a suitably qualified welder.

This Lifting Point is ideally suitable for lifting and lashing applications such as excavators, low loaders, lifting beams etc.....

Widely used on farm machinery, trucks, steel hulled marine vessels and material handling equipment.

5/16" Gold Dichromate Wll 4700 Lbs G-70 Transport Chain

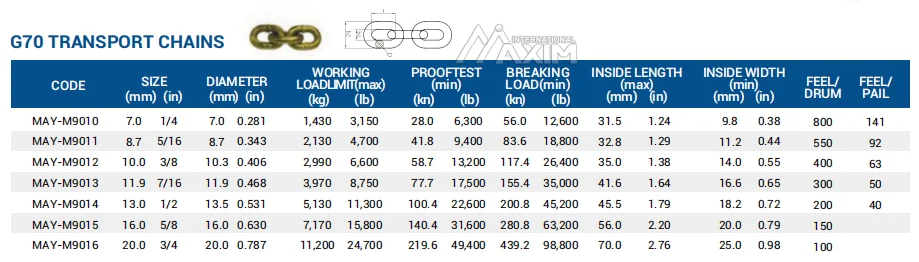

CODE	SIZE (in)	SIZE (mm)	W.L.L(kg)
MAY-M9010	7.0	1/4	1,430
MAY-M9011	8.7	5/16	2,130
MAY-M9012	10.0	3/8	2,990
MAY-M9013	11.9	7/16	3,970
MAY-M9014	13.0	1/2	5,130
MAY-M9015	16.0	5/8	7,170
MAY-M9016	20.0	3/4	11,200
