Name: G80 Webbing Connecting Link
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G80
Availability: InStock
Rating: 5 (1 reviews)

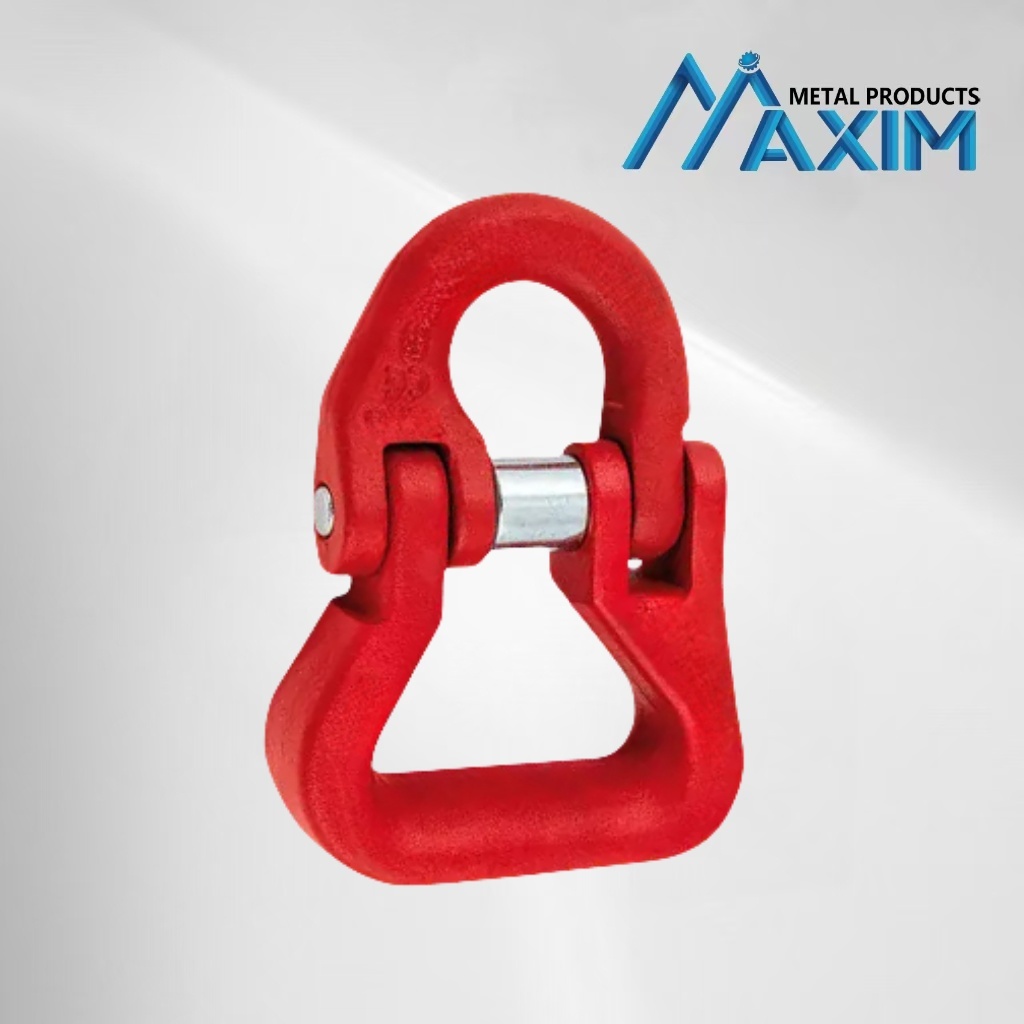

G80 Webbing Connecting Link

No.G80

Chain connecting links are made from forged alloy steel and are rated for use with alloy chain grade 80 and grade 100 for lifting applications. It is manufactured with advance techniques and high grade material.

Description

Hammerlock Forged Alloy Steel Grade 80 Webbing Sling Connecting Link

Grade 80 Webbing Sling Connecting Links are used as a coupling link in a chain sling between suspension link/chain, chain/chain or load hook/chain. We are well known in the industry as a manufacturer of a wide range of Connecting Link. Used for chain slings, offered connecting link is available from us in several specifications. This connecting link is manufactured with advance techniques and high grade material. The given connecting link is stringently tested on various parameters in order to ensure its delivery at customer's end. This 3/8" webbing sling connecting link is grade 80 and is an ideal choice for high-strength, secure connections. It includes a painted finish for added corrosion resistance and a locking retaining pin for easy assembly. G80 webbing sling connecting links are produced of super alloy steel, they are used to fit with G80 chains. We load same sized chains in half circle and punch the pins into the connecting link, then one fitting is finished. The working load limit of G80 hooks is the same as G80 standard chains, such as 8mm 2 ton, 10mm 3.15 ton, 13mm 5.3 ton etc. This is European type webbing sling connectinglink, we also supply connecting link in American type etc. The design are the same, while the dimensions and working load limit are different.

Chain connecting links are made from forged alloy steel and are rated for use with alloy chain grade 80 and grade 100 for lifting applications. The simple design facilitates quick assembly, dismantling and reassembly of reliable, safe lifting chain slings, without the need for special tools. These chain components are used to connect lifting equipment, such as lifting chains and lifting chain slings, which are used for the overhead lifting and movement of heavy loads in various industries. We have different sizes of chain connecting links to suit your required application; 7/8mm, 10mm, 13mm and 16mm.

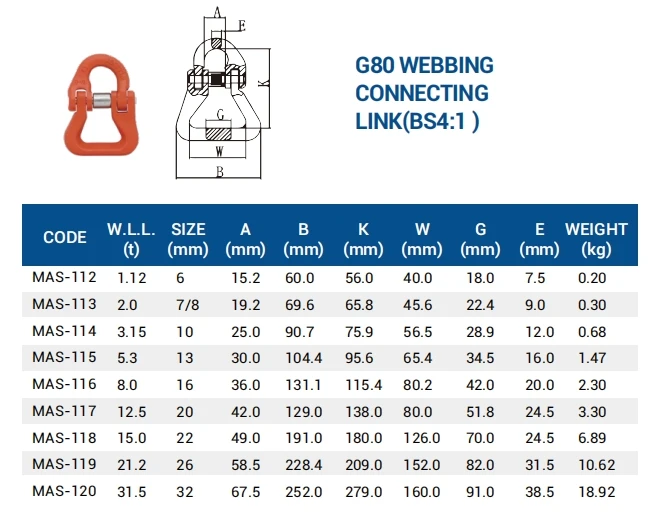

Hammerlock Forged Alloy Steel Grade 80 Webbing Sling Connecting Link
CODE	W.L.L (t)	SIZE (mm)	WEIGHT (kg)
MAS-112	1.12	6	0.20
MAS-116	8	16	2.30
MAS-120	31.5	32	18.92
