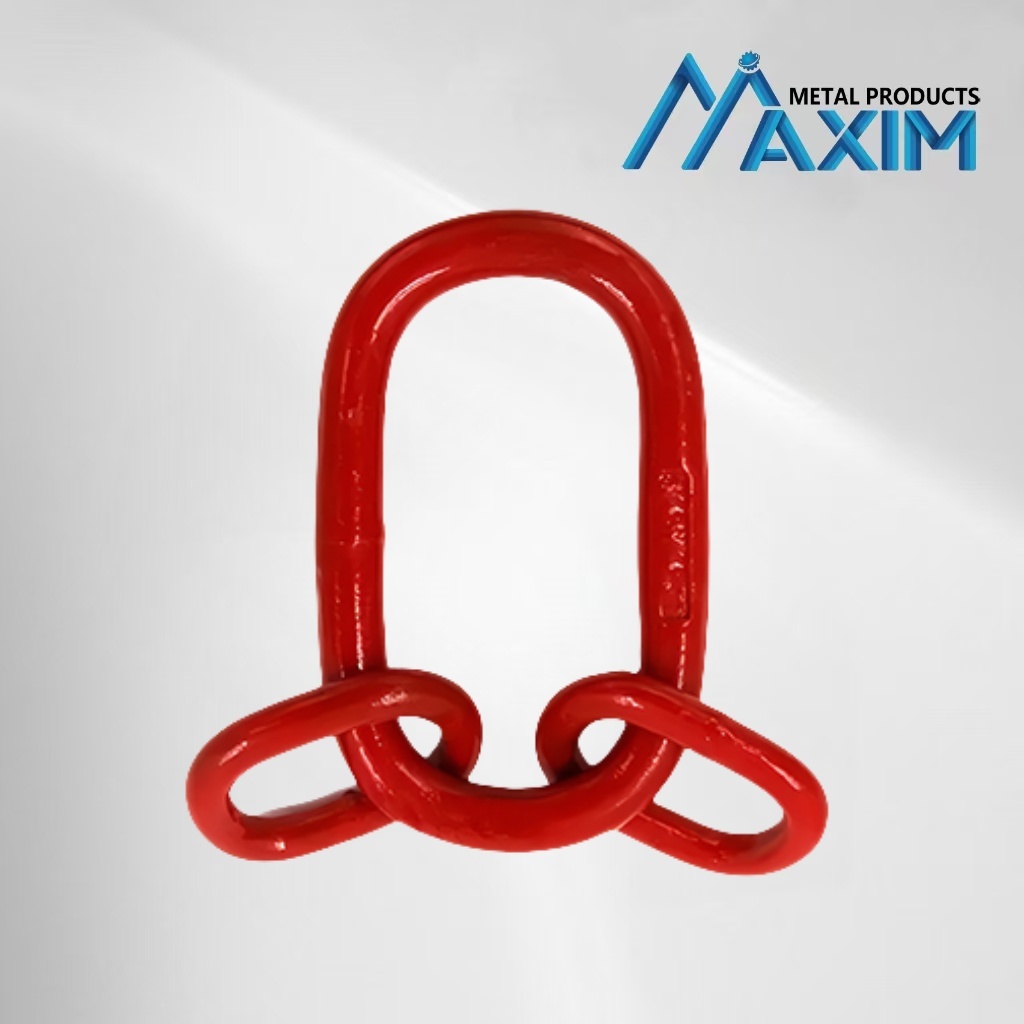

Name: G80 Weldless Oblong Master Link Assembly
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G80
Availability: InStock
Rating: 5 (1 reviews)

G80 Weldless Oblong Master Link Assembly

No.G80

Grade 80 European Master Link Assembly for Lifting Use consists of a main ring, two or more sub-rings, in which the main ring is fully forged, the sub-ring is welded, and the material is Alloy steel.

Description

Red Plastic Spraying Grade 80 European Master Link Assembly for Lifting

Links and rings are basic but essential components in lifting and rigging applications. They're closed-loop devices-similar to an eye-that are used to make connection points in rigging and sling assemblies. Links and rings are commonly used as the connection point in multiple-leg sling assemblies-typically chain or wire rope. They may be used as the connection point for one, two, three, or four sling-leg configurations. Grade 80 European Master Link Assembly for Lifting Use consists of a main ring, two or more sub-rings, in which the main ring is fully forged, the sub-ring is welded, and the material is Alloy steel. The specification is 1-100 tons,and the safety factor is 4 times. It is mainly used to assemble the spreader. The sub-ring is connected with the Link Chain and the chain connection, and is assembled into a synthetic rigging for lifting heavy objects and equipment. It can be used for machinery,industries. The product has high strength, light weight, exquisite design, strong versatility, diverse functions, and convenient safety inspection.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

Specifications:

Material: alloy steel
Finish: plastic spraying

Safety Factor: 4:1

Color: red,green,yellow, as your request
Other size can be available.

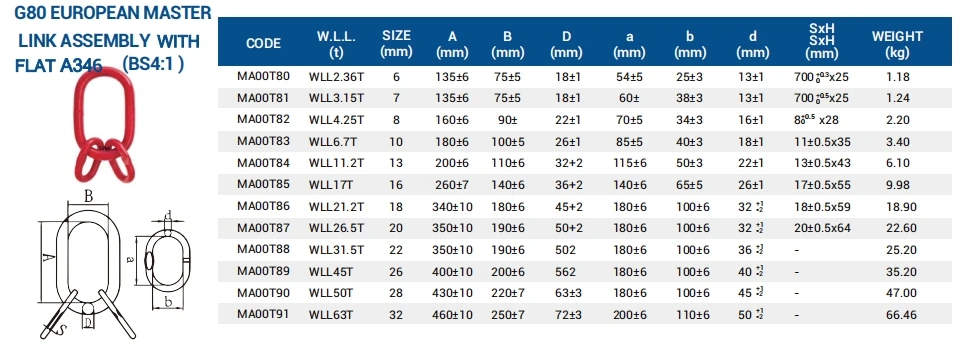

A346 European Type Forged Alloy Steel G80 Master Link Assembly for Hoisting
CODE	W.L.L (t)	SIZE (mm)	WEIGHT (kg)
MA00T80	2.36	6	1.18
MA00T86	21.2	18	18.9
MA00T91	63	32	66.46
