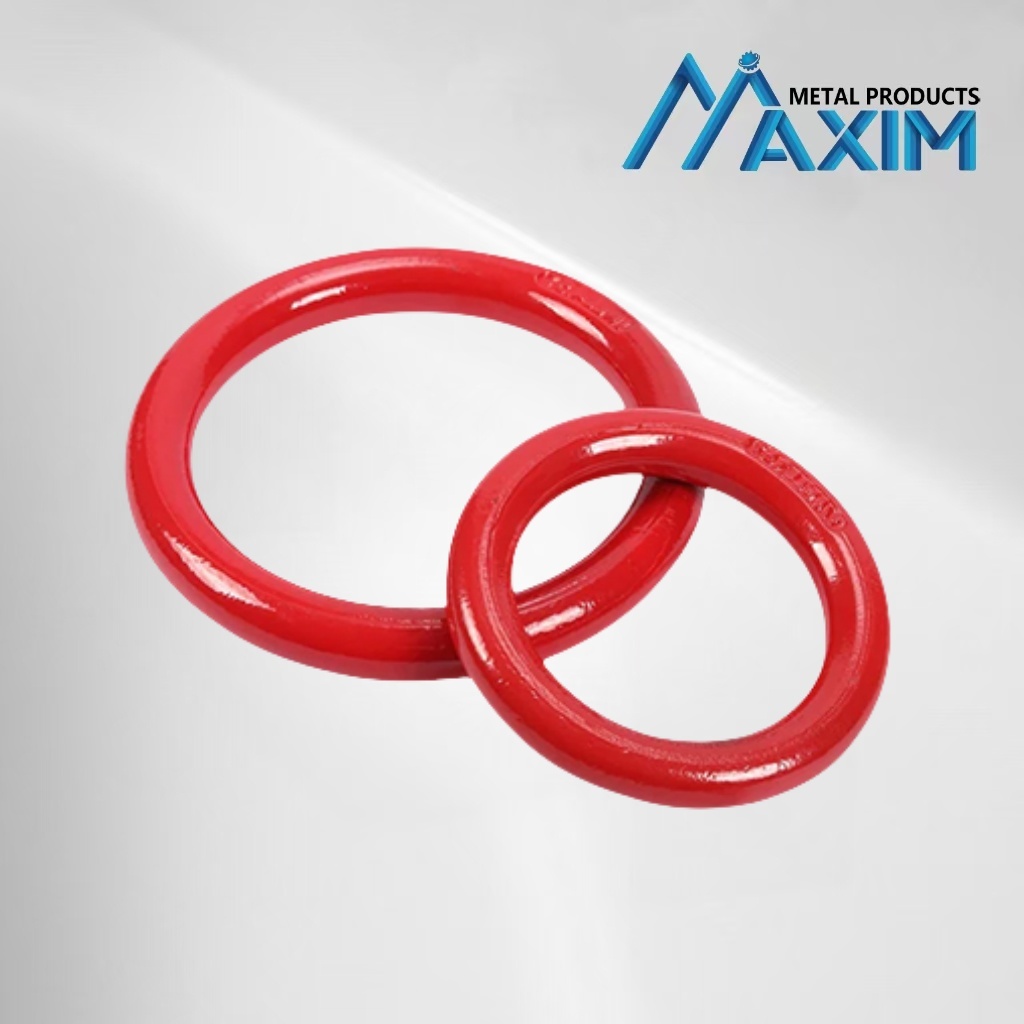

G80 Weldless Round Ring

No.G80
The weldless round ring is a kind of most common links. It has the advantages of small volume, light weight and high strength. And it can be widely used in Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings.
  • G80 Weldless Round Ring

Description

Powder Coated Color Master Link Weldless Grade 80 Round Ring

The G80 master link weldless round ring
 alloy steel forged round ring is a kind of most common links. It has the advantages of small volume, light weight and high strength. And it can be widely used in Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings.
The master link weldless round ring is mainly used for assembling the sling, connecting the double ring buckle and the chain connection, assembling into the synthetic rigging, used to lift heavy objects and equipment, etc.

characteristic:
The weldless round ring has the characteristics of high strength, light weight, beautiful design, strong versatility, diverse functions, safety and convenience
Specifications:
Process: casting/forging
Material: carbon steel/alloy steel
Safety factor: 4:1
Size: M1-M16 (other size can be customzied)
Finish: polished


CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

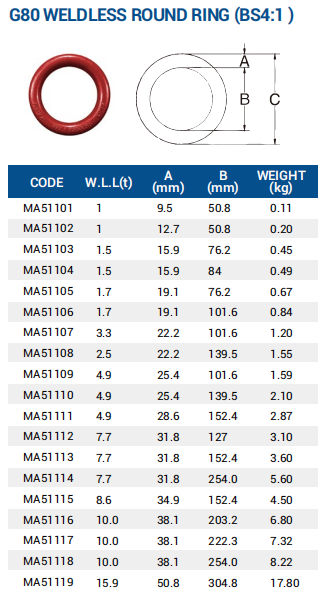

Hot Sale Grade 80 Forged Master Link Weldless Round Ring
SIZE/MM
 WLL/T
KG/PC
7-8*4
2.0
2.72
1*4
11
3.47
1-3/8*6
35
10.12
