Name: Grade 100 Connecting Link
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G100
Availability: InStock
Rating: 5 (1 reviews)

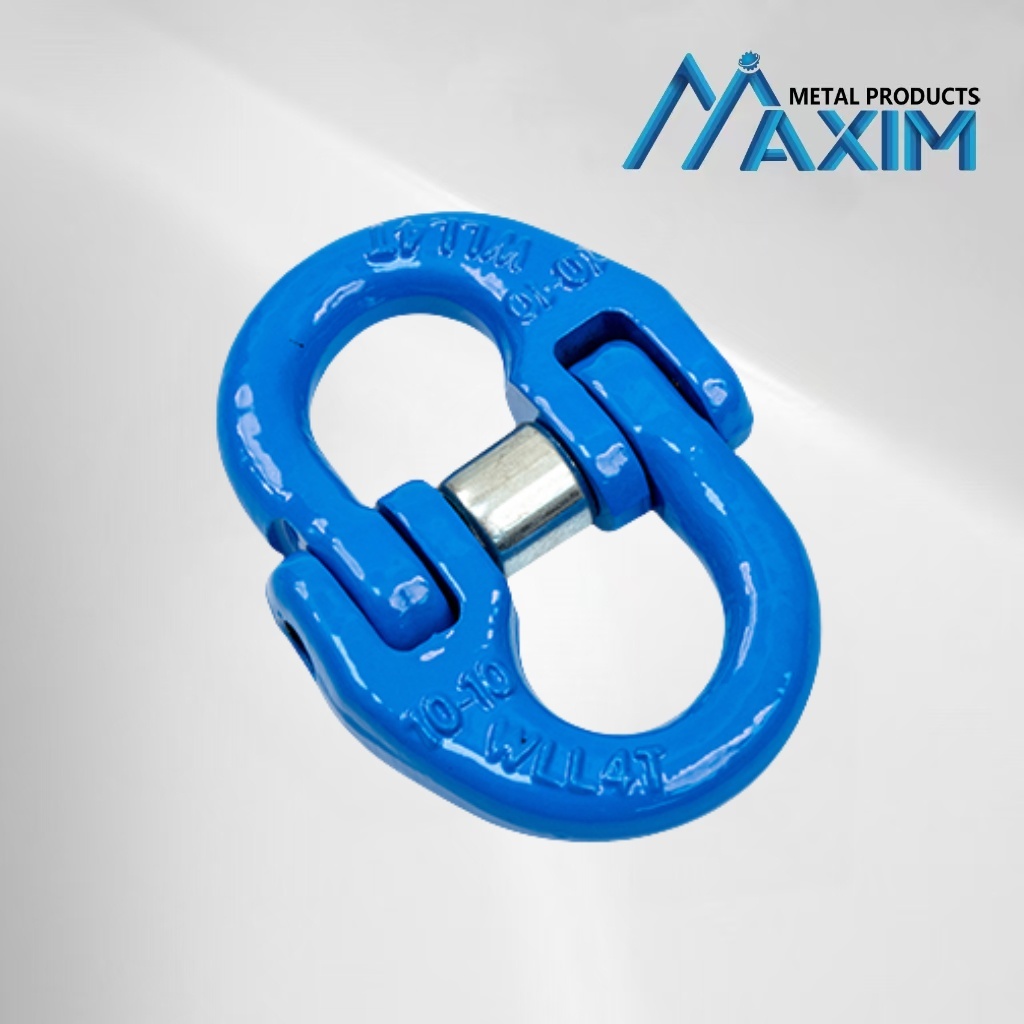

Grade 100 Connecting Link

No.G100

This 3/8" connecting link is grade 100 and is an ideal choice for high-strength, secure connections. It includes a painted finish for added corrosion resistance and a locking retaining pin for easy assembly.

Description

Hardware Blue Painted European Type Grade 100 Connecting Link

Grade 100 Connecting links are used as a coupling link in a chain sling between suspension link/chain, chain/chain or load hook/chain. We are well known in the industry as a manufacturer of a wide range of Connecting Link. Used for chain slings, offered connecting link is available from us in several specifications. This connecting link is manufactured with advance techniques and high grade material. The given connecting link is stringently tested on various parameters in order to ensure its delivery at customer's end. This 3/8" connecting link is grade 100 and is an ideal choice for high-strength, secure connections. It includes a painted finish for added corrosion resistance and a locking retaining pin for easy assembly. G100 European type connecting links are produced of super alloy steel, they are used to fit with chains. We load same sized chains in half circle and punch the pins into the connecting link, then one fitting is finished. The working load limit of G80 hooks is the same as G80 standard chains, such as 8mm 2 ton, 10mm 3.15 ton, 13mm 5.3 ton etc. This is European type connecting link, we also supply connecting link in American type etc. The design are the same, while the dimensions and working load limit are different.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility

for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser
and/or user are thoroughly familiar with their proper use.

Specifications:

Material: alloy steel
Finish: powder coating

Safety Factor: 4:1

Color: red,green,yellow, as your request
Other size can be available.

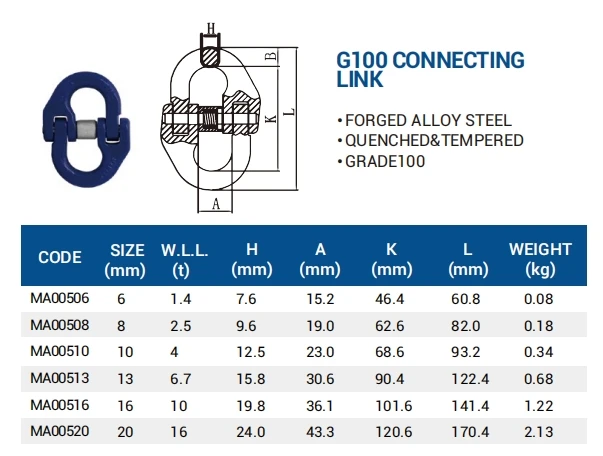

Hardware Blue Painted European Type Grade 100 Connecting Link for Chain Sling
CODE	W.L.L (t)	SIZE (mm)	WEIGHT (kg)
MA00506	1.4	6	0.08
MA00513	6.7	13	0.68
MA00520	16	20	2.13
