Name: Grade 70 Clevis Pear Shaped Ring
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G70
Availability: InStock
Rating: 5 (1 reviews)

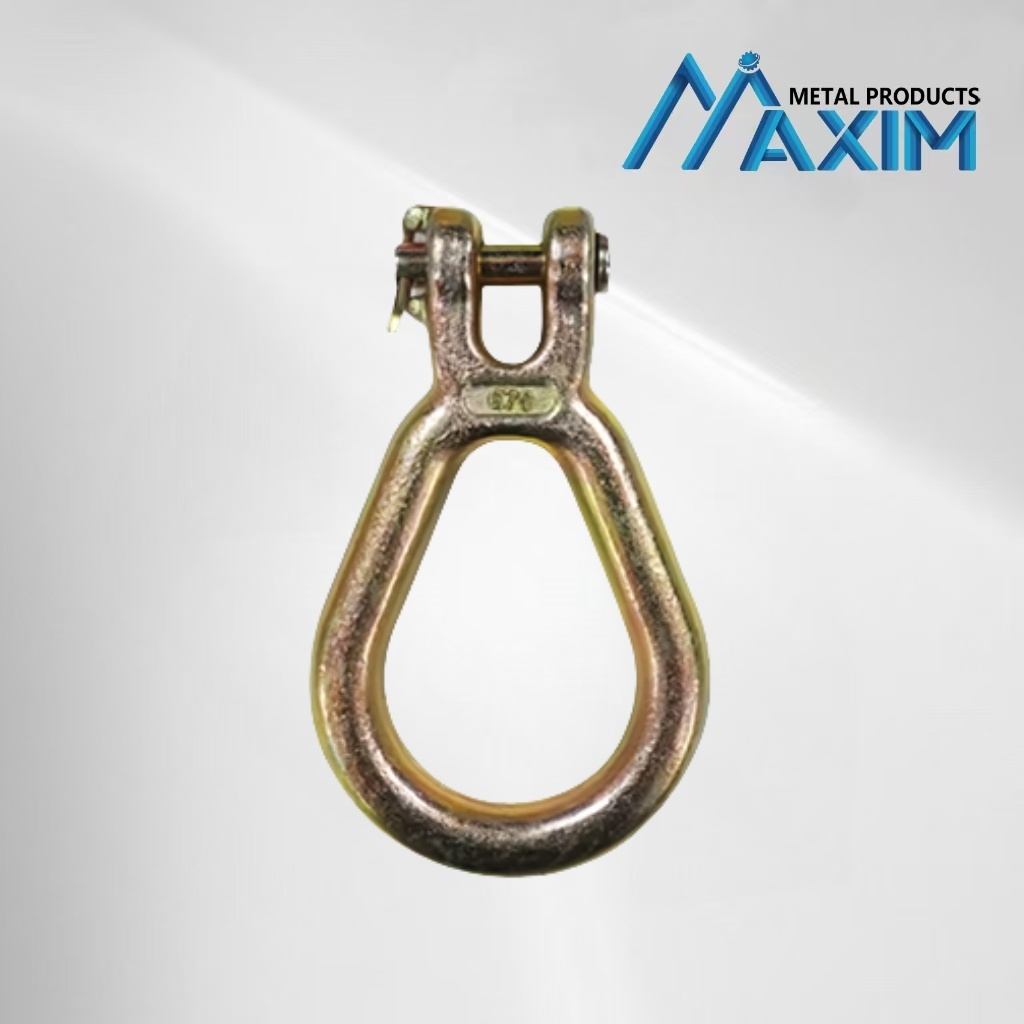

Grade 70 Clevis Pear Shaped Ring

No.G70

Drop forged clevis pear links combined with grade 70 chain are an efficient way to restrain loads in transport. These fittings are suitable for load securement and are NOT to be used for overhead lifting.

Description

Factory Yellow Zinc Plated Forged Grade 70 Clevis Pear Shaped Ring

Drop forged clevis pear links combined with grade 70 chain are an efficient way to restrain loads in transport. Clevis lug links combined with Grade 70 chain are an effective way to restraint heavy loads for transport operations with the benefit of a loop to use as a tow or anchor point,commonly used for drag chain applications.The benefit of the loop and the direct connection to the chain makes an easy and clean connection to hooks, shackles and other attachment points. Also can be used in towing, dragging and many load securement applications.

These fittings are suitable for load securement and are NOT to be used for overhead lifting. DO NOT exceed rated capacities.

1. Manufactured from forged steel, quenched, tempered and gold zinc plated.
2. Marked with chain size, lashing capacity, grade, batch numbered for traceability.
3. Batch test certificate available upon request.

Grade 70 Clevis Pear Shaped Ring :

■ Material: carbon steel ■ Safety factor: 4:1 ■ Working load limit permanently shown on the body.

■ Links 1" and smaller are drop forged.

■ Links 1 1/4" and larger are robotically welded. ■ Individually proof tested at 2.5 times the working load limit. ■ Mill test certificate available

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.Maintain adequate vertical down (tongue) load to have control of the trailer (generally 10%), but do not exceed the above rated capacities. Other steps and inspections are also required.

Specifications:
Process: Forged&Welded

Surface Treatment: Quenched & tempered.
Finish: galvanized
Other size can be available.
