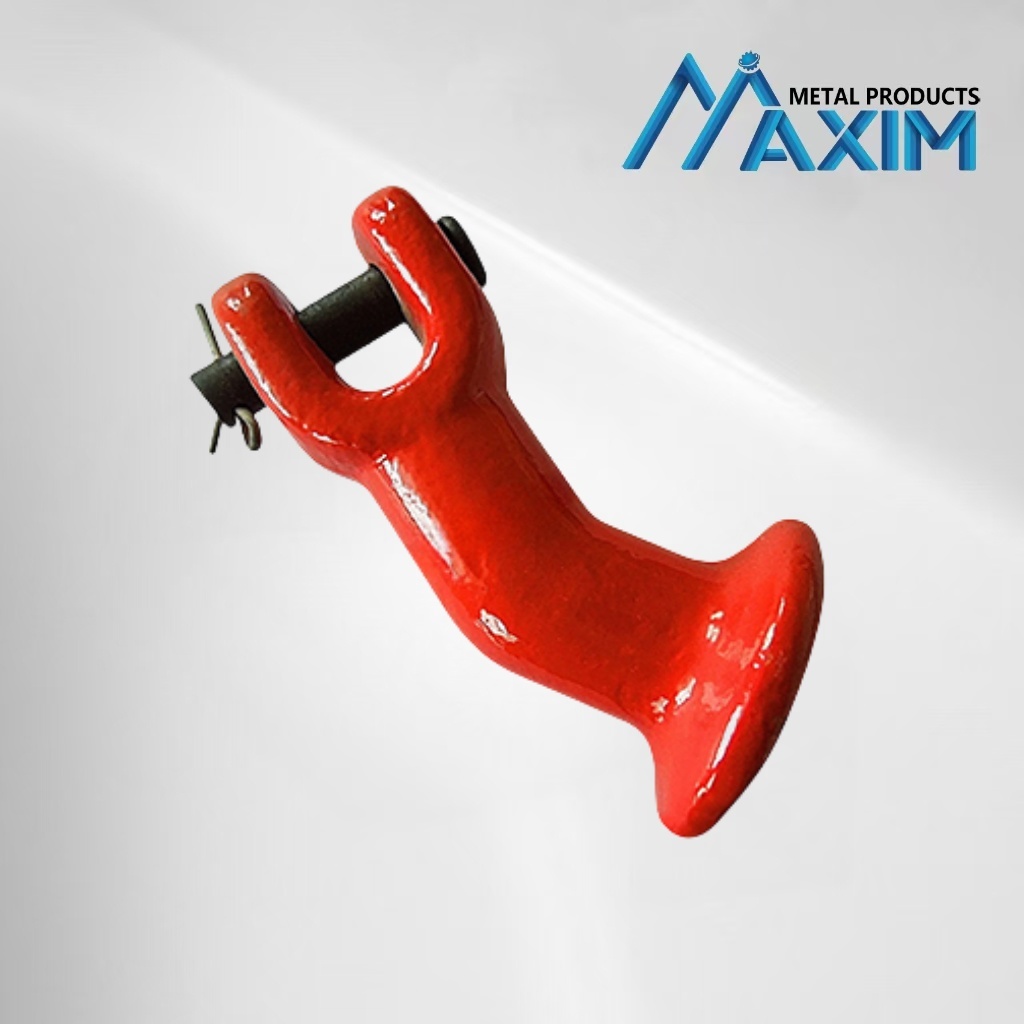

Clevis type elephant foot is especially made for lifting containers from the lower fitting points.
Large eye for easy connection to wire rope or chain legs.
Full traceability
Proof tested and certified
it should always be used with, either a 2 or 4 point spreader beam / spreader bar.It is available as a straight and turned 45 degrees. To avoid the risk of disengagement during use, a tolerance of +- 15 degrees from nominal should be adhered to.We recommend that you use a spreader and lift when the container is loaded as this is where the container is strongest.
If a two point connection spreader is used the WLL is to be reduced due to the angles.
A 4-leg sling is also possible to use but then you need to:
Make sure the hooks and chains can move free to the intended load angles without obstruction.
Features:
Widely used in container lifting conditions
Easier to be connected with chains, hooks, shackles,etc
Stronger performance during working
Specifications:
Process: Forging, quenched&tempered
Material: alloy steel
Finish: powder coated/galv/hot dip galv/black treatment
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
