Load rated parts are 100% magnaflux crack detected. •Individual forged parts and cap screw are traceable to Test Certification.
Bolts are Metric thread.
Proof tested to 2.5 times the WLL.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just a tapped hole is required

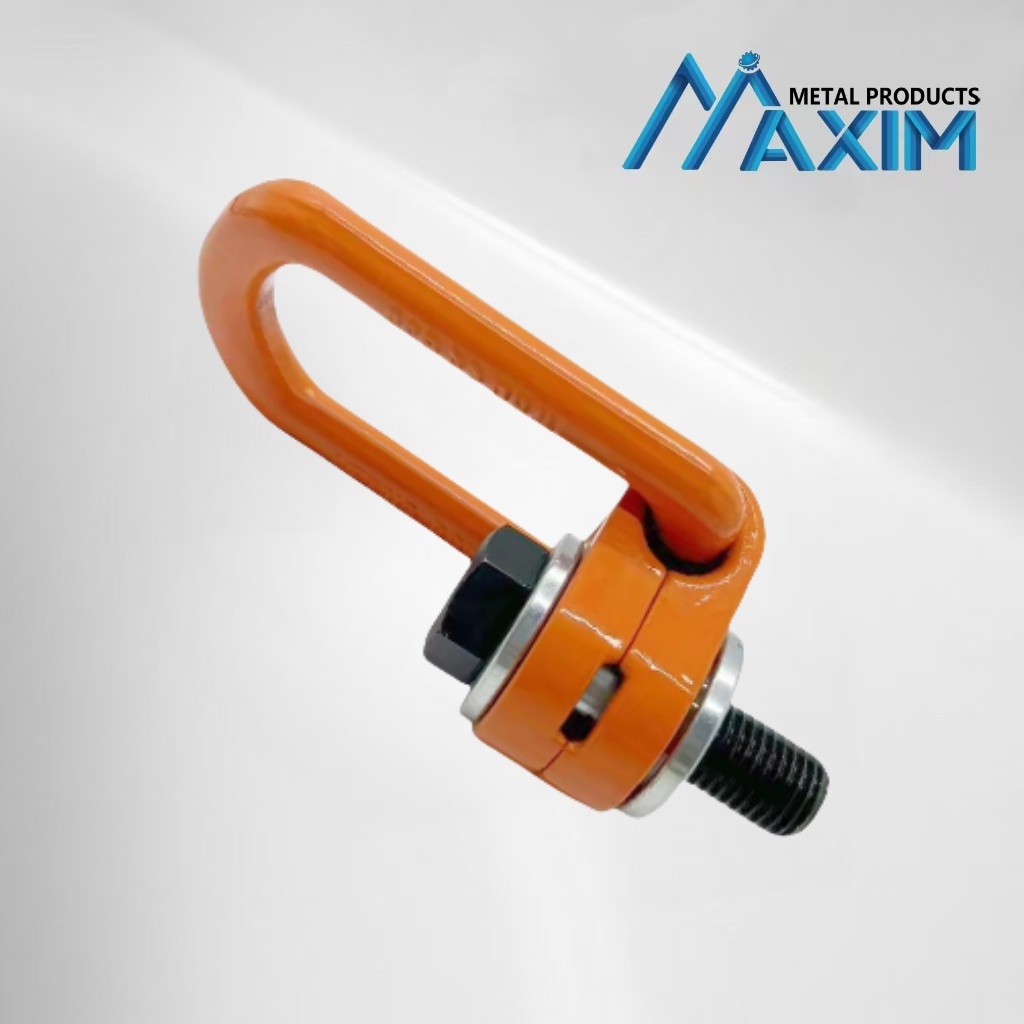

- Material : Made of forged, hardened and tempered special alloy steel
- The surface is coated with special epoxy resin, which prevents corrision effectively
- Optimum alignment of the lifting point in the load direction.
- An integrated spring holds the ring in any position.
- Quality grade 8, bold grade 10.9 or higher.
Features:
Widely used in container lifting conditions
Widely used in ports, wharves, all kinds of lifting equipment connection
Stronger performance during working

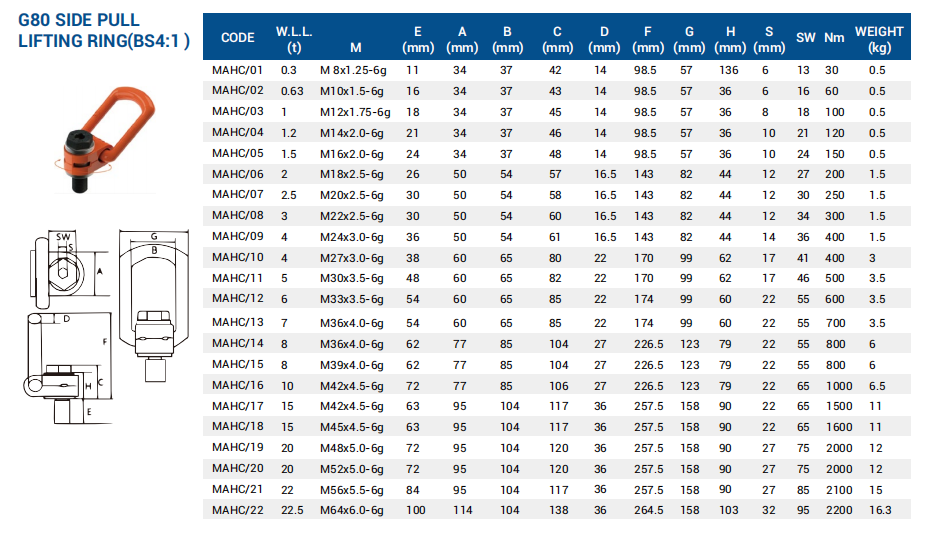

Specifications:
Process: Forging, quenched&tempered
Material: alloy steel
Finish: powder coated/galv/hot dip galv/black treatment
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility
for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser
and/or user are thoroughly familiar with their proper use.
