Name: Grade80 Pear Shape Link
Brand: Qingdao Maxim Metal Products Co.,ltd
SKU: G80
Availability: InStock
Rating: 5 (1 reviews)

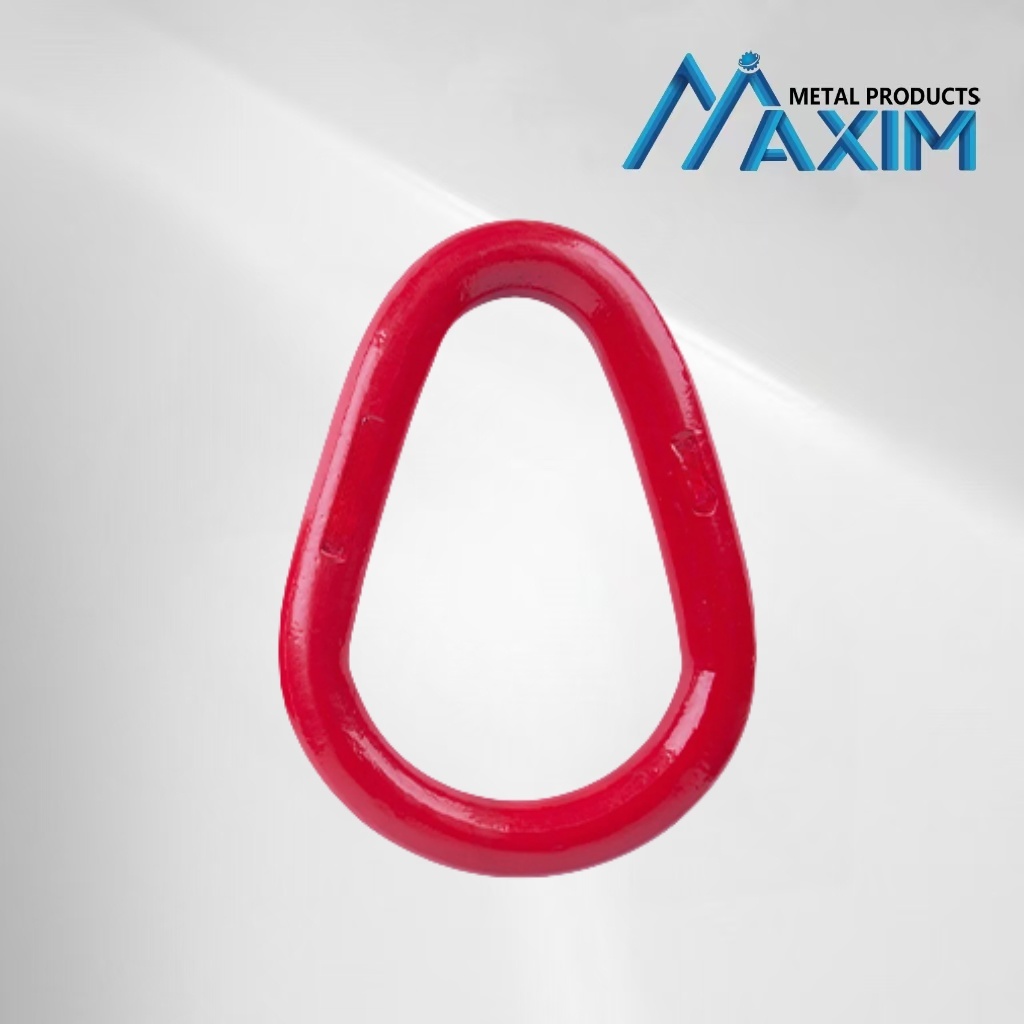

Grade80 Pear Shape Link

No.G80

Grade 80 Pear Link is also called G80 delta links/G80 delta links. The ring is forged from alloy steel and treated with quenched and tempered. It will be used for wire rope, synthetic and chain sling assemblies.

Description

Red Color Powder Coating G80 Pear Shape Master Link For Wire Rope

Grade 80 Pear Link is also called G80 delta links/lifting rings. The ring is forged from alloy steel and treated with quenched and tempered. The narrow end will limit the movement of the rope and chain and a wide end will leave room to connect multiple connectors. It will be used for wire rope, synthetic and chain sling assemblies.

Pear ring is a common spreader in lifting machinery. The pear-shaped ring is often suspended from the rope and chain of the lifting mechanism by means of components such as a pulley block.We offer a wide range of grade 80 chain components, such as, connecting link, eye sling hook, eye self locking hook, master link, master link assembly, welded master link, welded master link assembly, shortening clutch, omega link, etc.

G80 Pear Shape Link For Wire Rope:

■ Material: alloy steel/carbon steel ■ Safety factor(Carbon/ Alloy): 6:1 / 5:1 ■ Powder coated, different color is available as per request. ■ Working load limit permanently shown on the body.

■ Links 1" and smaller are drop forged.

■ Links 1 1/4" and larger are robotically welded. ■ Individually proof tested at 2.5 times the working load limit. ■ Mill test certificate available

Specifications:
Process: Forged&Welded

Surface Treatment: Quenched & tempered.
Finish: powder coated
Other size can be available.

Hot Selling Red Color Powder Coating G80 Pear Shape Link For Wire Rope

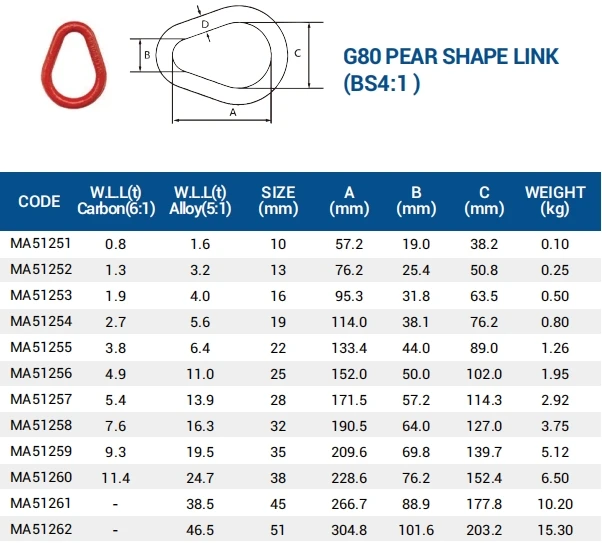

CODE	W.L.L.(t) Carbon Alloy	SIZE(mm)	WEIGHT(kg)
MA51251	0.8 1.6	10	0.10
MA51257	5.4 13.9	28	2.92
MA51262	- 46.5	51	15.3
