Description

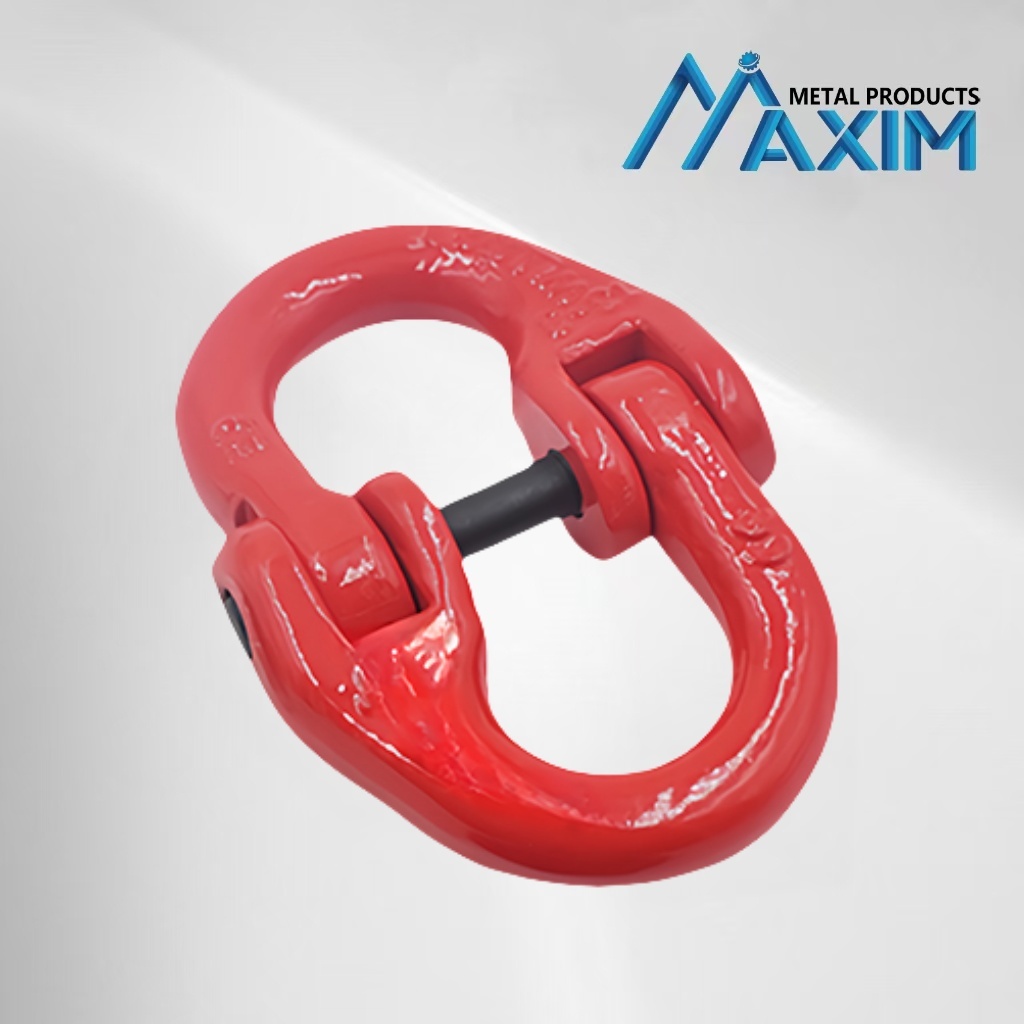

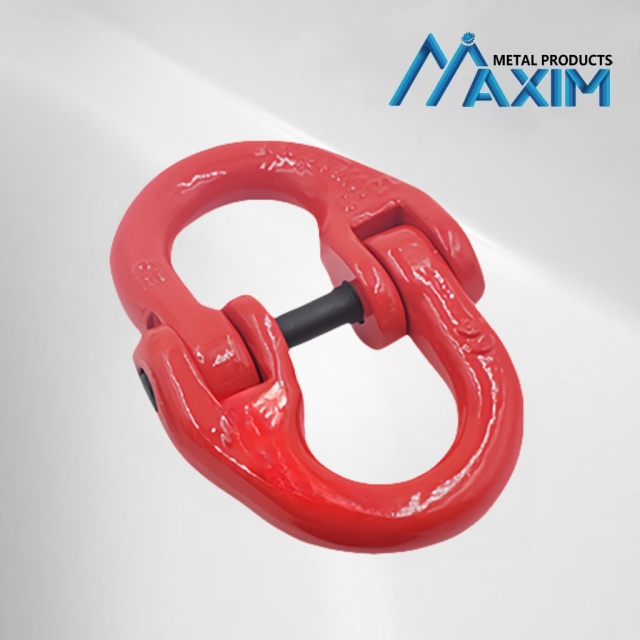

G80/100 Chain Hammerlock Coupling Link
Alloy mechanical couling link used as a top fitting to attach chain legs to master link. Often used as a bottom fitting to attached plate clamp, engineered device, or shackle to chain sling leg. Wide Body (B dimension) for extra room. Heavy duty galvanized retaining collar houses square stainless steel locking spring. Center pin has recess for strong mechanical lock. Full traceability Proof tested to 2 times working load limit.
The hammerlock link is closed die forged. Closed die forging produces consistent dimensions. A closed die forged bow allows for an increased cross section that, when coupled with quench and tempering, enhances strength and ductility. Close tolerance holes and concentric pins with good surface finishes are provided and are proven to provide improved fatigue life in actual use. they are fatigue rated as well as load rated. Close pin to hole tolerance has been proven to be critical for good fatigue life, particularly with screw pin shackles.
Features:
Widely used in any lifting conditions, trailer conditions
Easier to be connected with chains,shackles,wire ropes,strap and webbings, hooks,mater links and rings,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Specifications:
Process: Forging, quenched&tempered
Material: alloy steel
Finish: powder coated/galv/hot dip galv/grey and white zinc
Other size can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
