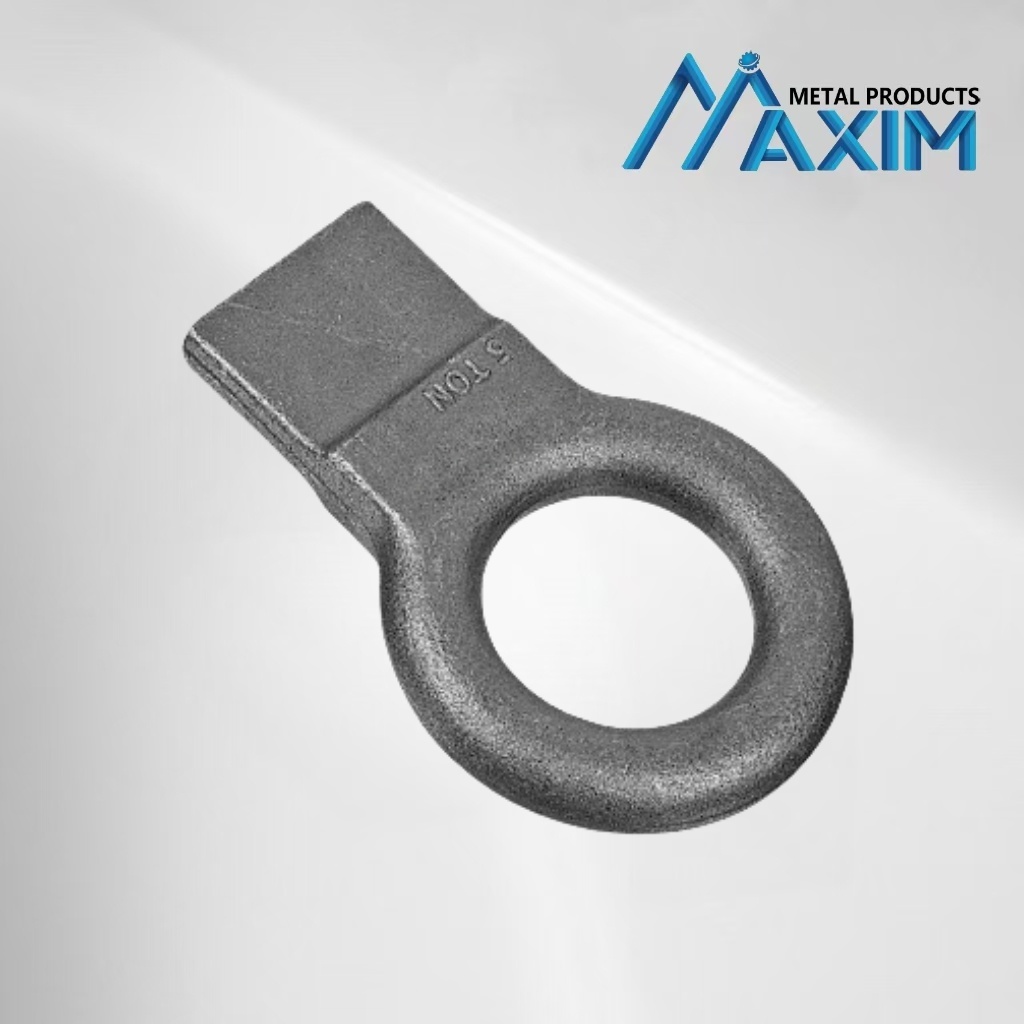

Heavy duty Forged Steel Trailer Hitch Ring Weld on Flat Draw Bar eyesThe Weld-On Forged Steel Drawbar features strong C1020 steel and can be welded directly onto a trailer tongue. It's available in two sizes for maximum towing weights of up to either 10,000 or 20,000 lb. The drawbar is ideal for such uses as baggage cars, agricultural spreaders, and other off-road uses.
Product Common Use: Baggage Cars, Agricultural Trailers, Off-Road UsesSpecifications:
-
- Weld-On on Tow Ring
- Maximum Gross Trailer Weight (M.G.T.W.): 10,000 lb
- Maximum Vertical Load (M.V.L.) : 1,000 lb
- Cross Section of Eye: 1"
- Outer Diameter of Eye: 4-1/2"
- Inner Diameter of Eye: 2-1/2"
- Stub Dimensions: 5/8" x 2-1/2" x 2"
- Forged Steel Drawbar
- Finish: Plain
