Description

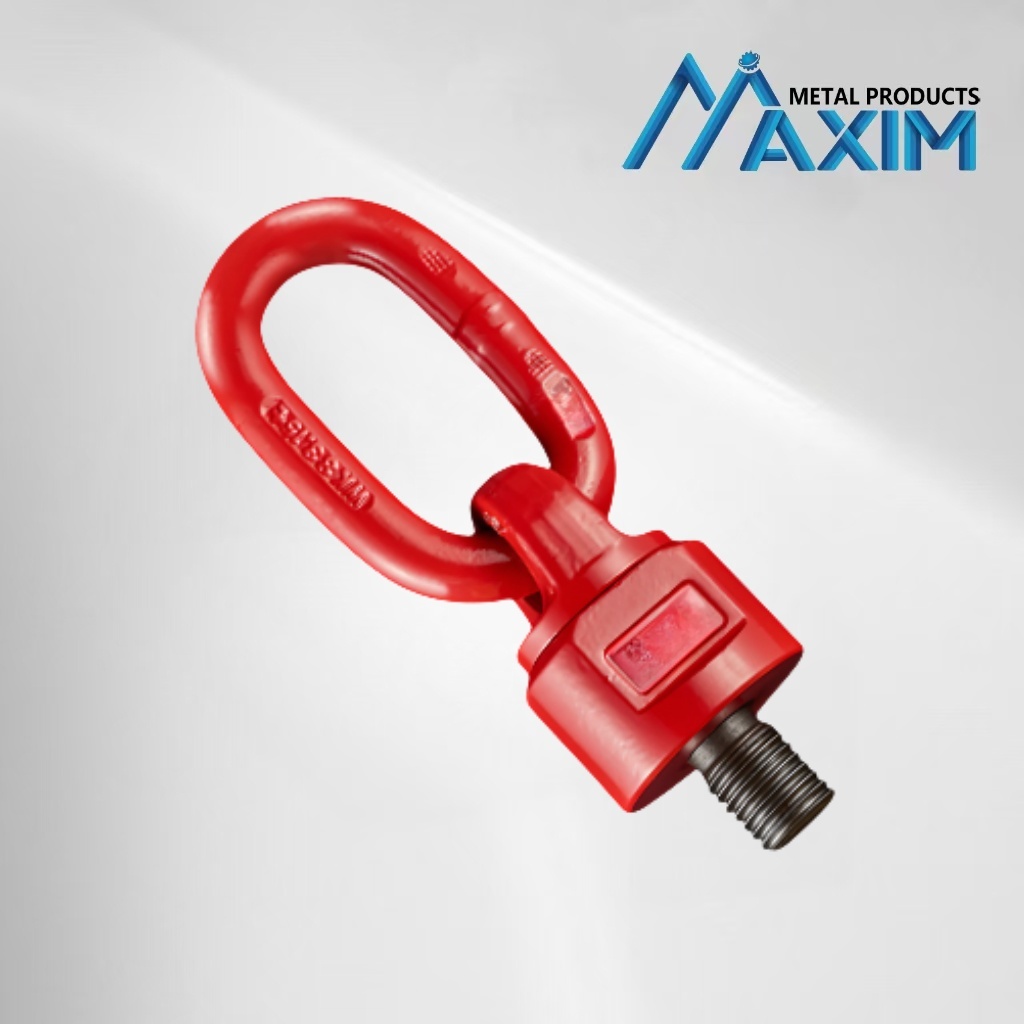

G80 Lifting Swivel Eye With Hoist Ring
Grade 80 Swivel lifting eye bolt with hoist O ring is commonly used for lifting ,sling ,trailer and load restraint applications. There are different options with different sizes and capacities from M8-M90. Adjustable in optional direction of pull. A plane bolting surface guaranteed. The material to which the lifting point is attached should be adequate strength to withstand forces during lifting without deformation. With captive screw.
Not intended to rotate under load
Equipped with ball bearing,360°rotation.
Can be loaded in all directions with a safety factor of 4 times;
Oblong ring manufactured according to DIN1677-4 grade 80;
Specifications:
1. grade:G80
2.Material:alloy steel
3.Process:drop forged
4.Surface:powder coated
5.Usage:lifting
6.Size:8mm-90mm
Features:
Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested - 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Grade 80
Highly efficient operation
Excellent tensile strength
Good protection against breakage in all directions
