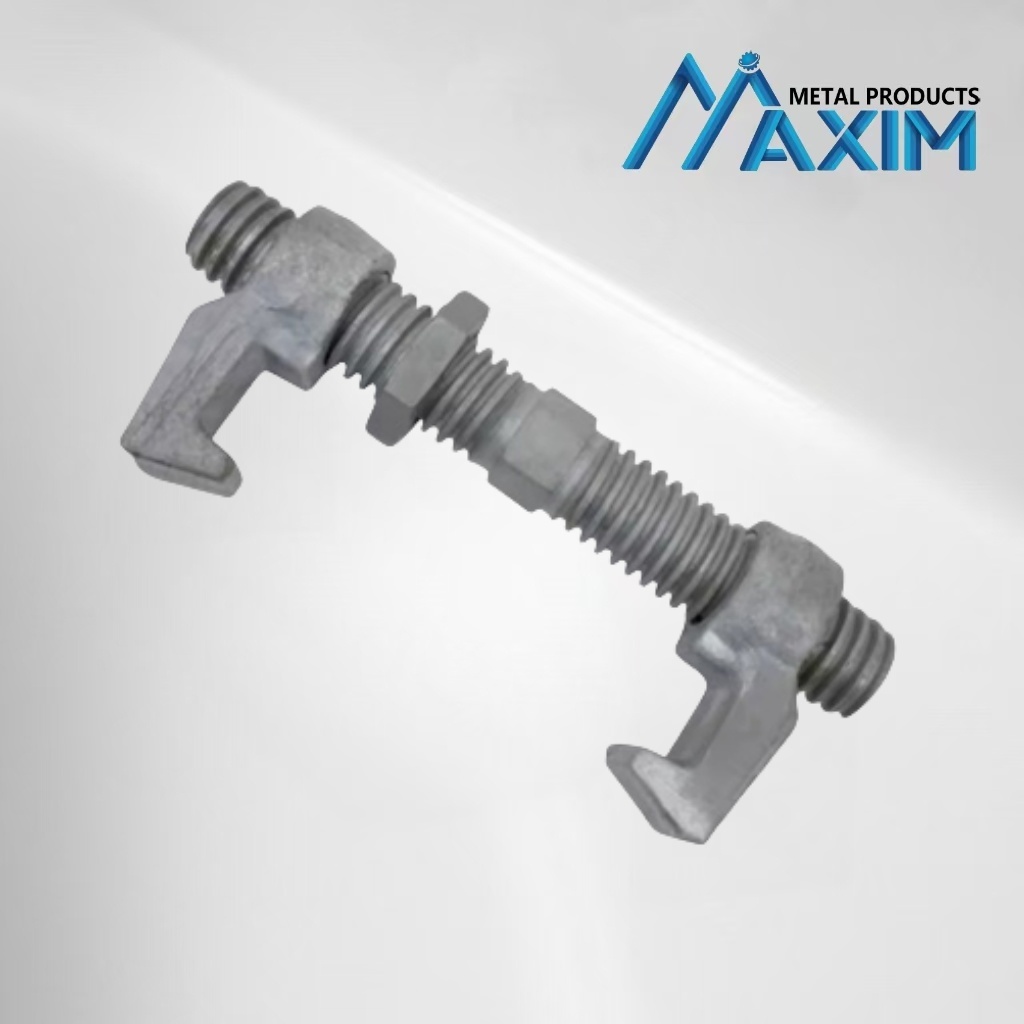

Cargo Lashing Fitting ISO Shipping Container Bridge For Corner Casting
Shipping container bridge clamps are used to connect shipping containers together horizontally. They are primarily used in the shipping industry to ensure safe transport of shipping containers on ship but are widely used when two shipping containers need to be securely connected together horizontally.
The Iso shipping container bridge is to lock the two casting container corners, to make container lashing steadily.
It was casted by steel, with hot dip galvanized finish to withstand the ocean conditions. There are 260mm and 380mm in usual, the length is also can be customized according to different requirements.
It is especially made for lifting containers from the lower fitting points.
Large eye for easy connection to lifting lugs, container twistlocks,container eyes, container lashing bars,bridge , etc.
Full traceability
Proof tested and certified
it should always be used with, either a 2 or 4 point spreader beam / spreader bar.It is available as a straight and turned 45 degrees. To avoid the risk of disengagement during use, a tolerance of +- 15 degrees from nominal should be adhered to.We recommend that you use a spreader and lift from the bottom when the container is loaded as this is where the container is strongest.
If a two point connection spreader is used the WLL is to be reduced due to the angles.
A 4-leg sling is also possible to use but then you need to:
Make sure the hooks and chains can move free to the intended load angles without obstruction.
Only lift in the bottom corners.
Features:
Widely used in container lifting conditions
Easier to be connected with container twistlock, container hooks, container lugs,etc
Stronger performance during working
Specifications:
Process: casting
Material: steel
Finish: hot dip galv
Other size can be available.
