Description

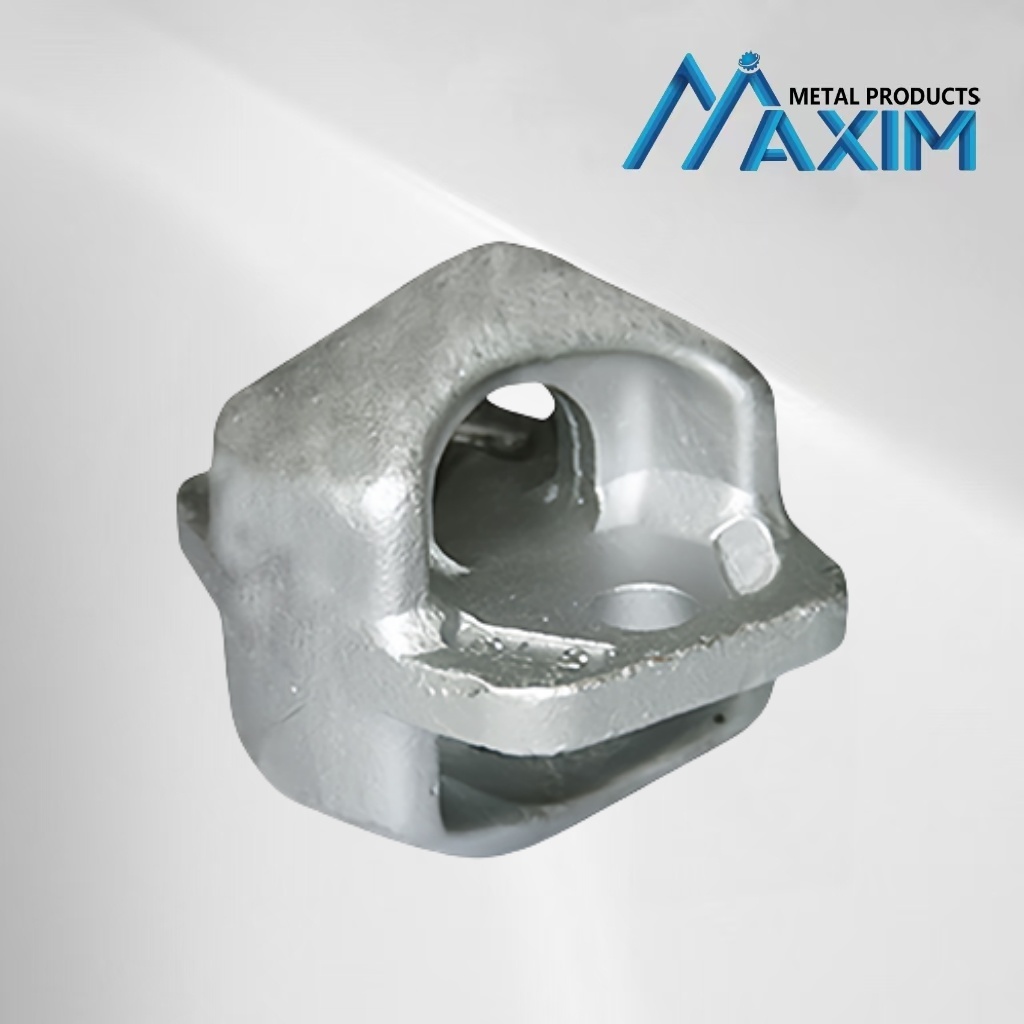

HDG Intermediate Bottom Single Stackers For Container Loose Fitting
Container single stacking cone is used for the connection of the bottom of ship container, or the up and down connection for bottom connection. Container stacking cone is placed between containers in a stack. Slots into corner castings. To resist horizontal forces. There are many types exist, and the most popular type is: Single Type & Double Type(Horizontal & Longitudinal). It may be locked into bottom corner castings prior to lifting a container on board.
Feature:
* High quality casting steel execution;
* Approval from GL,BV,ABS;
* It's specially designed for linking the upper and lower containers;
* Center marking for easy installation
Specification
M.B.L.:Compression:2000KN
Material: Made of casting steel
Finish: Hot dip galvanised
Weight: 2.2KG; 2.6KG
M.B.L.:Tension
M.B.L.:Shear:360KN; 420KN
M.B.L.:Compression:2000KN
