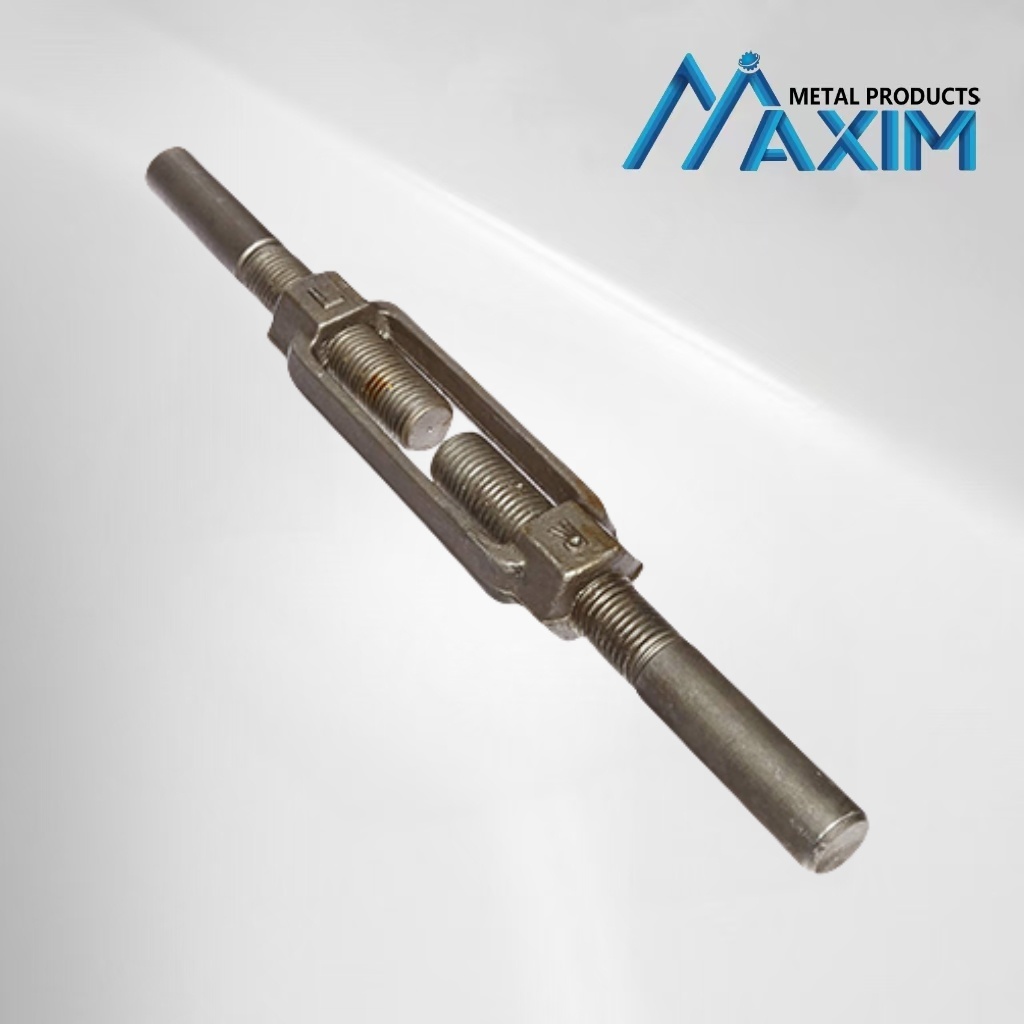

High Quality Hot Dip Galvanized JIS Type Wire Rope Turnbuckle with Stub
hot dipped galvanized JIS open type stub-stub turnbuckles. Meets design and performance requirements of Japanese standard. Turnbuckles are designed for use in straight line, do not subject to bending or unusual angles. End fittings are hot galvanized after threading. Hexagon ends on all bodies provide full bearings. Turnbuckles must always be inspected for wear, distortion, cracks and damage before use. If worn, distorted or damaged, discard and replace. Turnbuckles are not designed for angular loading, so the loading must be applied in a straight line. Working load limit is based on a design factor of 4;1.
- Hot dipped galvanized
- Stubs are fitted with pin and cotter
- Meets design and performance requirements of JIS
- 26-5/8-inches average overall length with ends in closed position
- 22.72-inches closed length
- Turnbuckles have a strong construction and a galvanized finish that resists rust and corrosion.
- Suitable for outdoor applications
- Open body style
- The approximate length of the turnbuckle when closed is 13-5/16"
- The safe working load limit is 2200 pounds
Other size is customized.
