  • Snatch Block Pulley WIth Hook & Latch
  • Snatch Block Pulley WIth Hook & Latch

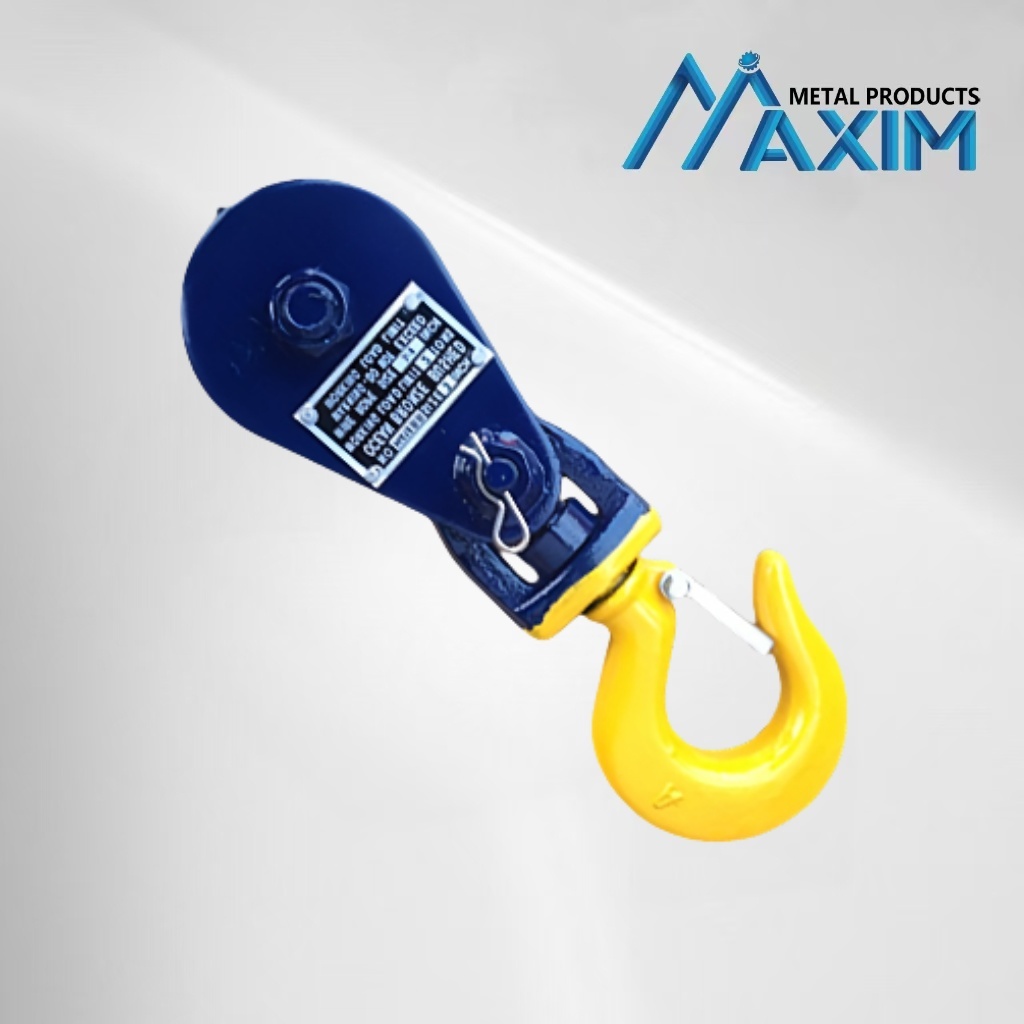

Snatch Block Pulley WIth Hook & Latch

Snatch Pulley Blocks with 4 Times Safety Factor. Drop forged super alloy steel Swivel:cast iron swivel/cast steel swivel/hot rolling steel Wheel core: quill rolling/durable copper sheathing/ball bearing Working load:1T-100T
  • Snatch Block Pulley WIth Hook & Latch

Description

Lifting Hook Type Single Wheel Snatch Block Pulley WIth Hook & Latch

The single-wheel hoisting tackle is an open design, which can easily open the hinge to place the wire rope. It is an important hoisting tool. The hoisting tackle has a simple structure and is easy to use. It can change the direction and hoisting of the hauling cable of the tackle and tackle. Or moving and moving objects, especially a block composed of a block combined with a hoist, mast or other lifting machinery, lifting blocks are widely used in construction and installation operations. Mainly used in production and construction of factories, mines, agriculture, electricity, buildings, etc., dock, dock, warehouse machinery installation, cargo lifting, etc.

Feature
  • Fittings are painted yellow for quick recognition
  • Designed for intermittent use with low line speed
  • Ultimate load 4 times working load limit (WLL)
  • Bronze bush with grease nipple

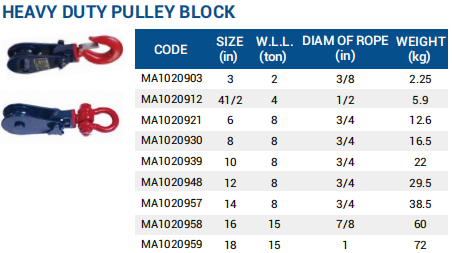

Specifications:

  • Weight:12.43lb
  • Height:0.36in;Width:0.29in;Length:1.19in
  • Block Material:Steel
  • Block Type:Snatch
  • Capacity:8000 lbs.
  • Category:Block & Sheave
  • Designed For Wire Rope
  • Rope/Cable Diameter:1/2"
  • Sheave Size:4-1/2"
  • Sheave Type:Single
