Name: Red D-Ring Shackle
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

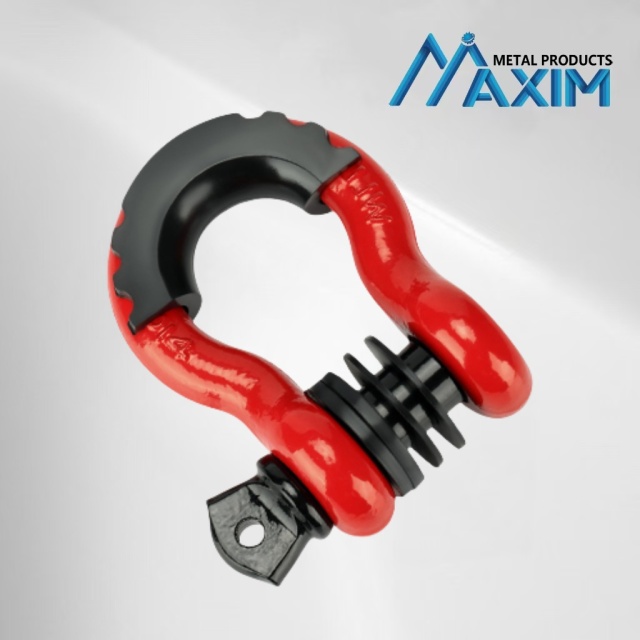

Red D-Ring Shackle

The shackle is used instead of a conventional hook on a winch and is easy to remove and install.The rubber pad protects the rollers and hawse from damage. Now the hook does not dangle while moving and does not knock.

Description

Drop Forged 4.75 Tons Vehicle Recovery Red Towing Hitch Swivel Shackle

4.75ton 3/4" shackle with isolator is closed die forged. Closed die forging produces consistent dimensions. A closed die forged bow allows for an increased cross section that, when coupled with quench and tempering, enhances strength and ductility. Close tolerance holes and concentric pins with good surface finishes are provided and are proven to provide improved fatigue life in actual use. shackles are fatigue rated as well as load rated. Close pin to hole tolerance has been proven to be critical for good fatigue life, particularly with screw pin shackles.

Features:
Widely used in any lifting conditions, trailer conditions

Easier to be connected with chains, wire ropes, hooks,etc

Stronger performance during working

Many sizes can be choosed according to the different daily working

Specifications:
Process: Forging, quenched&tempered

Material: carbon steel/alloy steel
Safety factor: 4:1 & 6:1
W.L.L: 2TON-85TON (we have some type shackles can be made to 400t or more)
Size:3/16-4 inch (we have some type shackles can be made to 7inch or more
Finish: powder coated/galv/hot dip galv/grey and white zinc

Other size can be available.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

SPECIFICATION FOR red coating 3/4" shackle with isolator
CODE	SIZE(INCH)	W.L.L(ton)	WEIGHT(LBS)
MG801	1	2	0.31
MG802	1 1/12	2 2/3	0.33
MG803	2	3 1/3	0.63
MG804	3 1/4	5	1.35
MG805	4 3/4	7	2.35
MG806	6 1/2	9 1/2	3.51
MG807	8 1/2	12 1/2	5.32
MG808	9 1/2	15	7.25
MG809	12	18	9.88
MG810	13 1/2	21	13.25
..	..	..	..
MG817	35	35	45
MG818	55	55	70
MG819	85	85	85.75
MG820	120	120	120
MG821	150	150	153
..		..	..
