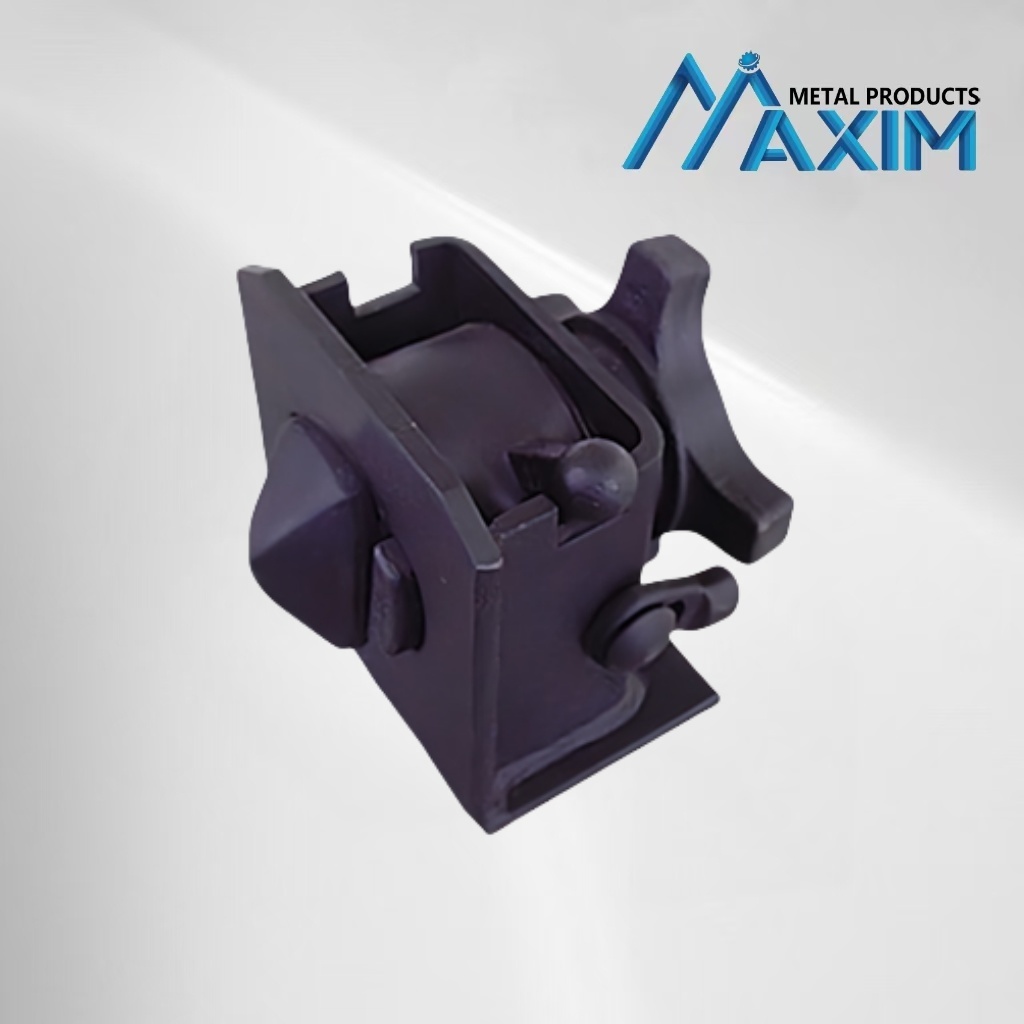

Screw Type Trailer Container Twistlock

Name: Screw Type Trailer Container Twistlock
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

An adjustable twist lock for coupling a cargo container to a platform. The twist lock is adapted to secure containers having corner fittings constructed in accordance with differing standards.

Get A Quote

Description

Handlocking Semi Automatic ISO Screw Type Trailer Container Twistlock

An adjustable twist lock for coupling a cargo container to a platform. The twist lock is adapted to secure containers having corner fittings constructed in accordance with differing standards. The Twistlock is welded on to chassis (or flatbed) to haul Sea Freight containers by truck. Connects to container from bottom of container not side. The handle is pulled, the lock twisted to either deploy into locking position or retract into unlocked position. Material used is Forged Steel. Bracket is Steel Grade 235, Cast Steel. Designed for Standard ISO 1161 Shipping Containers

Process: casting/forging

Material: carbon steel/alloy steel

Finish: Black powder coating

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

Semi Automatic Screw Type Container Trailer Twist Lock
code	MBL
MATW-S5013	500Kn
