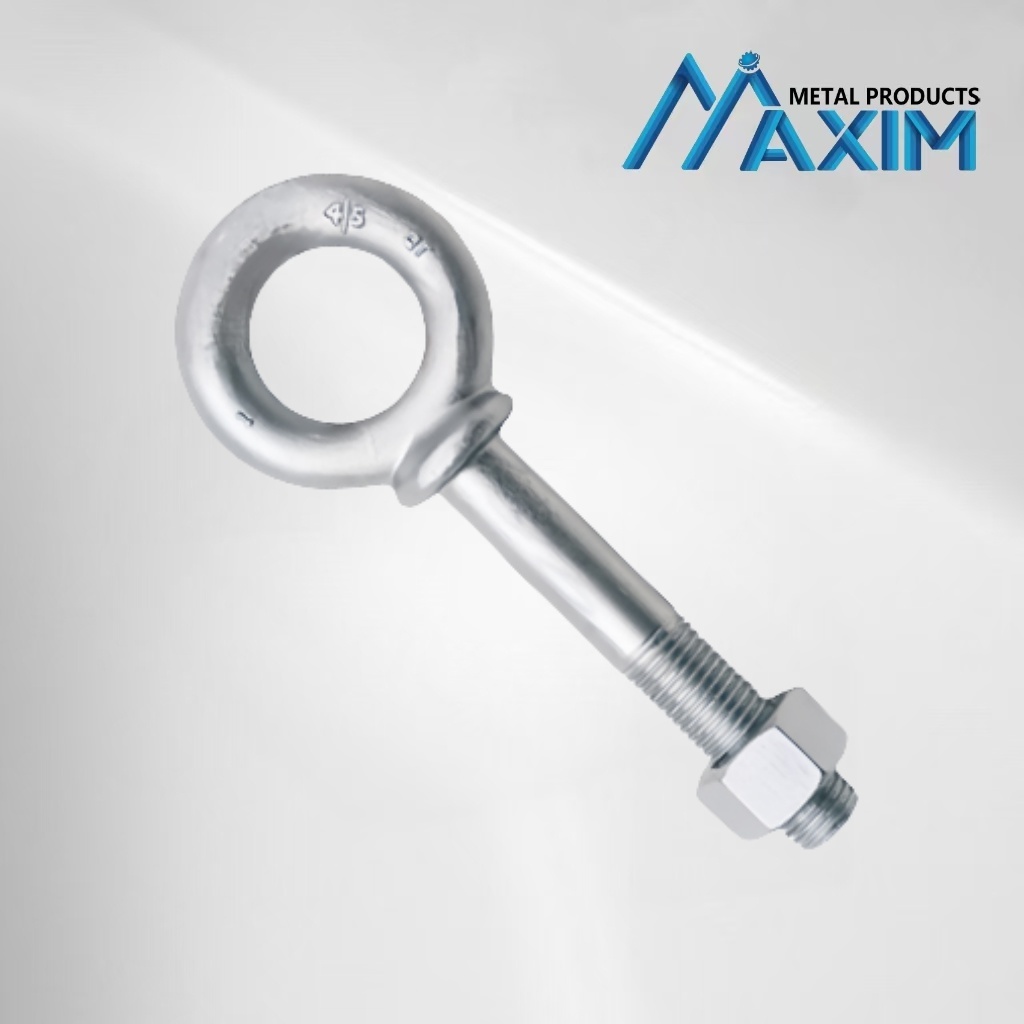

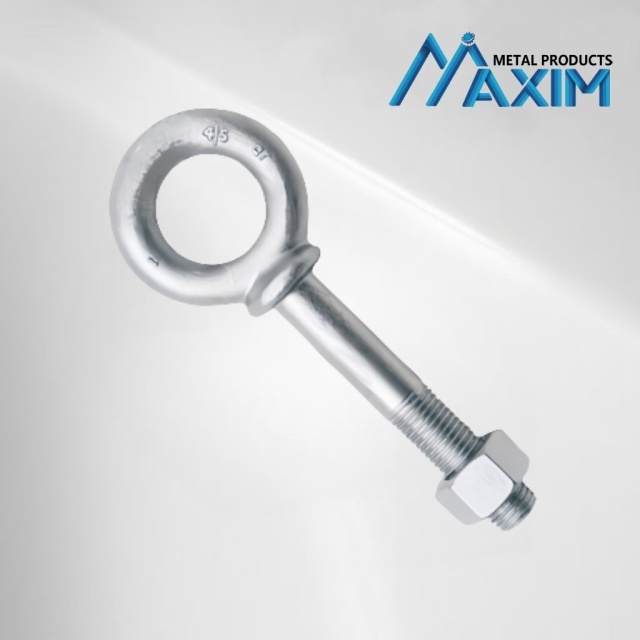

Galvanized Shoulder Type Eye Bolt G277 with Nut Drop Forged Eye Bolt
Our stainless steel forged shoulder eye bolts are drop forged for added strength and durability. Type 316 stainless steel is the best choice for marine applications and industrial applications where corrosive chemicals or materials may be used. Eye bolts with shoulders should always be used for angular lifts.
Includes eye bolt, nut and washer.

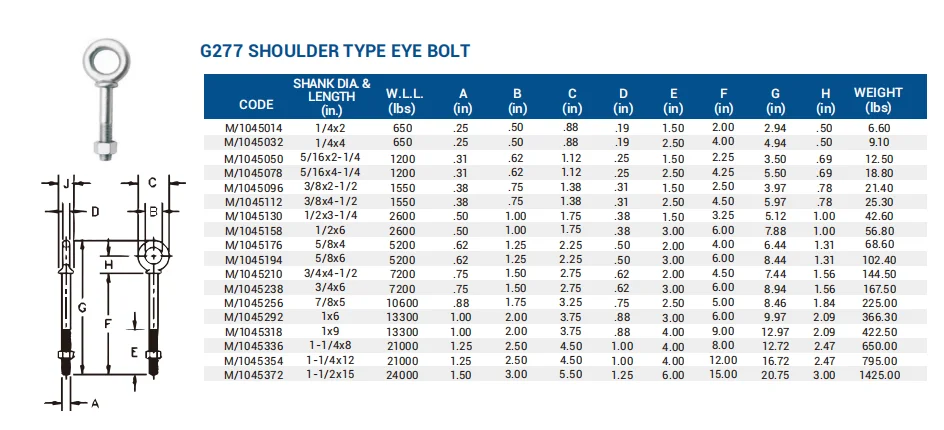

Specifications:
* Shank length: 4"
* Working load limit: 500 lbs.
* Assembly break strength: 2,000 lbs.
* Brand part number: 277S-6100
* Diameter: 1/4"
* Material: Steel
* Product weight: .05 lbs.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
