Name: Single Sheave Snatch Pulley Block With Hook
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

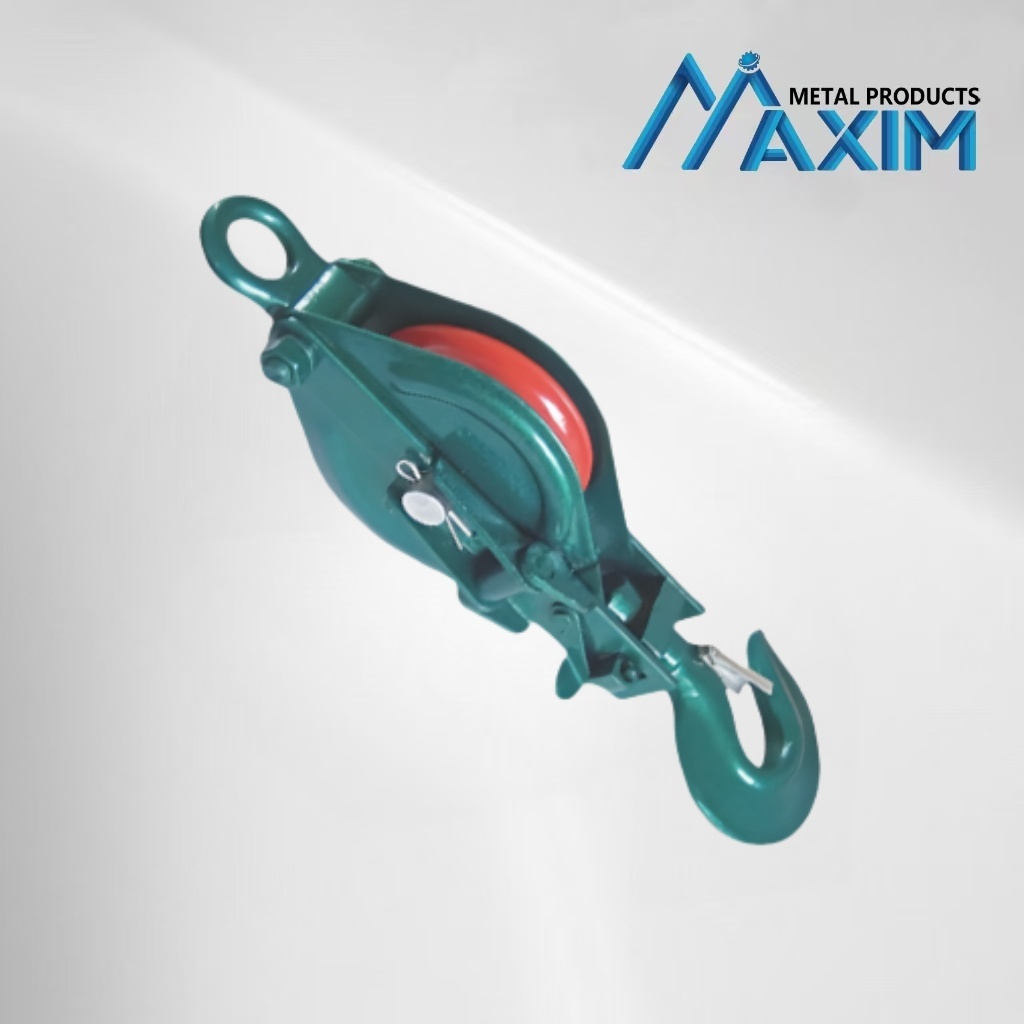

Single Sheave Snatch Pulley Block With Hook

Single Sheave Snatch Pulley Block With Hook is Widely Used in American, Asian as well as the Mid East. It is one kind of most popular Cable Pulley Block all over the world. The size is from 2"-16".

Description

4 Ton Light Type Swivel Hook Single Sheave Snatch Pulley Block

Single Sheave Snatch Pulley Block With Hook is Widely Used in American, Asian as well as the Mid East. It is one kind of most popular Cable Pulley Block all over the world. The size is from 3"-18".

360° ROTATE HOOK: Hook with safety lock can change the rotation angle of hoisting at will, effectively eliminating the rotation force generated in the hoisting process. SAG DESIGN: Sag design makes it easy to connect cables and very easy to check and adjust your wire rope, reducing the pressure on the trailer and making it easier to tow. MECHANICAL ADVANTAGES: Snatch block can reduce the pressure of the winch, play a labor-saving role, and increase the service life of the winch; in addition, the direction of force can also be changed, and the hook can also maintain the correct tension angle to improve safety. WIDE APPLICATIONS: Forged snatch blocks provide a smooth, constant pull with double the traction, ideal for towing and recovery or lift applications, and help you position your vehicle for loading when you need a turn or lean pull. SPECIFICATIONS: 4.5" pulley is suitable for 1/2" wire rope, better compatibility, protect the rope from damage; can lift and tow heavy objects, ideal for towing heavy vehicles.

NOTE: *Special marks can be made according to customers' requirements. *Special package can be made according to customers' requirements. *We also offer steel wire rope, wire rope thimble, wire rope sleeve, high quality Chains, connecting link, eye ling hook, eye self locking hook, master link, master link assembly, welded master link, welded master link assembly, omega link, etc.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

Specifications:

Material: alloy steel
Finish: powder coating

Safety Factor: 4:1

Size:3" -16"

Color: green
Other size can be available.

High Quality Forged Alloy Steel Open Type Pulley Block Double Sheave With Hook

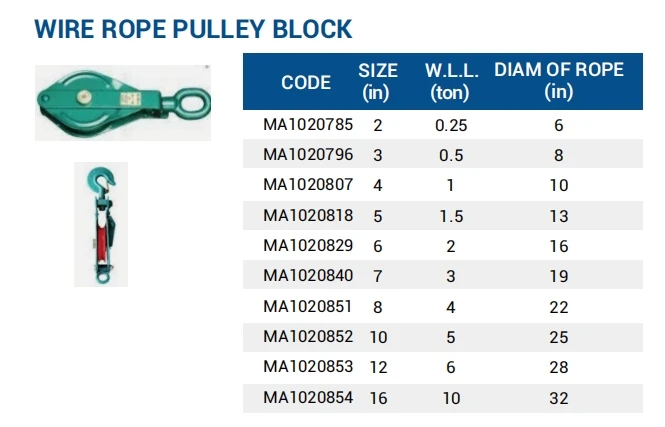

CODE	SIZE (inch)	W.L.L. (ton)	DIAM OF ROPE (in)	WEIGHT (kg)
MA1020903	3	0.5	8	1.1
MA1020930	8	4	22	12.5
MA1020959	10	5	25	15
