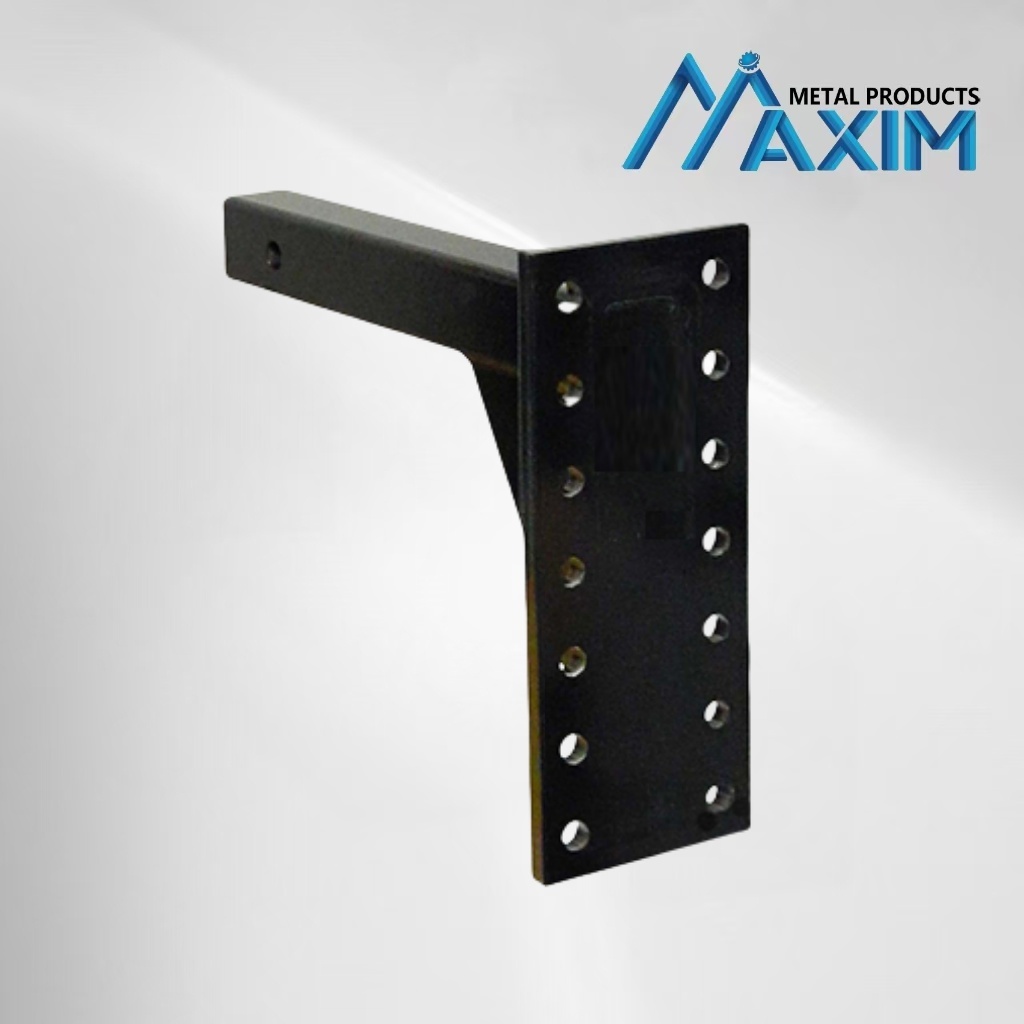

Durable Solid Shank Bolt On Trailer Pintle Hitch Plate For 2" Receiver
With this Pintle Hook Mounting Plate, the Towing options can vary with 5 different positions AND it is easy to adjust with these simple locking pins. It's exterior is powder coated black to look just as smooth as it feels. This pintle mounting plate fits 2.5" Receivers and would be a great addition to any trailer.
Heavy-duty solid steel construction with painted finish built tough to handle extreme tow, road, and weather conditions for a long service lifetime.Solid steel shank, thick plate, welded flange, and 8-hole mount provide maximum tow performance and mounting security with minimal bending, torsion, and deflection.
Product Specifications
· Tow capacity: 5tons (10,000lbs).
· Hitch Type: Pintle
· Hitch Size: 2".
· Pin Hole Size: 5/8"diam.
· Shank Length: 8-1/2".
· Plate Size: 7-1/4" long x 5" wide x 7/16" thick.
· Plate Hole Quantity: 8 holes.
· Plate Hole Size: 17/32"diam.
Features:
Widely used in trailer conditions and towing conditions
Easier to be connected with pintle hook,lunette ring, hitch balls,trailer eyes, mount receiver,trailer coupler,lock and pins, receiver munt, channel bracket,other trailers,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Zinc plating and black or colorful painting can be available.
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.Maintain adequate vertical down (tongue) load to have control of the trailer (generally 10%), but do not exceed the above rated capacities. Other steps and inspections are also required.
