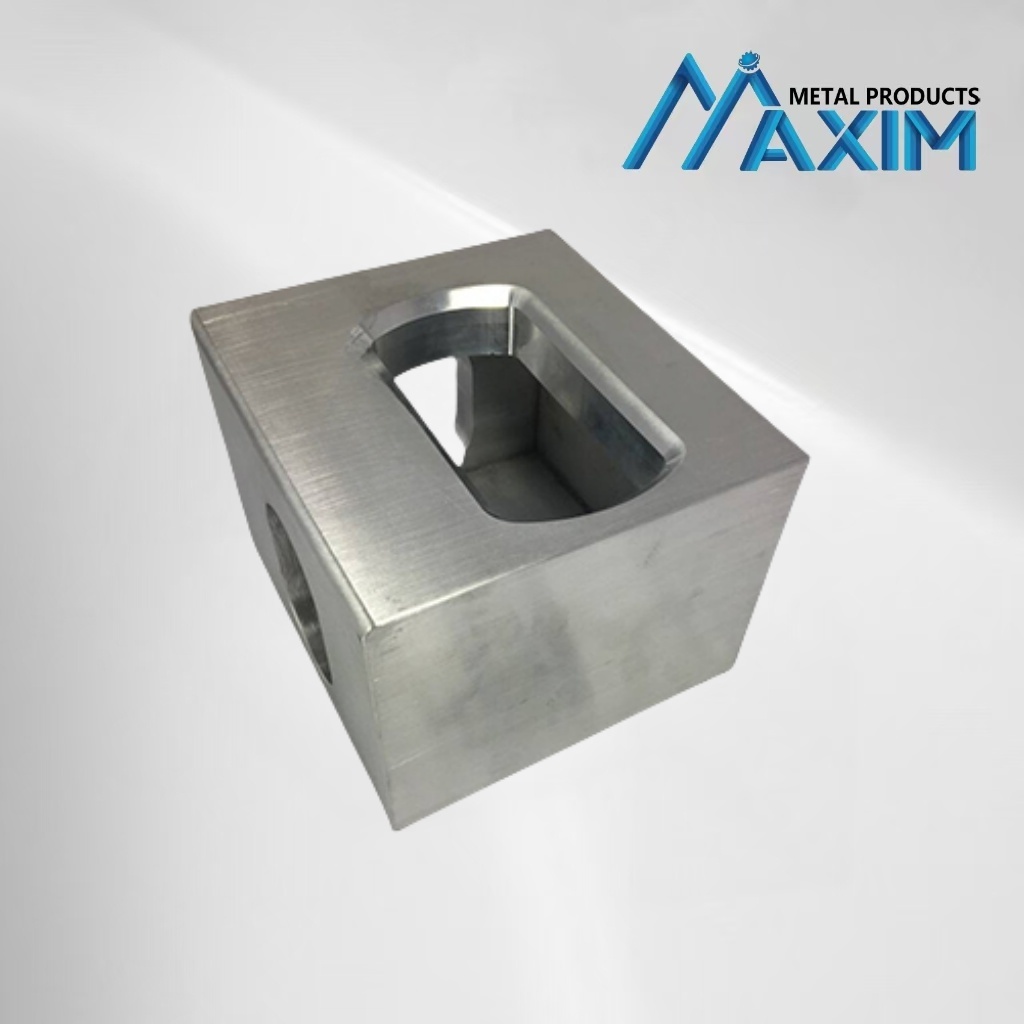

Casting Steel Corner ISO 1161 Stainless Steel Container Corner
Stainless steel container castings corner come in this complete set of 8 pieces.
200 lbs per set or 25 lbs. each
Castings are stamped Bottom Left ~BL, Bottom Right ~BR, Top Left ~TL, Top Right ~ TR
It is especially made for lifting containers from the lower fitting points.
Large eye for easy connection to lifting lugs, container twistlocks,container eyes, container lashing bars,bridge , etc.
Full traceability
Proof tested and certified
it should always be used with, either a 2 or 4 point spreader beam / spreader bar.It is available as a straight and turned 45 degrees. To avoid the risk of disengagement during use, a tolerance of +- 15 degrees from nominal should be adhered to.We recommend that you use a spreader and lift from the bottom when the container is loaded as this is where the container is strongest.
If a two point connection spreader is used the WLL is to be reduced due to the angles.
A 4-leg sling is also possible to use but then you need to:
Make sure the hooks and chains can move free to the intended load angles without obstruction.
Only lift in the bottom corners.
Features:
Widely used in container lifting conditions
Easier to be connected with container twistlock, container hooks, container lugs,etc
Stronger performance during working
Specifications:
Process: casting
Material: steel
Finish: hot dip galv
Other size can be available.
|
SPECIFICATION FOR ISO 1161 stainless steel container corner
|
|
MATERIAL
|
SCW480
|
|
WEIGHT
|
11KG
|
|
SPEC
|
8PC AS ONE SET; 178*162*118(TR,TL,BR,BL)
|
|
PACKAGE
|
100PCS/PALLET, 20PALLET/20FT CONTAINER
|
|
STANDARD
|
ISO-1161
|
