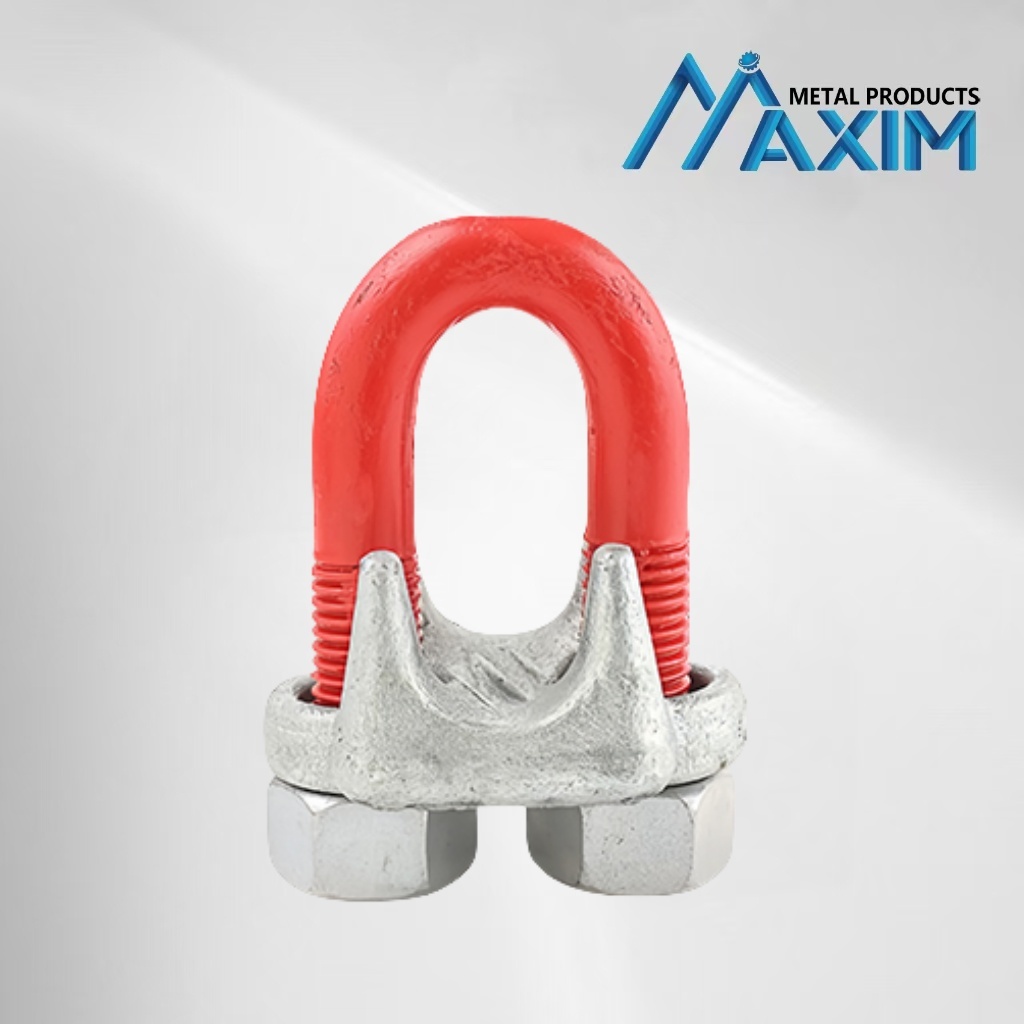

Drop Forged Steel Rope Fittings US Type G450 Wire Rope Clip for Rigging
Size:1/8-1.5/8 Inch
Surface:Galv. or Hot Dipped Galv.
Package:Carton or Polybag
Technology:Drop Forged
Standard:Us Type
Each base has a Product Identification Code (PIC) for material traceability, a size forged into it.
Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8” - 7/8”
sizes, and 90% for sizes 1” through 3-1/2”. Entire Clip is Galvanized to resist corrosive and rusting action. Sizes 1/8” through 2-1/2” and 3” have forged bases. All Clips are individually bagged or tagged with proper application instructions and warning information. Clip sizes up through 1-1/2” have rolled threads. Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by B30.26.
