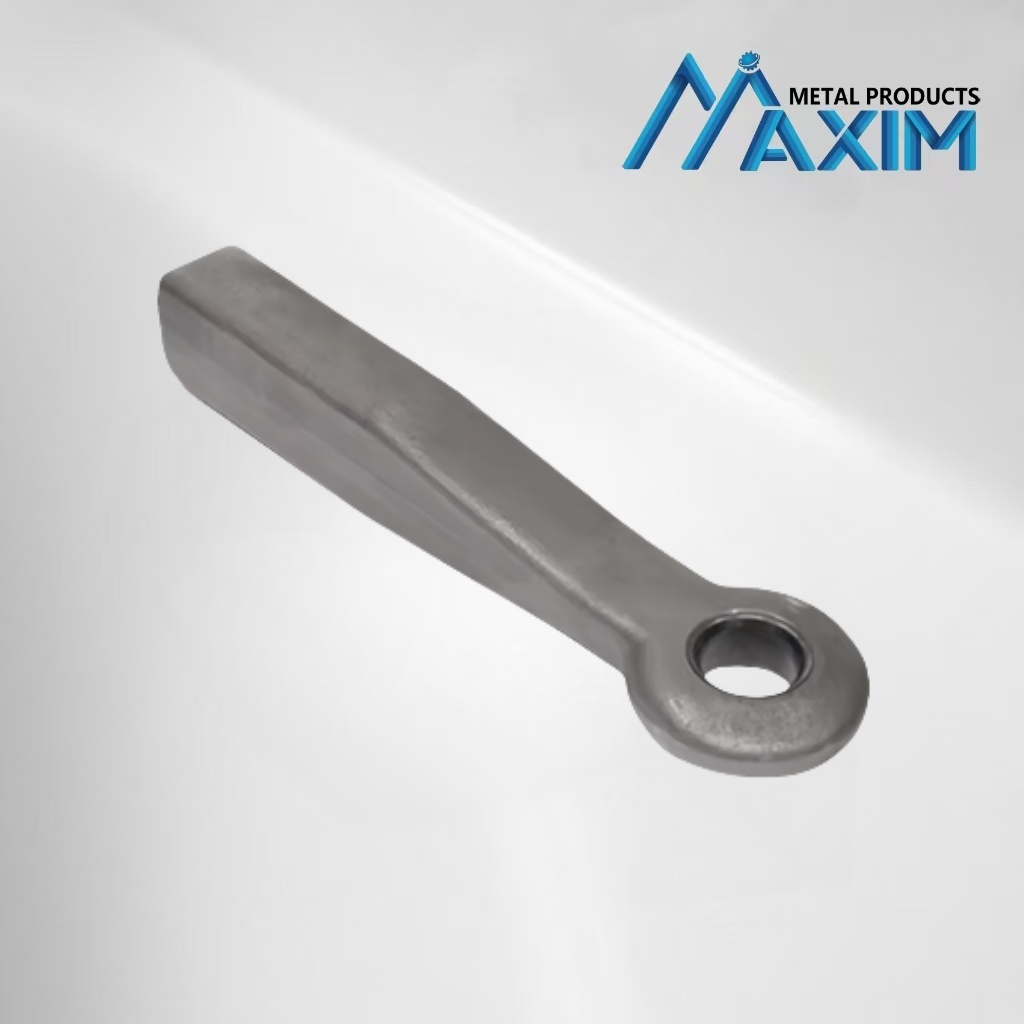

Forged Tractor Trailer Hitch Weld On Towing Eyes Draw bar Accessories
Swivel weld-on hitch eyes Suitable to be welded to drawbars of agricultural trailers Suitable for trailers and interchangeable equipment working with heavy loads and in uneven conditions to help prevent potential overturns.
Feature:
1) Material: Carbon steel/Alloy steel
2) Color: Red, Black, Silver, Grey etc
3) Dimension: OEM or ODM
4) Process: Forging 5) Capacity: 30Ton
6) Eye Size: 30mm, 40mm, 50mm,60mm,70mm etc..
7) Application: Trailer/Truck/Tractor/Machinery/Car
8) Type: Straight, Cranked, Swivel, Bolted etc.
Specifications：
D-Value: 190kN
Dimensions: 65mm Wide x 60mm High x 375mm Shank
Weight: 10.5kg
Static Vertical Support Load: 1000kg
DC-Value: 90kN
V-Value: 30kN
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.
Tractor Trailer Hitch Weld On Towing Eyes Drawbar Accessories
|
|
|
Item Weight
|
|
|
11.7kg
|
