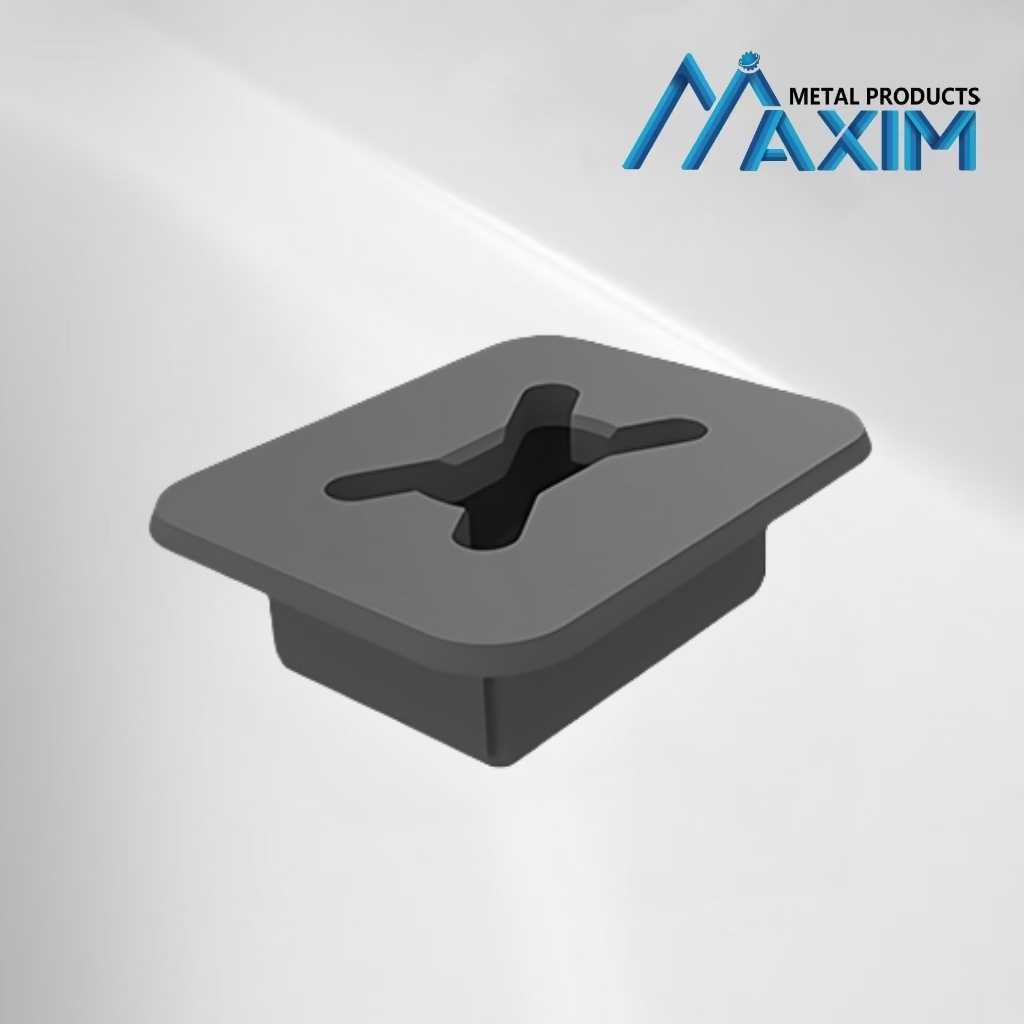

Weldable Socket With ISO Hole And Elephant Foot

Weldable socket with ISO hole and elephant foot slots to be used with twistlocks for container lashing or lashing chains / webbing straps for trailer and car lashing. The pot secures watertightness Single type.
  • Weldable Socket With ISO Hole And Elephant Foot

Description

High Quality Container Weldable Socket With ISO Hole And Elephant Foot

Weldable socket with ISO hole and elephant foot slots to be used with twistlocks for container lashing or lashing chains / webbing straps for trailer and car lashing. The pot secures watertightness Single type.
The elephant foot lashing point with collar is a deck fitting with pot underneath which gets welded in the deck of a vessel. They are used to in combination with an elephant foot webbing, lashing chain, speed king or turnbuckle with elephant foot.

Specification:
Material: Weldable steel
Weight: 23,5kg
SWL Container: 150 kN
BL Container: 300 kN
SWL Elephant ft: 100 kN
BL Elephant ft: 200 kN
