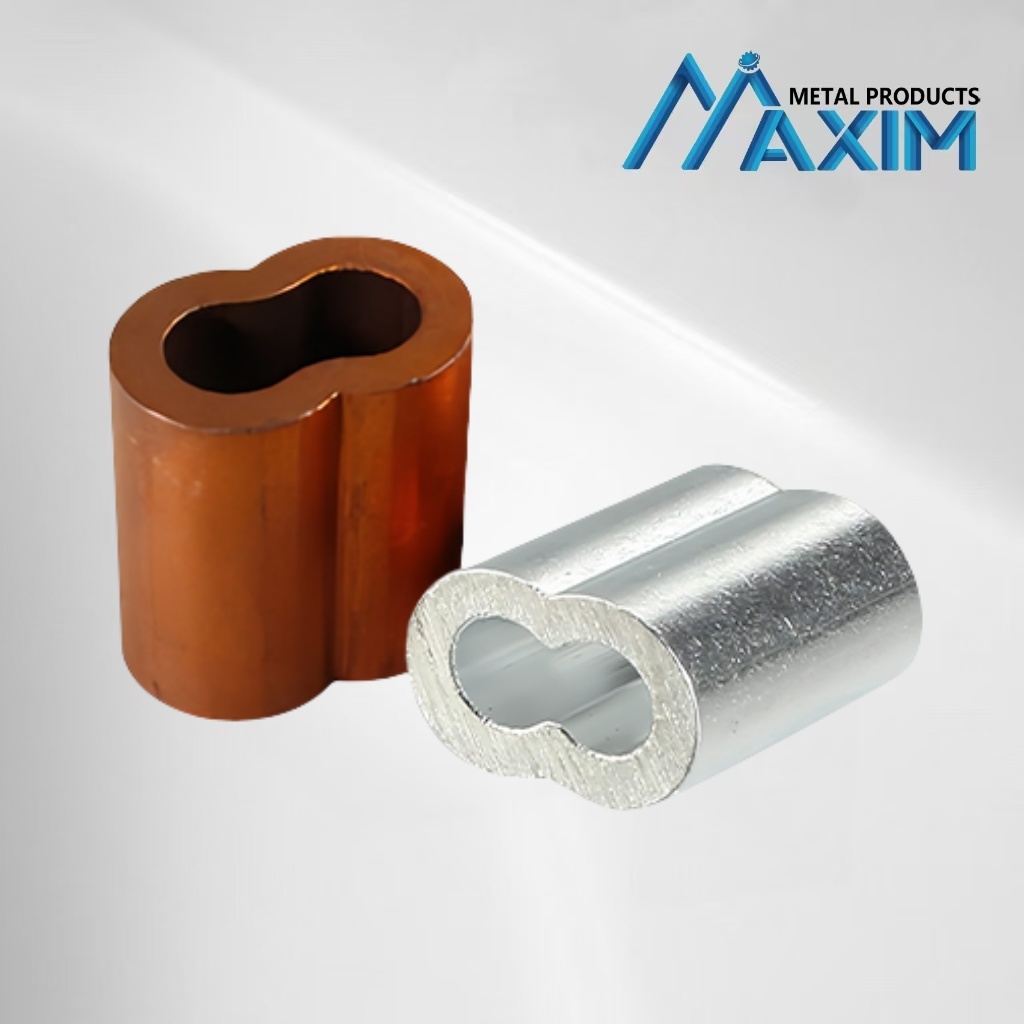

Wire Rope Aluminum/Copper Hourglass Sleeves

Name: Wire Rope Aluminum/Copper Hourglass Sleeves
Brand: Qingdao Maxim Metal Products Co.,ltd
Availability: InStock
Rating: 5 (1 reviews)

Ferrules, when properly applied, are capable of holding the rated breaking strength of the rope to which they are applied. Crimping sleeves are available in copper for stainless steel wire and aluminium for galvanised wire.

Get A Quote

Description

Heavy Duty High Quality Wire Rope Aluminum/Copper Hourglass Sleeves

Crimping sleeves are available in copper for stainless steel wire and aluminium for galvanised wire.

The given size is the wire diameter.

Ferrules, when properly applied, are capable of holding the rated breaking strength of the rope to which they are applied.
However, to determine the exact holding strength, pull testing is essential prior to use.
This step insures the proper selection of materials, the correct swaging procedure, and an ample margin of safety for the intended use.Aluminium oval sleeves are extruded from a high quality aluminium alloy, and heat treated for excellent cold forming or swaging qualities.Return eye splice using safety aluminium sleeves will attain 95%of improved plow wire rope catalog strength when properly swaged.

Specifications:

Size:1/4"

Package:Carton,Pallet

Product Name:Aluminium Hourglass Sleeves for Wire Rope

Using:Wire Rope Fitting

Transport Package:Carton, Pallet

Specification:1/4′′-1-1/2′′

Heavy Duty Forged High Quality Wire Rope Aluminum Hourglass Sleeves
CODE	SIZE	WEIGHT(kgs/1000pcs)
MA1040364	1.19	0.276
MA1040116	1.58	0.433
MA1040564	1.98	0.645
MA1040332	2.38	1.45
MA1040108	3.18	2.7
......	......	......
MA1040716	11.11	52
MA1040102	12.7	80.15
MA1040916	14.29	99.88
MA1040508	15.88	139.78
