Wire Rope Steel Swaging Sleeves

Wire rope swage sleeves and fittings are used to terminate the ends of wire ropes to prevent fraying, and to securely form lifting eyes in wire ropes. Designed for low temperature toughness.
  • Wire Rope Steel Swaging Sleeves

Description

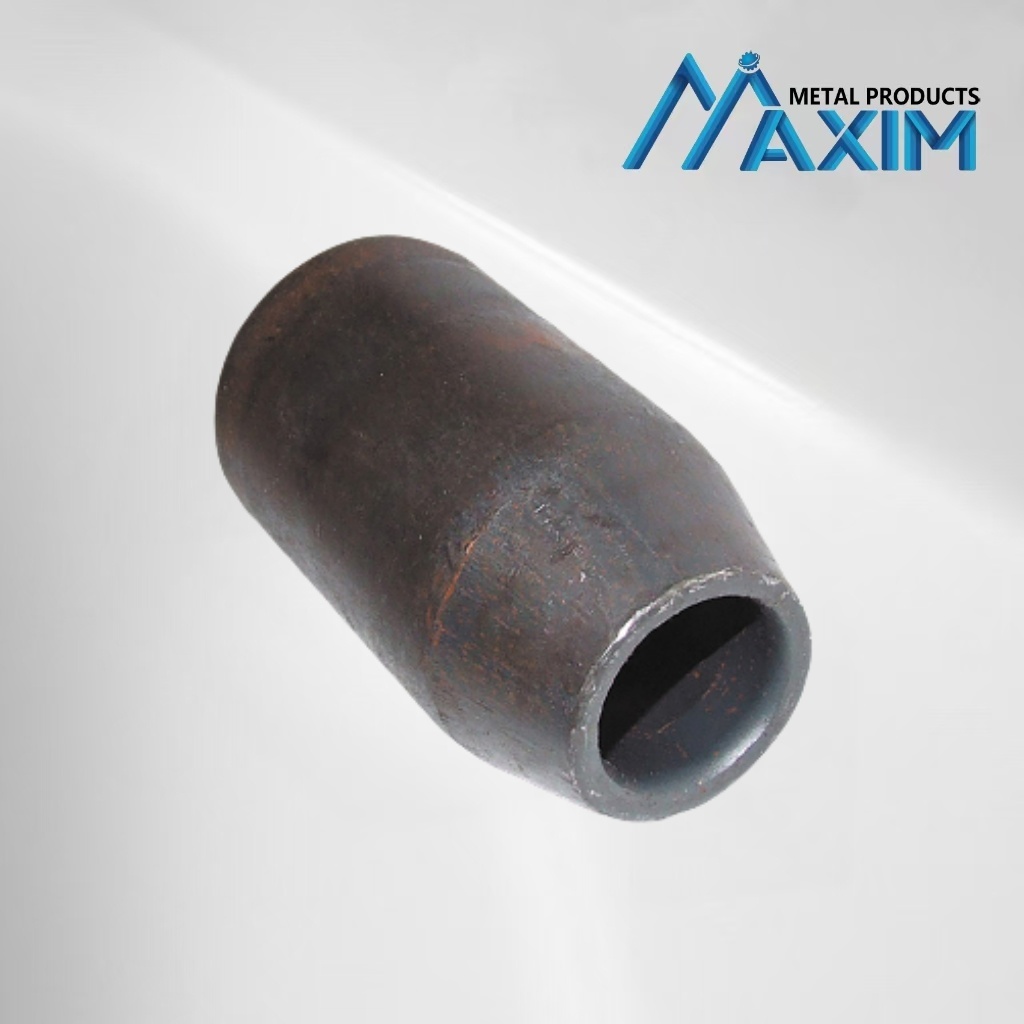

Low Carbon Steel Self-Colored Standard Wire Rope Steel Swaging Sleeves

Wire rope swage sleeves, sometimes referred to as cable ferrules or duplex / crimp sleeves, are used to form eyes on the end of wire ropes. Wire rope swage sleeves are a more secure and more permanent alternative to wire rope clips. Cable swage fittings and sleeves are available in a variety of materials to fit any wire rope rigging application:
Material:Aluminum,
Finish:Self-color
Type:Aluminium Sleeves
Place of Origin:Shandong, China
Brand Name:MAXIM/CUSTOMIZABED
Model Number:Aluminium Sleeves
Surface:Self-color
Name:Aluminium Sleeves
Standard:U.S. Type
Size:1/8'
1. The crimping sleeve is made of aluminum alloy. Easy to install. Once crimped they will not move.
2. These crimping sleeve are suitable for dog ropes, clothesline or or anything else that require strong rope.
3. How to use: Slide the wire rope into the crimping loop sleeve, then pass the end of the rope back through the other ferrule,and lock the crimp loop with pliers or compression tools to get what you need.
4. Crimping sleeves are a kind of fastening tool used to press wire ropes. Combination of aluminum sleeve and steel wire rope to increase firmness. It has the advantages of silver beautiful appearance, strong tension, and not easy to damage.

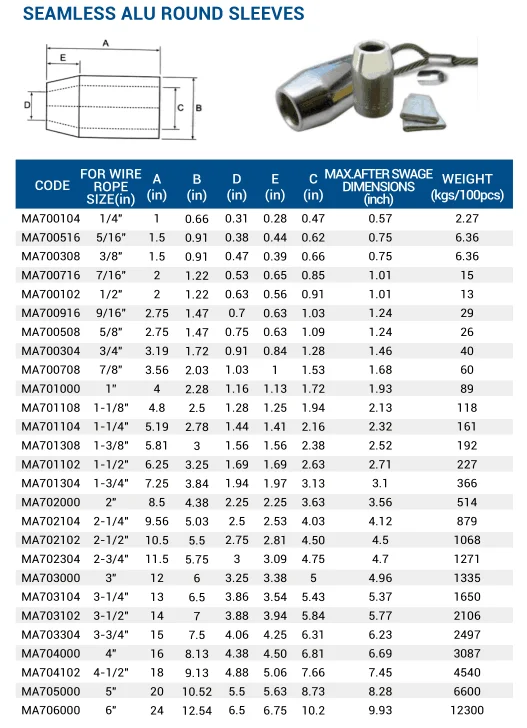

        CODE
              SIZE(in)
            MAX.(inch)
       WEIGHT(kgs/100pcs)
    MA700104
                1/4"
                 0.57
               2.27
    MA700516
                5/16"
                 0.75
               6.36
    MA700308
                 3/8"
                 0.75
               6.36
