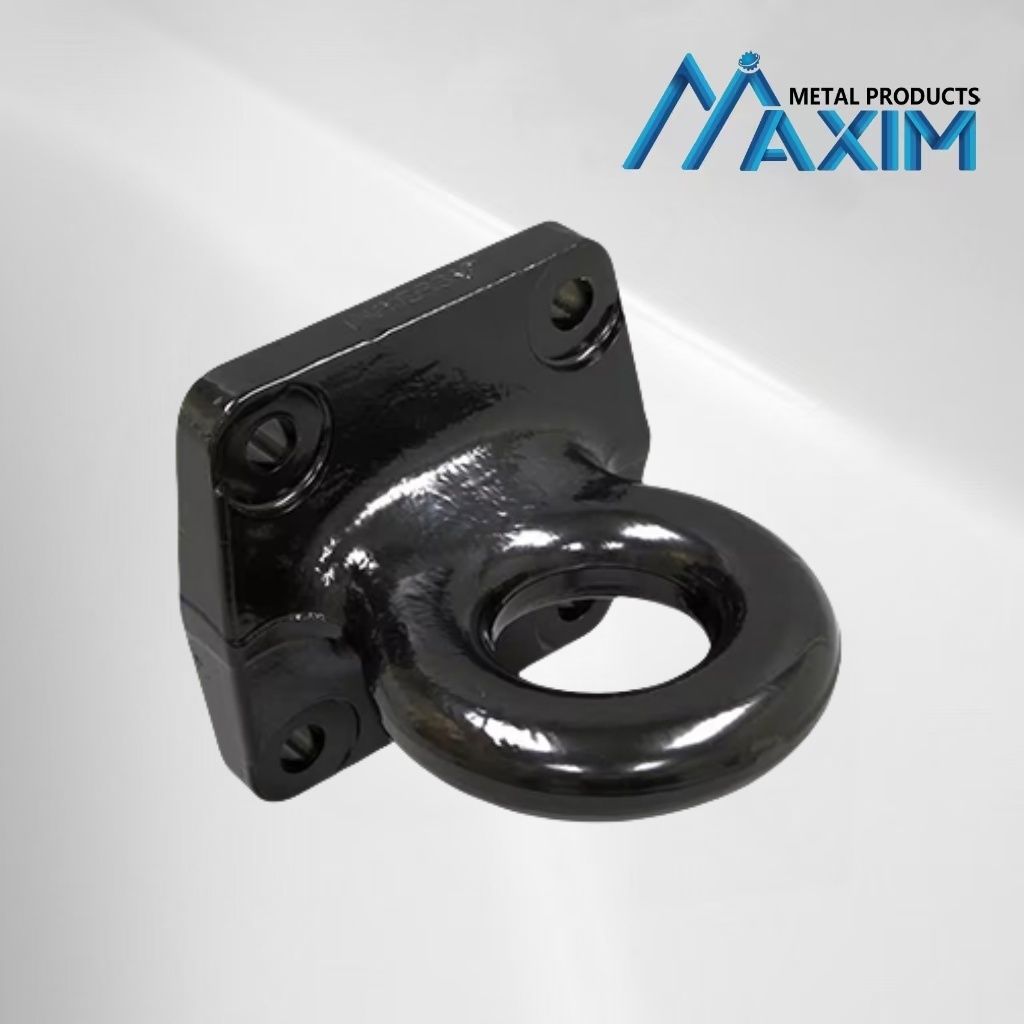

Heavy Duty Forged Towing Trailer Hitch Lunette Ring 4-Bolt Drawbar Rings
This 4 bolt drawbar eye is to the front of your trailer so you can couple to a pintle hook. The back of the base is smooth for flush mounting to flat surfaces. Hardware included. Powder coated steel resists rust.
It is for the die-hard off road guys that don't mind a bit of noise in the hitch. It is a very easy to connect option and extremely heavy duty. It does not fully articulate, so the trailer will not be able to tip all the way over. We would recommend this for most off road scenarios. Please note the the tow vehicle must be heavier than the trailer so that the trailer won't tip the tow vehicle over in extreme situations.
Features:
Lunette ring is designed to couple with a pintle hitch
Bolt-on installation
Pre-drilled mounting holes provide simple installation
Hardware is included
Smooth backside allows for flush mounting to flat surfaces
Black powder coated steel is durable and resists rust and corrosion
Specs:
Weight capacity: 42,000 lbs
Diameter of lunette ring:
Inner: 2-1/2"
Outer: 5-1/2"
Distance between mounting holes center to center: 4-1/2"
Mounting hole diameter: 5/8"
Mounting base dimensions: 6-5/8" long x 6" tall
Limited lifetime warranty
CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the oackage understanding that the purchaser and/or user are thoroughly familiar with their proper use.
This product has a rated WLL but is subject to the correct with receiver tube and vehicle.
This receiver mount towing eye/tow hooks/pintle hooks are ideally suitable for car trailer, ship&boeat trailer, truck trailer ,etc.
